Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger side body side trim panel to the vehicle.
  2. Position the trim panel. Press on the trim panel in order to engage the retaining clips.
  3. Install the passenger side rear corner trim panel. Refer to Trim Panel Replacement - Right Rear Corner .
  4. Install the rear passenger seats as needed. Refer to SEAT REPLACEMENT - REAR BENCH .

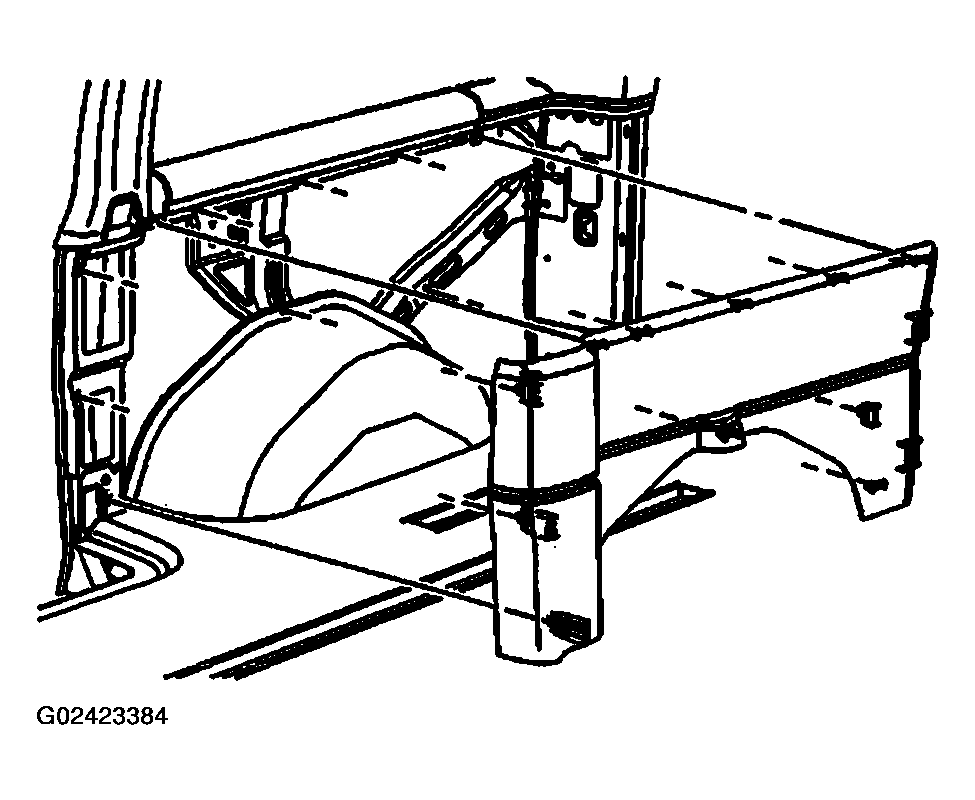

    Fig 1: Installing Right Body Side Trim Panel
    G02423384Courtesy of GENERAL MOTORS CORP.
