Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the sunshade from the support.
    Fig 1: Removing Sunshade From Support
    G02423355Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws retaining the sunshade to the vehicle.
  3. Disconnect the electrical connector, if equipped.
  4. Remove the sunshade from the vehicle.

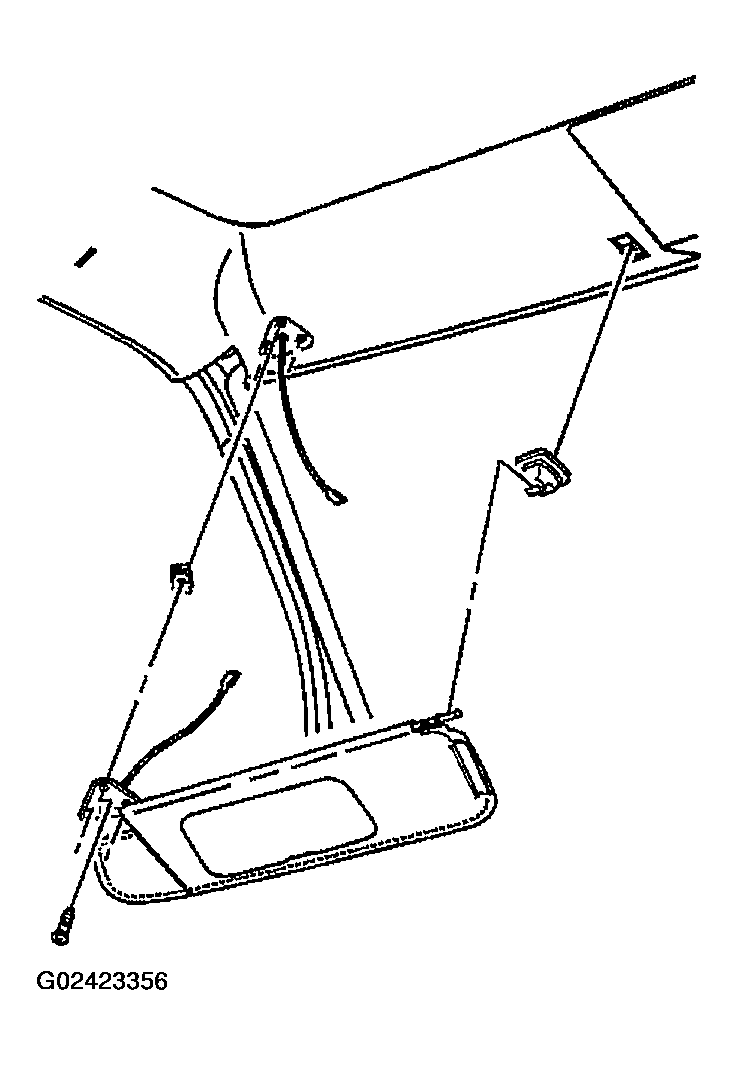

    Fig 2: Disconnecting Electrical Connector & Removing Sunshade
    G02423356Courtesy of GENERAL MOTORS CORP.
