Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats. Refer to SEAT REPLACEMENT - REAR BENCH .
  2. Remove the front headliner. Refer to Headliner Replacement - Front .
  3. Remove the coat hooks. Refer to Coat Hook Replacement .
  4. Remove the left rear upper garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper .
  5. Remove the rear door garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper .
  6. Remove the rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner .
  7. Remove the upper seat belt anchor bolts.
  8. Disconnect the electrical connectors.
  9. Remove the headliner from the vehicle through the rear doors

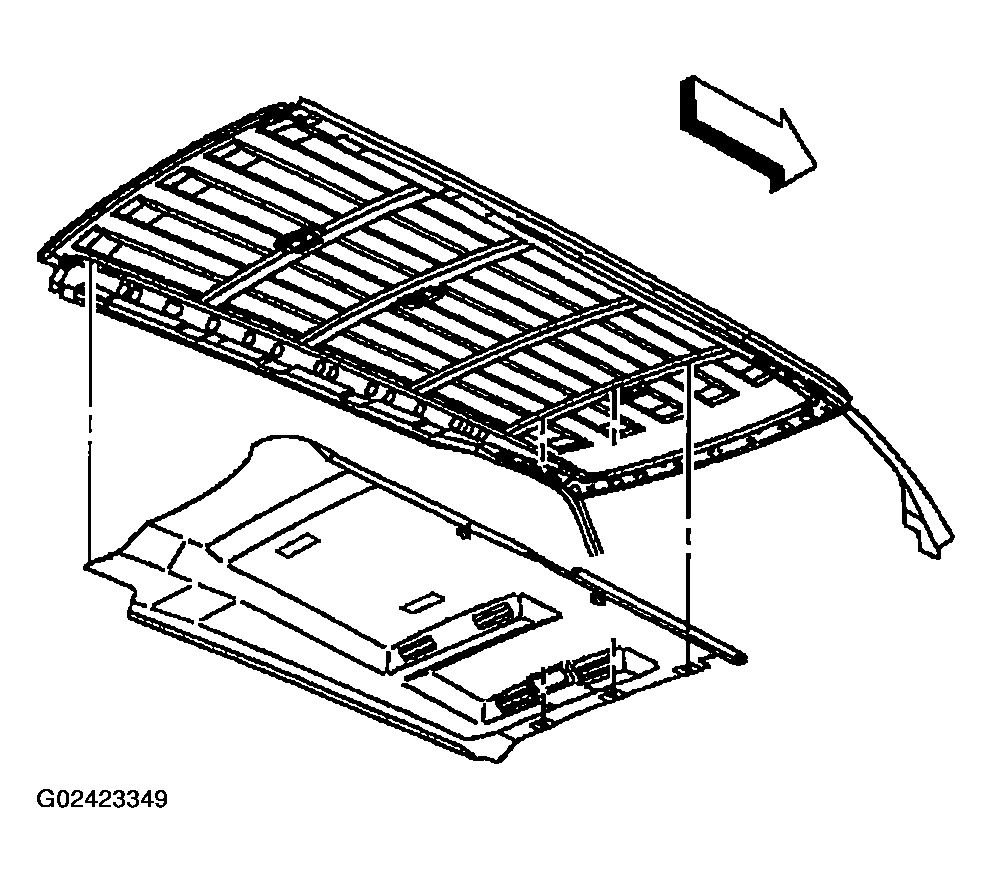

    10. Fig 1: Removing Rear Headliner
    G02423349Courtesy of GENERAL MOTORS CORP.
