Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headliner to the vehicle.
  2. Connect the electrical connectors.

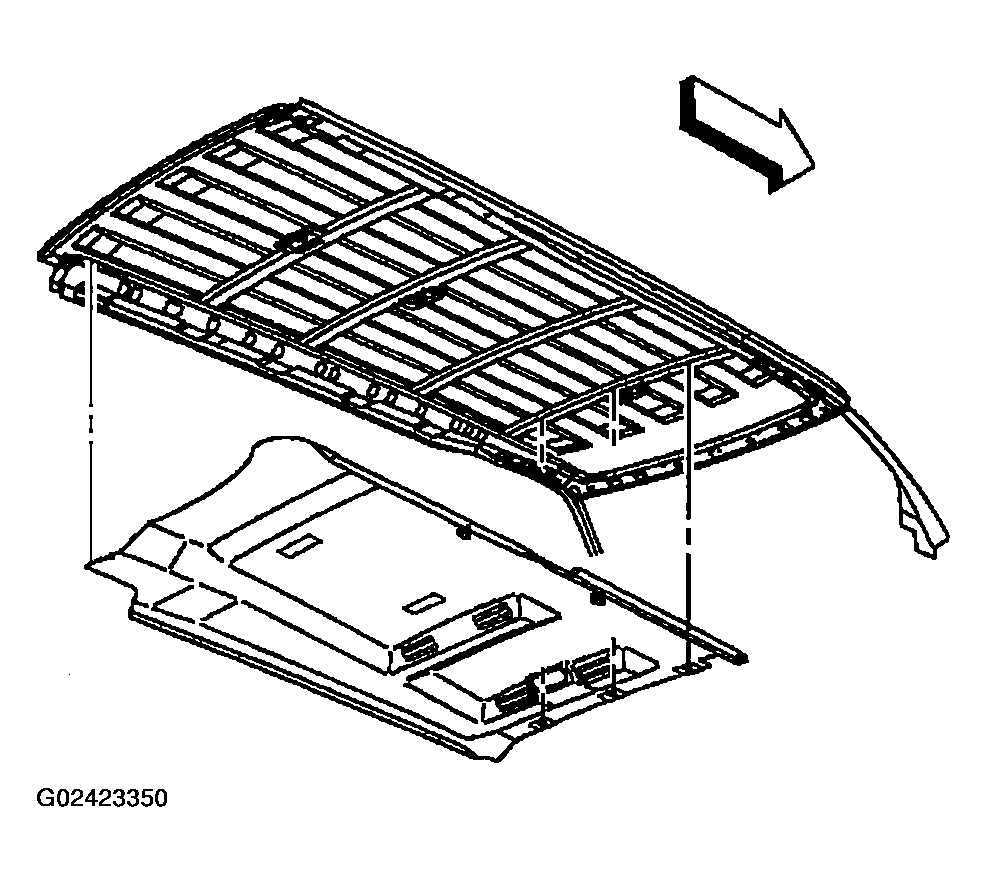

    3. Fig 1: Installing Rear Headliner
    G02423350Courtesy of GENERAL MOTORS CORP.
  3. Install the coat hooks. Refer to Coat Hook Replacement .
  4. Install the left rear upper garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper .
  5. Install the rear door garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper .
  6. Install the rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner .
  7. Install the upper seat belt anchor bolts.
  8. Install the front headliner. Refer to Headliner Replacement - Front .
  9. Install the rear passenger seats. Refer to SEAT REPLACEMENT - REAR BENCH .
