Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .
  2. Remove the passenger side body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  3. Grasp and gently pull the passenger side front corner garnish molding down in order to disengage the retaining clips.
  4. Slip the seat belt through the slot in the passenger side front corner garnish molding.
  5. Remove the passenger side front corner garnish molding from the vehicle.
  6. Inspect the passenger side front corner garnish n molding for broken or missing retaining clips. ) Replace the clips as needed.

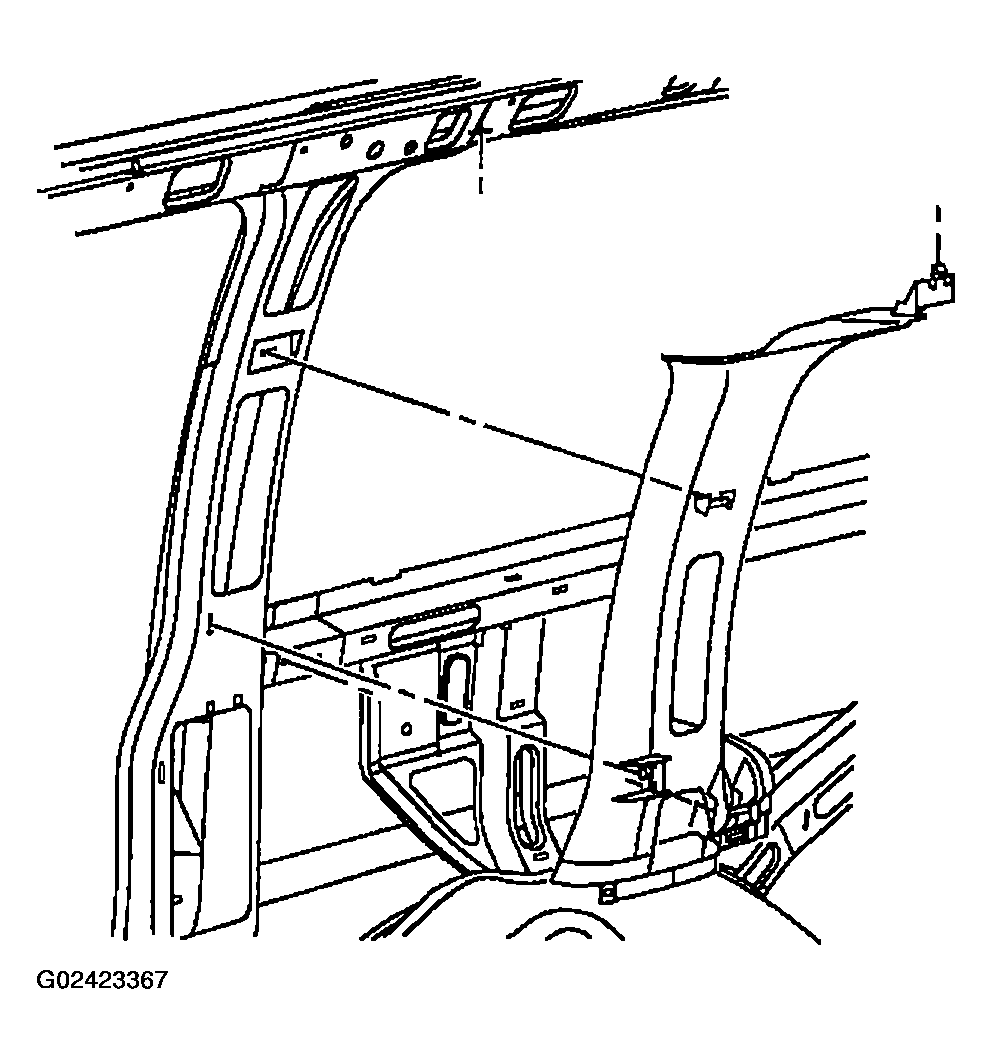

    7. Fig 1: Removing Right Side Front Garnish Molding
    G02423367Courtesy of GENERAL MOTORS CORP.
