Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger side front corner garnish molding to the vehicle.
  2. Slip the seat belt through the slot in the passenger side front corner garnish molding.
  3. Press on the passenger side front corner garnish molding in order to engage the retaining clips.
  4. Install the passenger side body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  5. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .

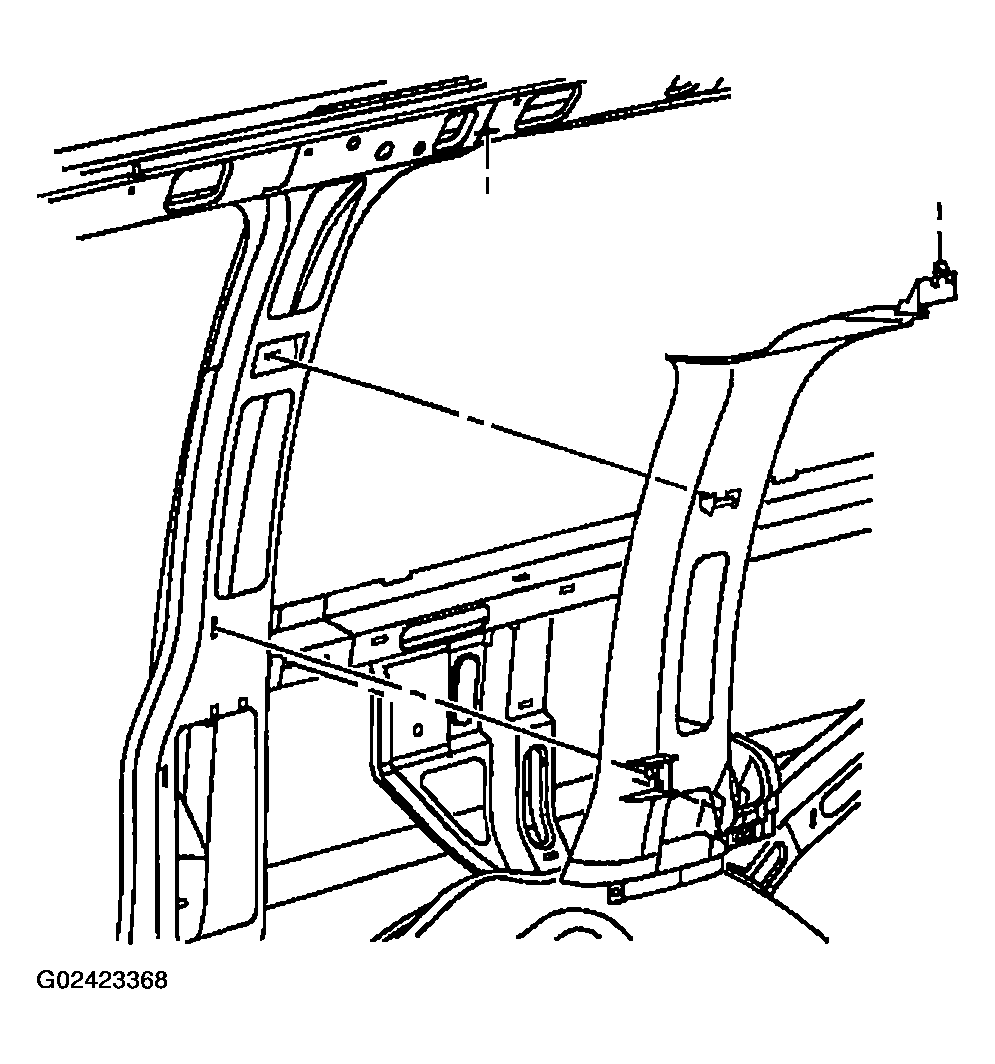

    Fig 1: Installing Right Side Front Garnish Molding
    G02423368Courtesy of GENERAL MOTORS CORP.
