Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats when needed. Refer to SEAT REPLACEMENT - REAR BENCH .
  2. Remove the passenger side rear corner trim panel, for the passenger side of the vehicle only. Refer to Trim Panel Replacement - Right Rear Corner .
  3. Pull down on the upper corners of the garnish molding (1) in order to disengage the retaining clips.
  4. Pull in order to disengage the remaining retaining clips.
  5. Remove the rear corner garnish molding (1) from the vehicle.
  6. Inspect the rear corner garnish molding (1) for broken or missing clips. Replace the clips as needed.

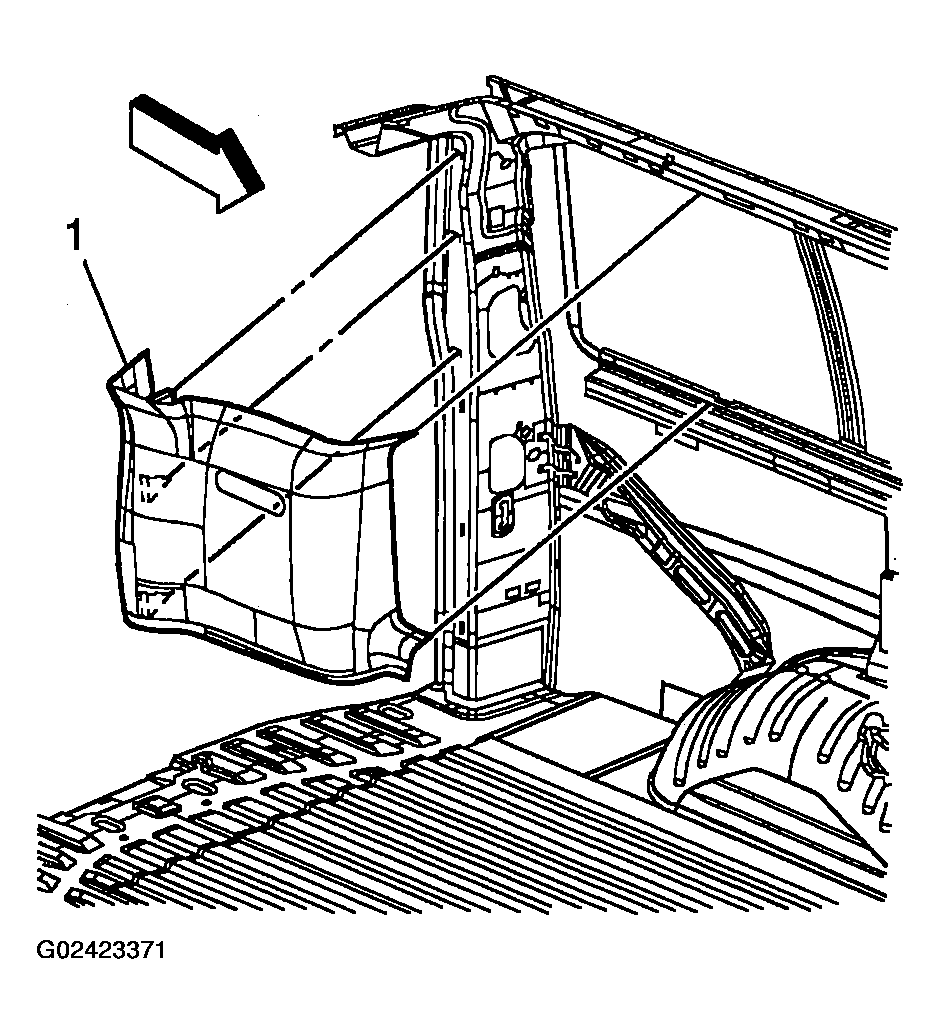

    7. Fig 1: Removing Rear Corner Garnish Molding
    G02423371Courtesy of GENERAL MOTORS CORP.
