Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the coat hook (4) with the backing plate.
  2. Install the coat hook (4) to the headliner (1).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the coat hook screw (3).

    Tighten

    Tighten the coat hook screw to 1.0 N.m (9 lb in).

  4. Install the coat hook access cover (2) to the coat hook (4).

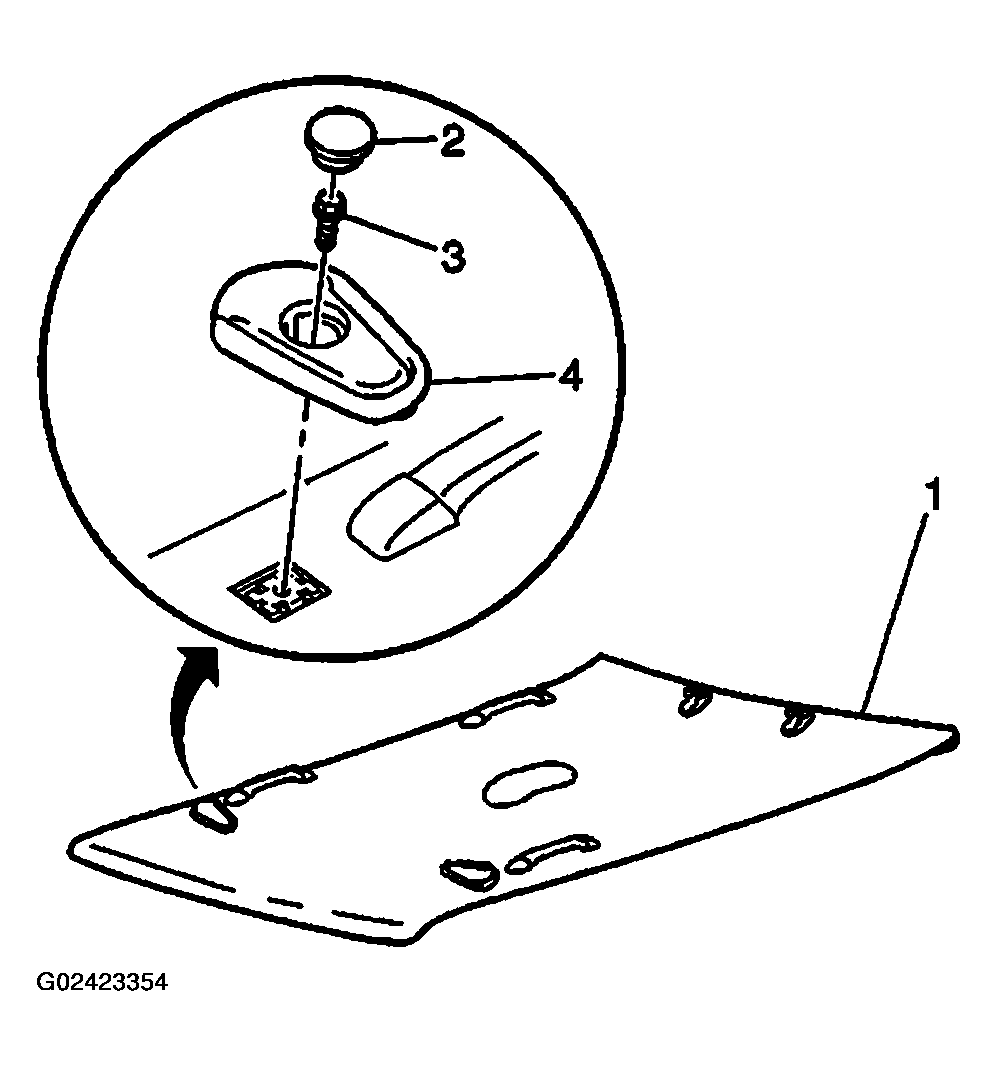

    Fig 1: Installing Coat Hook
    G02423354Courtesy of GENERAL MOTORS CORP.
