Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the push pin retainers (2) that secure the wheel opening molding (1) to the fender extension.
Remove the wheel opening molding (1) from the vehicle.

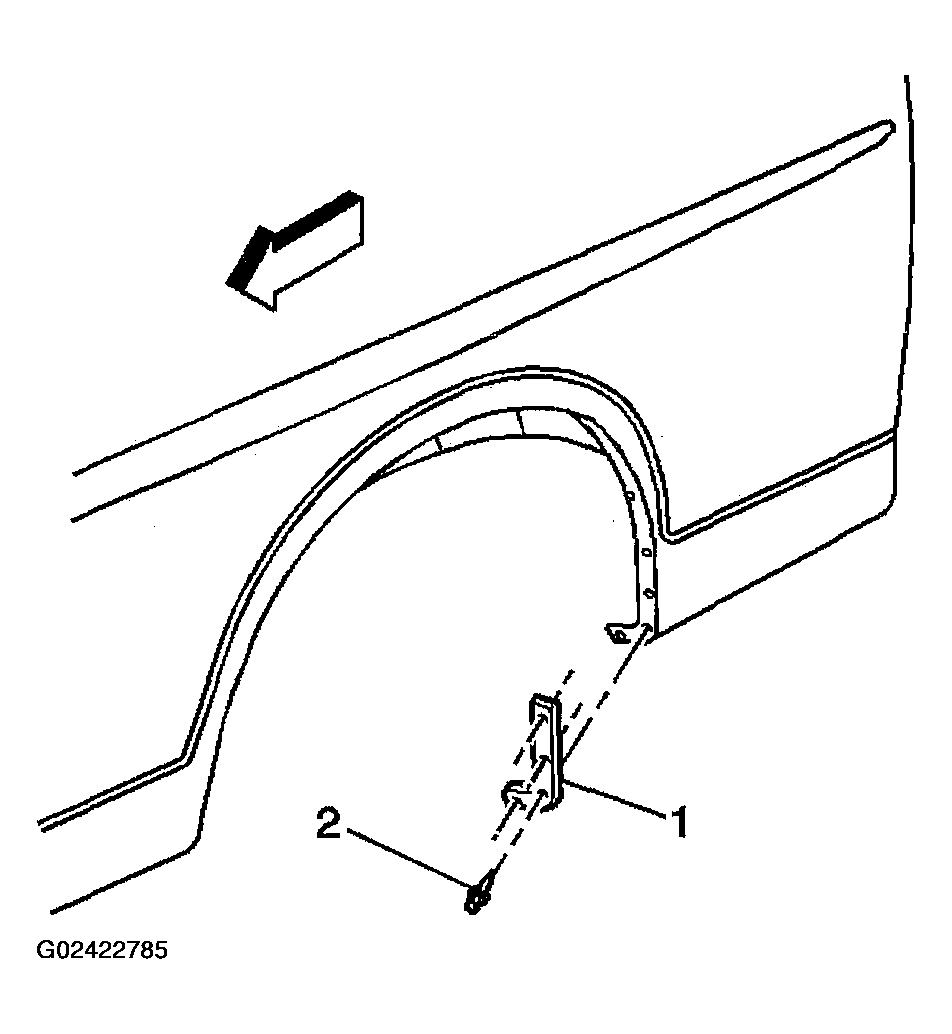

Fig 1: Removing Rear Wheel Opening Molding
Courtesy of GENERAL MOTORS CORP.
