Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the park/turn signal lamp. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (UPLEVEL VEHICLES) or PARK/TURN SIGNAL LAMP REPLACEMENT (BASE VEHICLES) .
  2. Remove the bolts (2) that retain the radiator grille (1) to the radiator support.
  3. Remove the retainers at the top of the radiator grille (1) from the radiator support.
  4. Lift the radiator grille (1) in order to remove the locating pins on the bottom of the radiator grille (1) from the radiator support.
  5. Remove the radiator grille (1) from the vehicle.

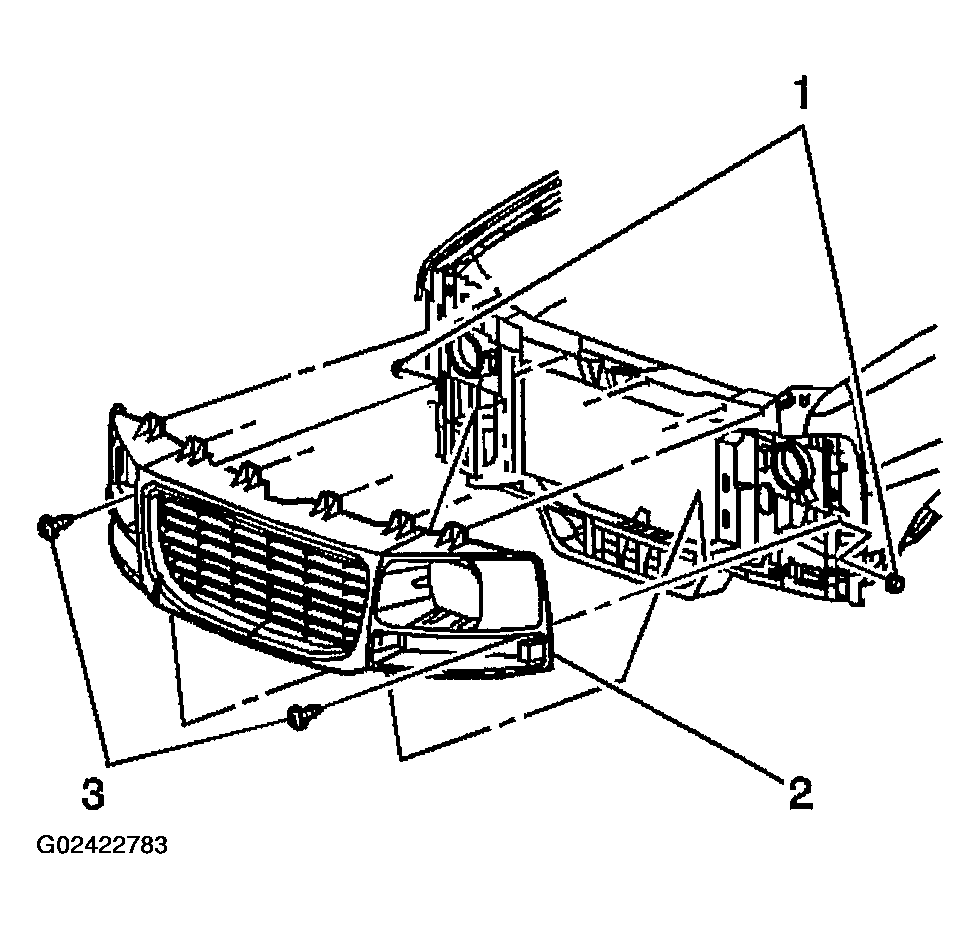

    Fig 1: Removing Radiator Grille (Base)
    G02422783Courtesy of GENERAL MOTORS CORP.
