Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important: Be careful not to damage the paint.
- Heat the emblem/nameplate using a J 25070 . Hold the heat gun approximately 152 mm (6 inches) from the surface.
- Apply the heat using a circular motion for about 30 seconds.

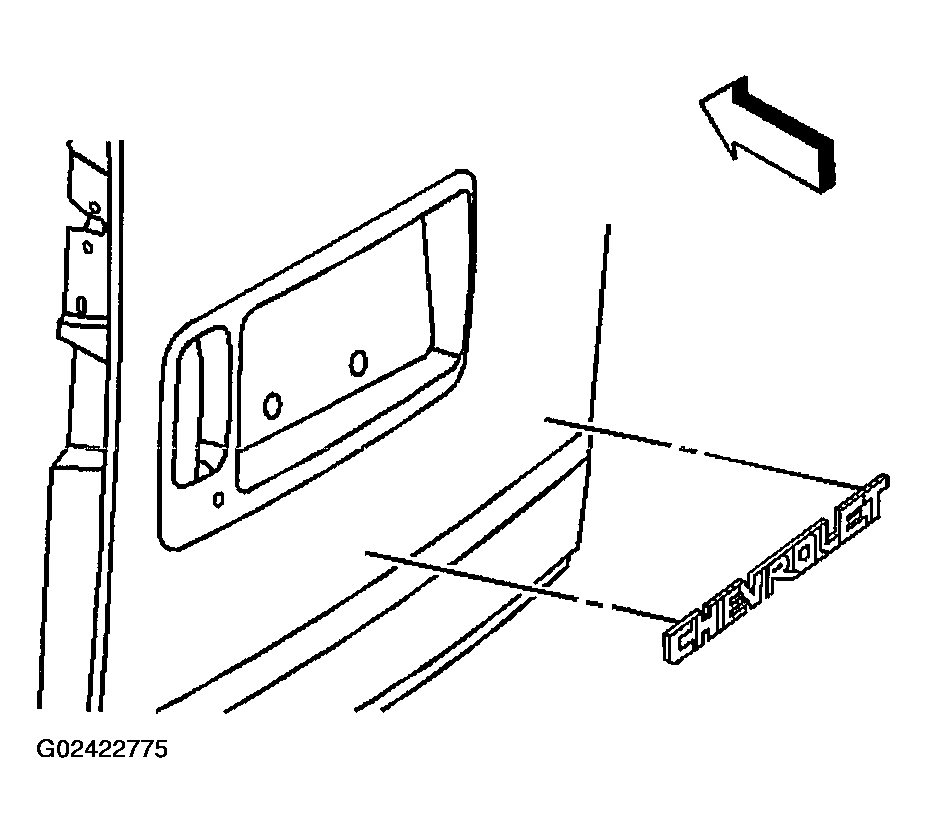

- Peel the emblem/nameplate from the panel using a flat-bladed plastic tool.
- Remove all adhesive from the body panel and the back of the emblem/nameplate using 3M® P/N 07501 or equivalent.
- Wash the affected panel with soap and water. Wipe the panel dry with a lint-free cloth.
- Remove all traces of adhesive from the body panel and the back of the molding. Use 3M® General Purpose Adhesive Cleaner 08984 or an equivalent.
- Wipe the panel with a clean lint-free cloth and a (50/50 mixture) by volume of isopropyl alcohol and water.
