Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille. Refer to Grille Replacement (Uplevel)  or Grille Replacement (Base)  .
  2. Remove the nuts (1) that retain the emblem to the radiator grille.
  3. Remove the emblem (3) from the radiator grille (2).

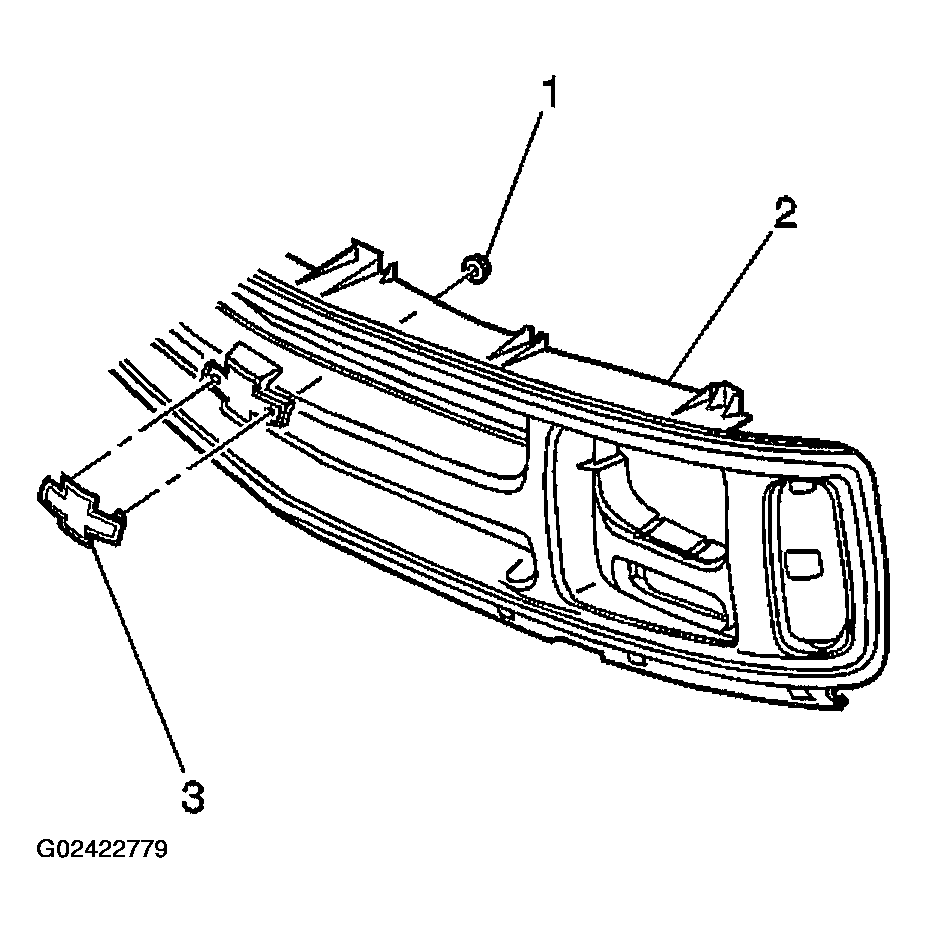

    Fig 1: Removing Grille Emblem
    G02422779Courtesy of GENERAL MOTORS CORP.
