Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

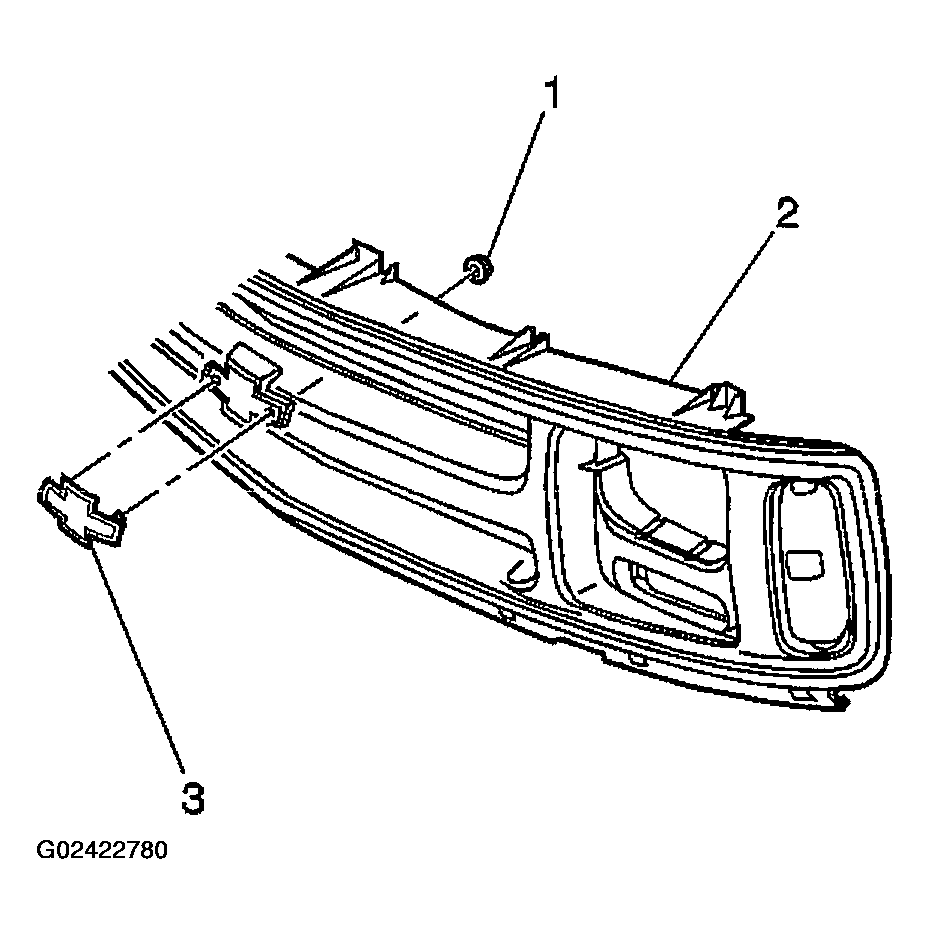

- Install the emblem (3) to the radiator grille (2).CAUTION: Refer to FASTENER NOTICE .
- Install the emblem retaining nuts (1) to the radiator grille.
Tighten
Tighten the emblem to radiator grille retaining nuts to 2 N.m (18 lb in).
- Install the radiator grille. Refer to Remove the radiator grille. Refer to Grille Replacement (Uplevel) or Grille Replacement (Base) .
