Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tow hook bolts to the frame.
  2. Install the tow hook to the frame.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the tow hooks to the frame mounting nuts.

    Tighten

    Tighten the nuts to 88 N.m (65 lb ft).

  4. Lower the vehicle.

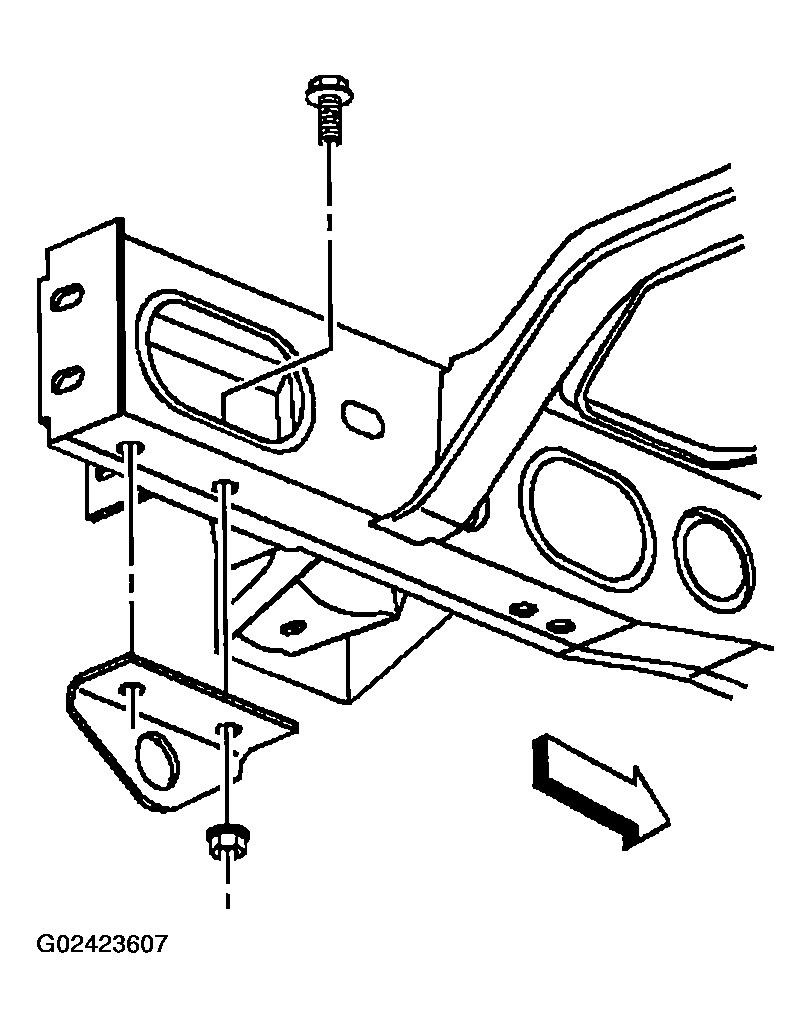

    Fig 1: Installing Rear Tie-Down Bracket
    G02423607Courtesy of GENERAL MOTORS CORP.
