Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tow hooks to the frame mounting bolts, left side only.
  3. Remove the tow hook from the frame.

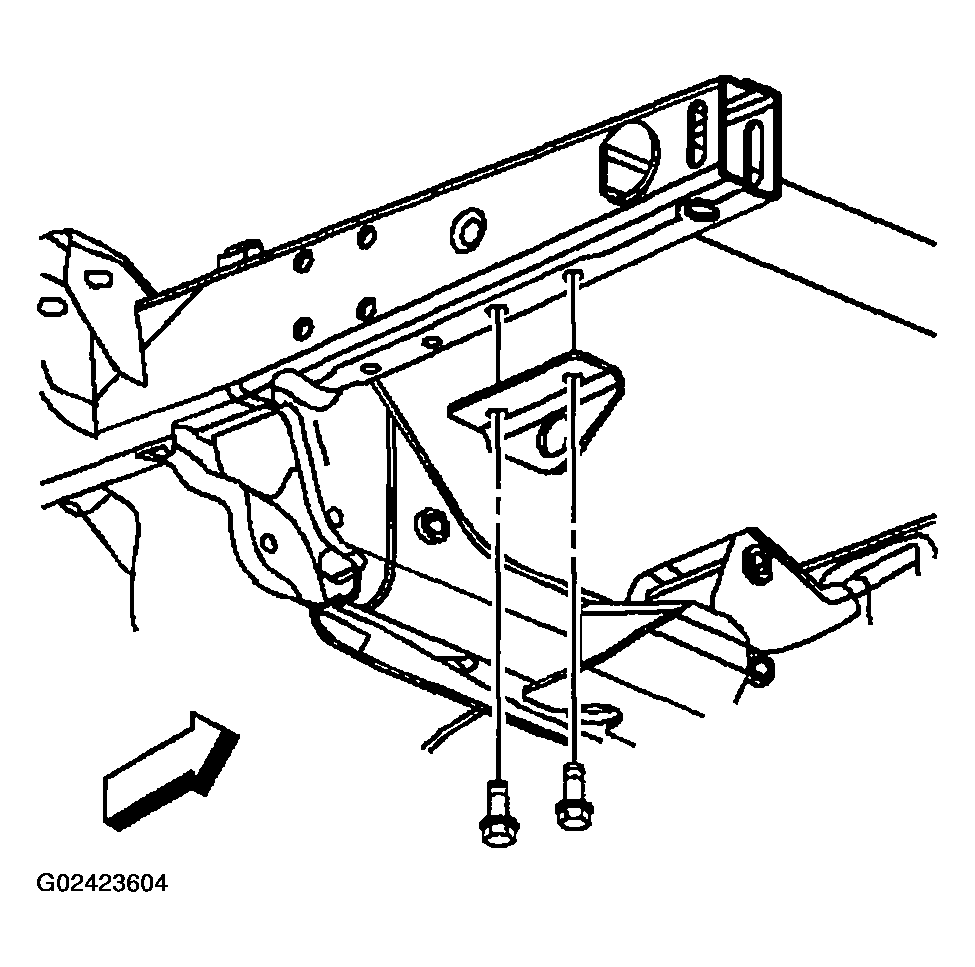

    Fig 1: Removing Front Tie-Down Bracket
    G02423604Courtesy of GENERAL MOTORS CORP.
