Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Support lower control arms with safety stands.
Unload the torsion bars. Refer to TORSION BAR AND SUPPORT ASSEMBLY REPLACEMENT .
Remove the right side differential carrier lower mounting bracket bolt and nut.

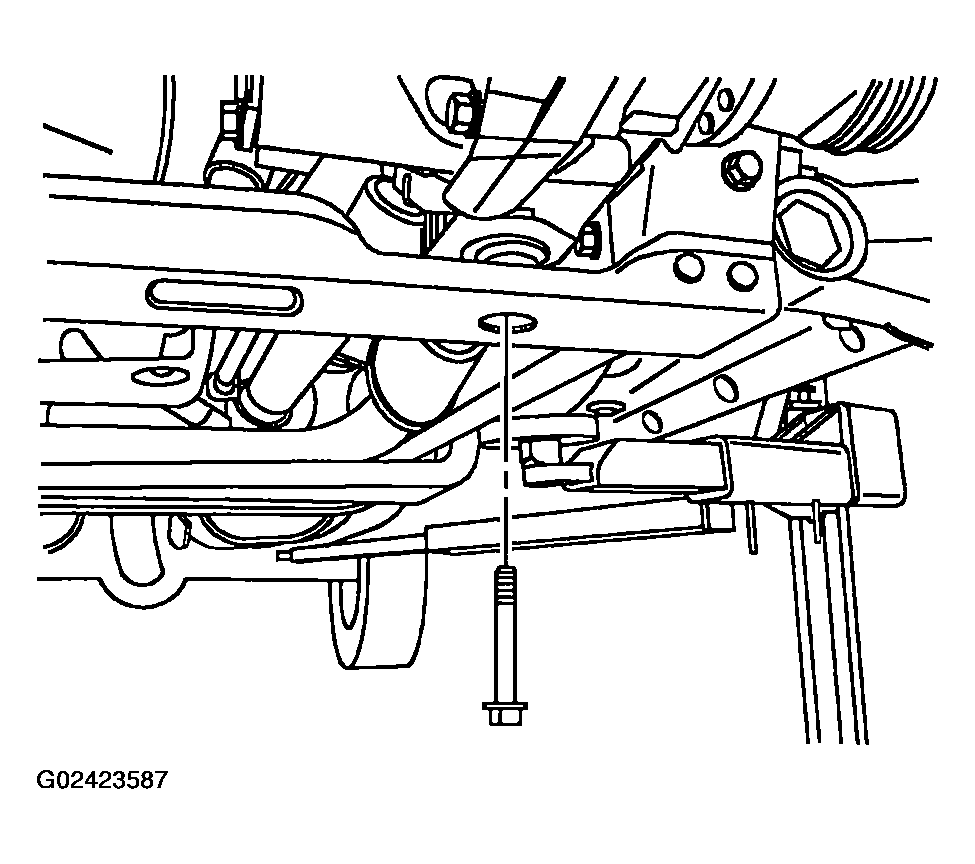

Fig 1: Removing Right Side Differential Carrier Lower Mounting Bracket Bolt & Nut
Courtesy of GENERAL MOTORS CORP.
Remove the left side differential carrier lower mounting bracket bolt.

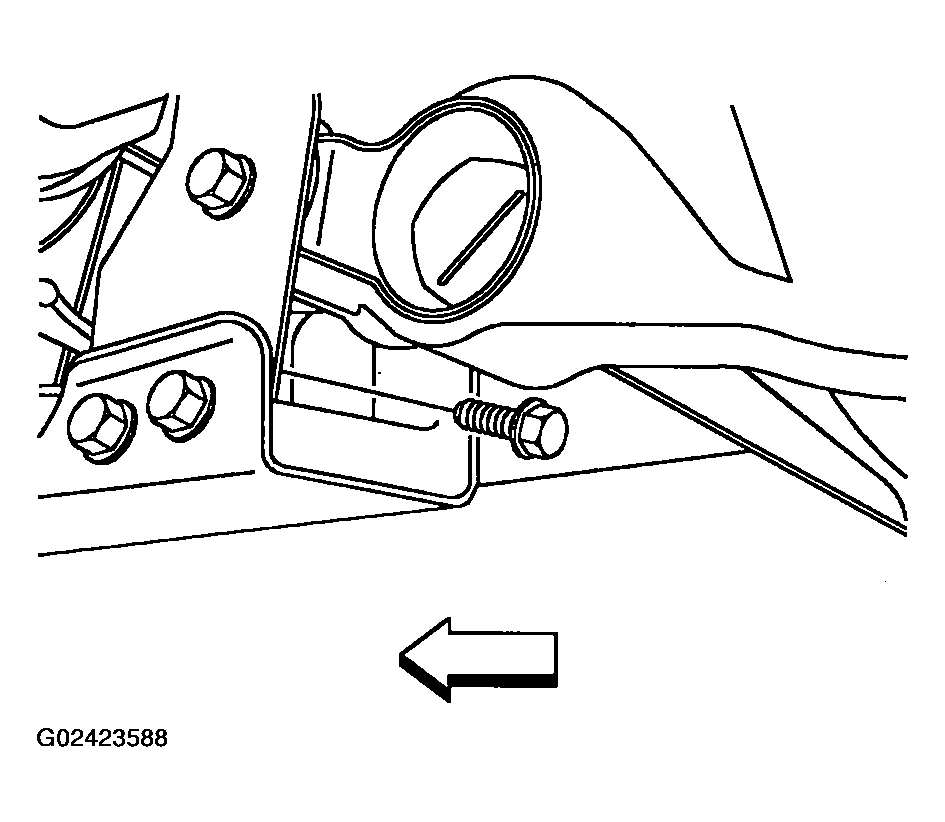

Fig 2: Removing Left Side Differential Carrier Lower Mounting Bracket Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the engine crossmember bolt from the left lower control arm bracket.

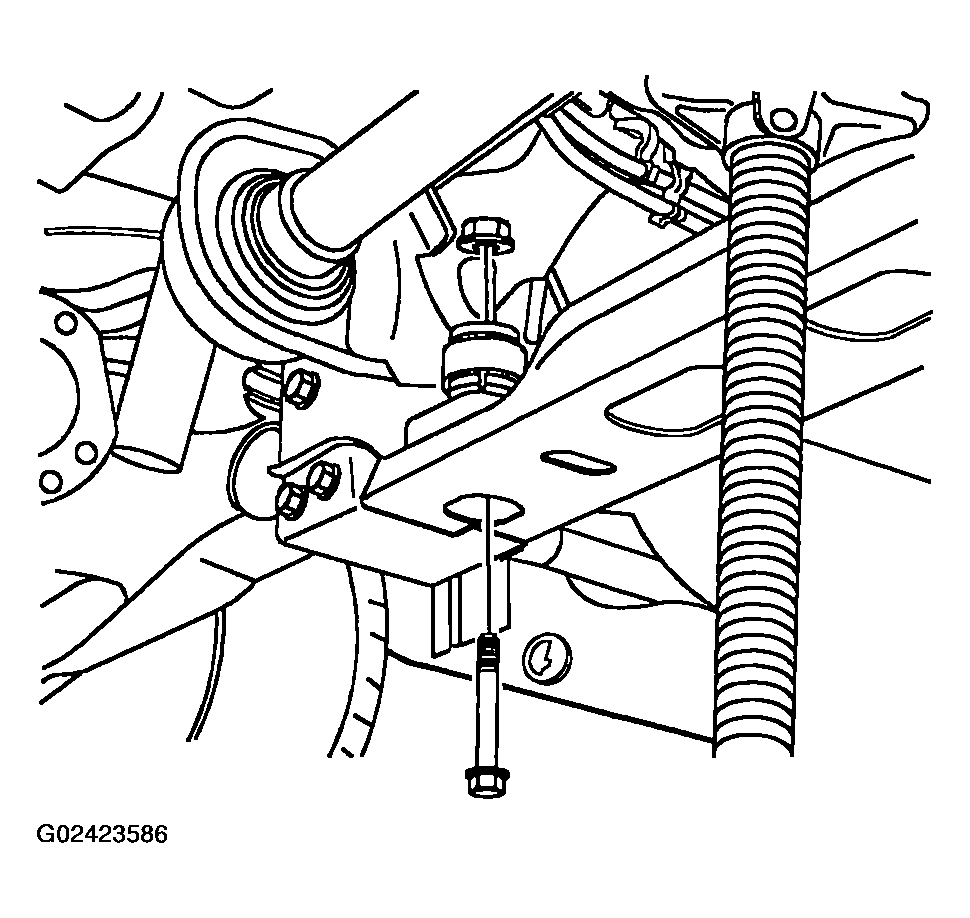

Fig 3: Removing Engine Crossmember Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the engine crossmember lower mounting bolts and nuts.

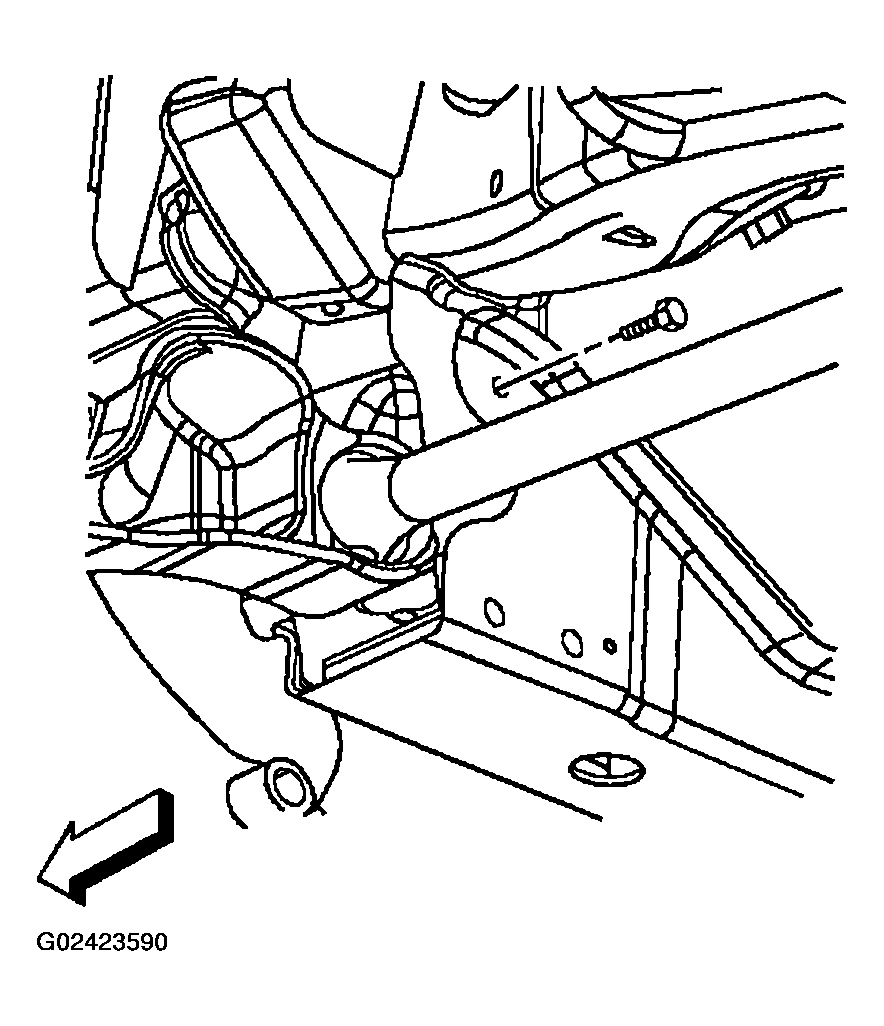

Fig 4: Removing Engine Crossmember Lower Mounting Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the engine crossmember upper mounting bolts.
Disconnect the electrical wiring harness connectors from the engine crossmember.
Remove the lower control arm nuts and washers.
Remove the lower control arm bolts until bolts are flush with the frame.
Remove the engine crossmember.

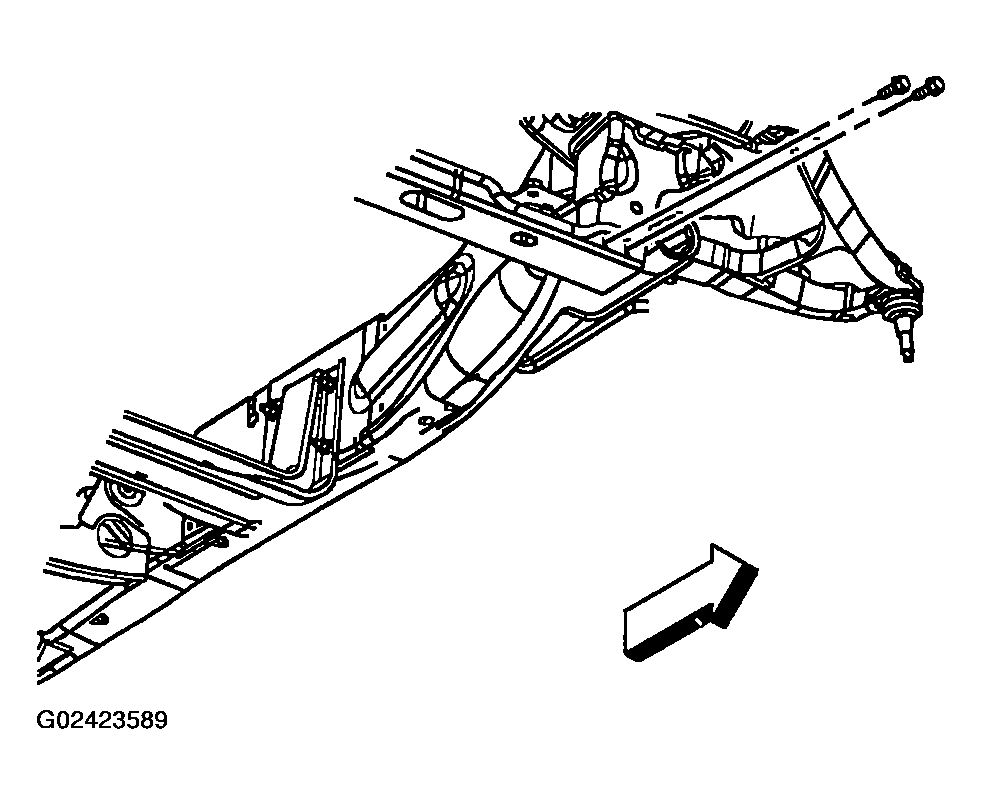

Fig 5: Removing Front Engine Crossmember (4WD)
Courtesy of GENERAL MOTORS CORP.
