Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body mount (2) to the frame.
  2. Raise the frame.

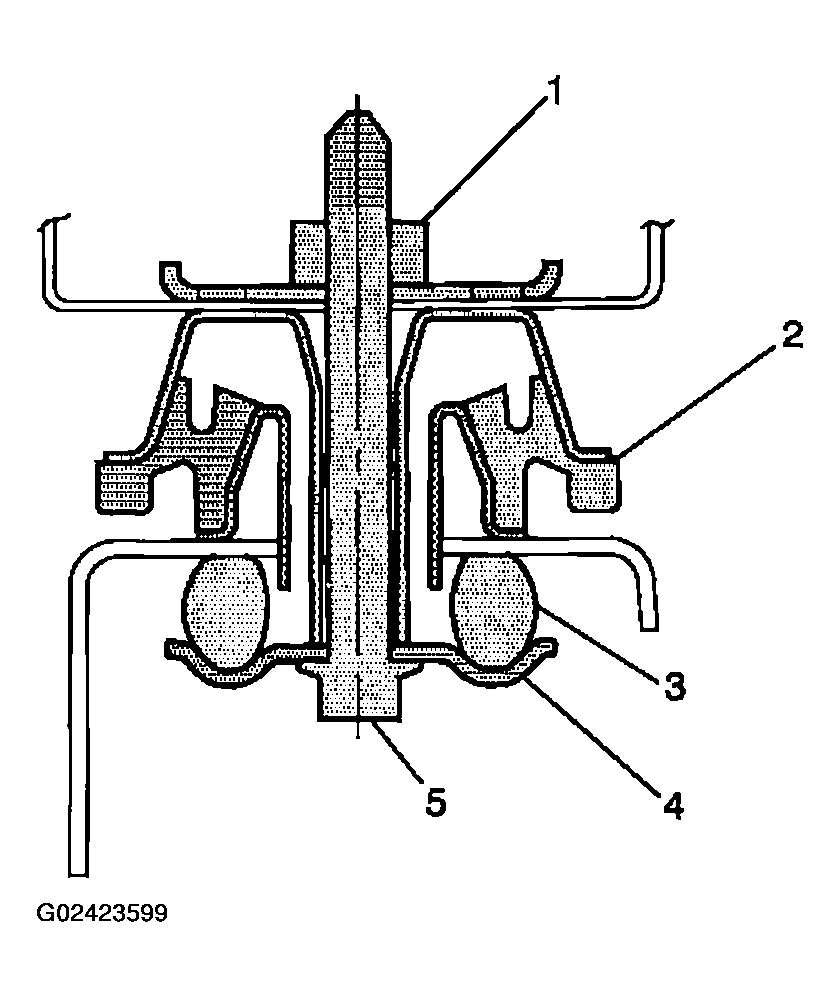

    Fig 1: Installing Body Mount
    G02423599Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt (5) to the body mount.

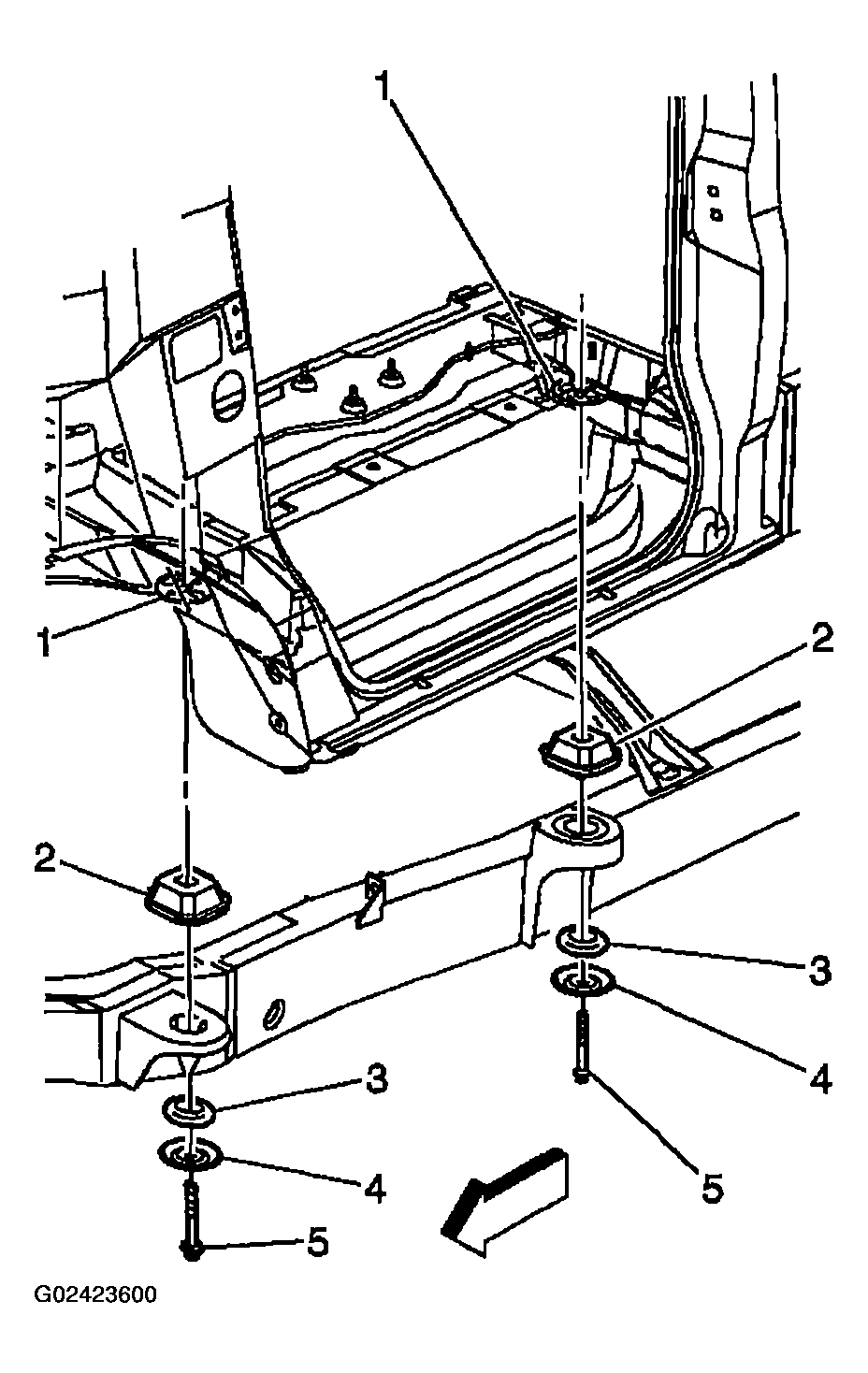

    Fig 2: Installing Bolt To Body Mount
    G02423600Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the body mount bolts (5).

    Tighten

    Tighten the body mount bolts to 140 N.m (103 lb ft).

  5. Install the brake line retainers.
  6. Remove the safety stands.
  7. Lower the vehicle.
  8. Install the screws retaining the fuel filler pipe to the body.

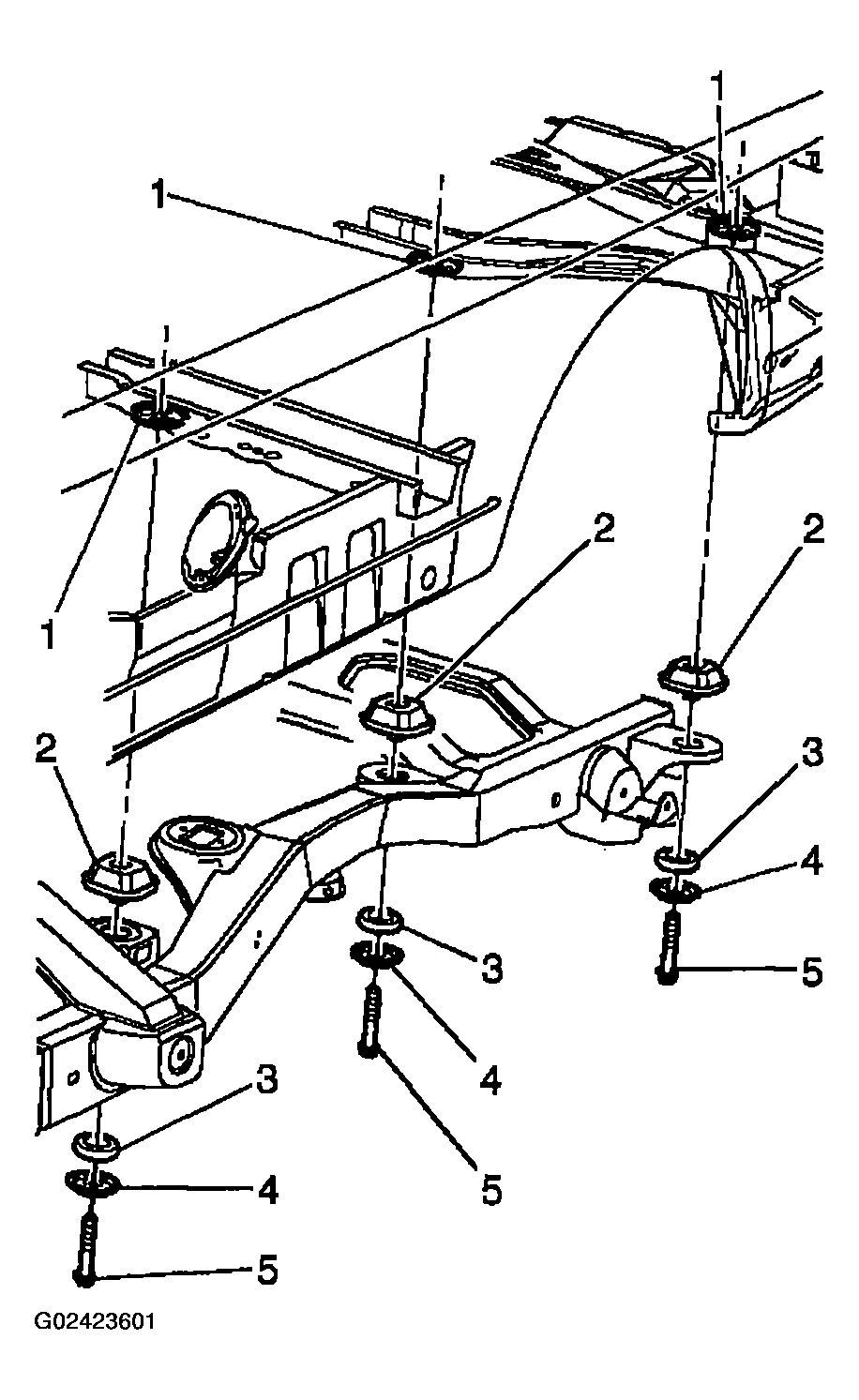

    Fig 3: Installing Body Mount Bolts
    G02423601Courtesy of GENERAL MOTORS CORP.
