Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to ENGINE MOUNTING NOTICE .

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the engine mount to engine mount bracket bolts.

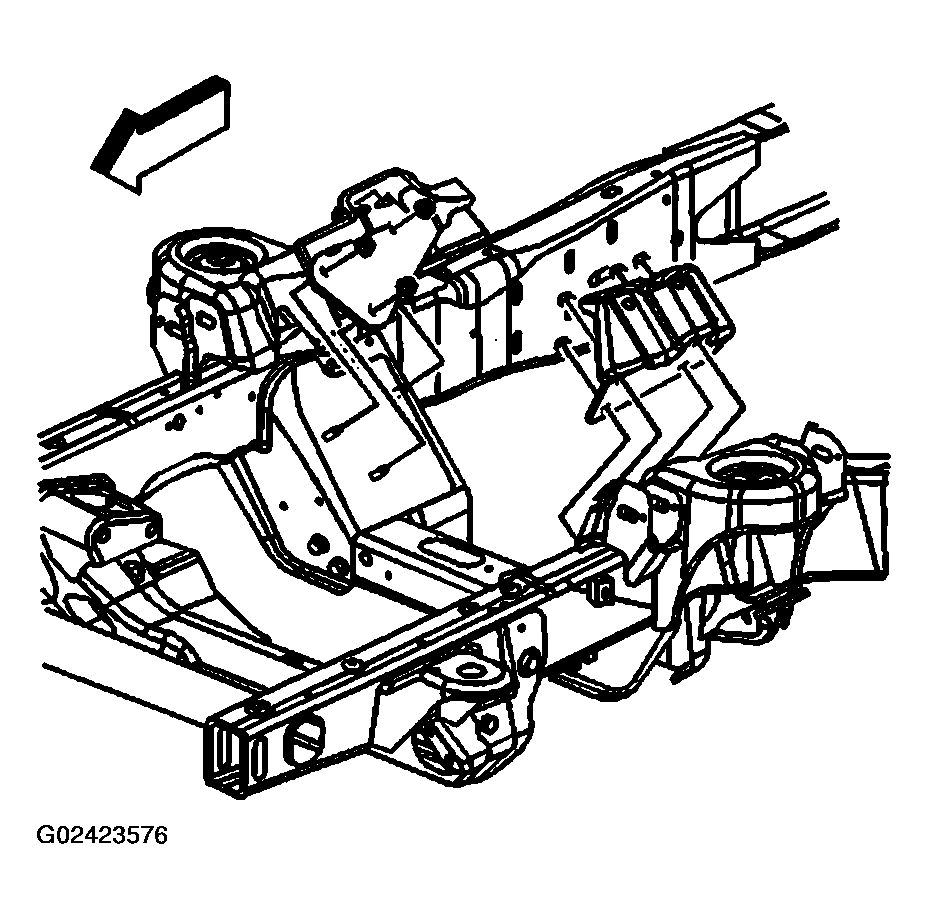

Fig 1: Removing Engine Mount To Engine Mount Bracket Bolts
Courtesy of GENERAL MOTORS CORP.

CAUTION: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or crankshaft balancer. Jacking against the oil pan may cause it to crack or break.

Important: Raise the engine only enough to permit removal of the engine mount bracket.
Using a jack on the square tab at the rear of the engine block and raise the engine, left side shown.

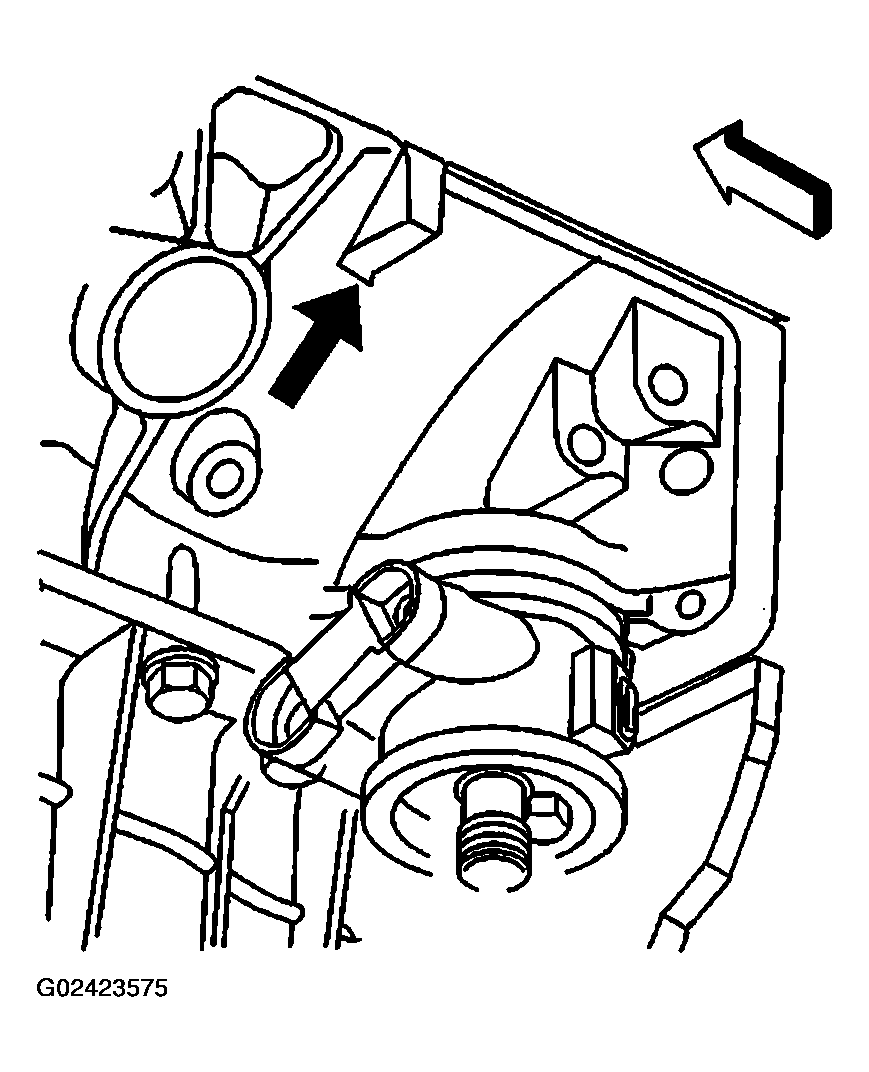

Fig 2: Identifying Square Tab At Rear Of Engine Block
Courtesy of GENERAL MOTORS CORP.
Remove the engine mount bracket mounting nuts
Remove the engine mount bracket from the vehicle.

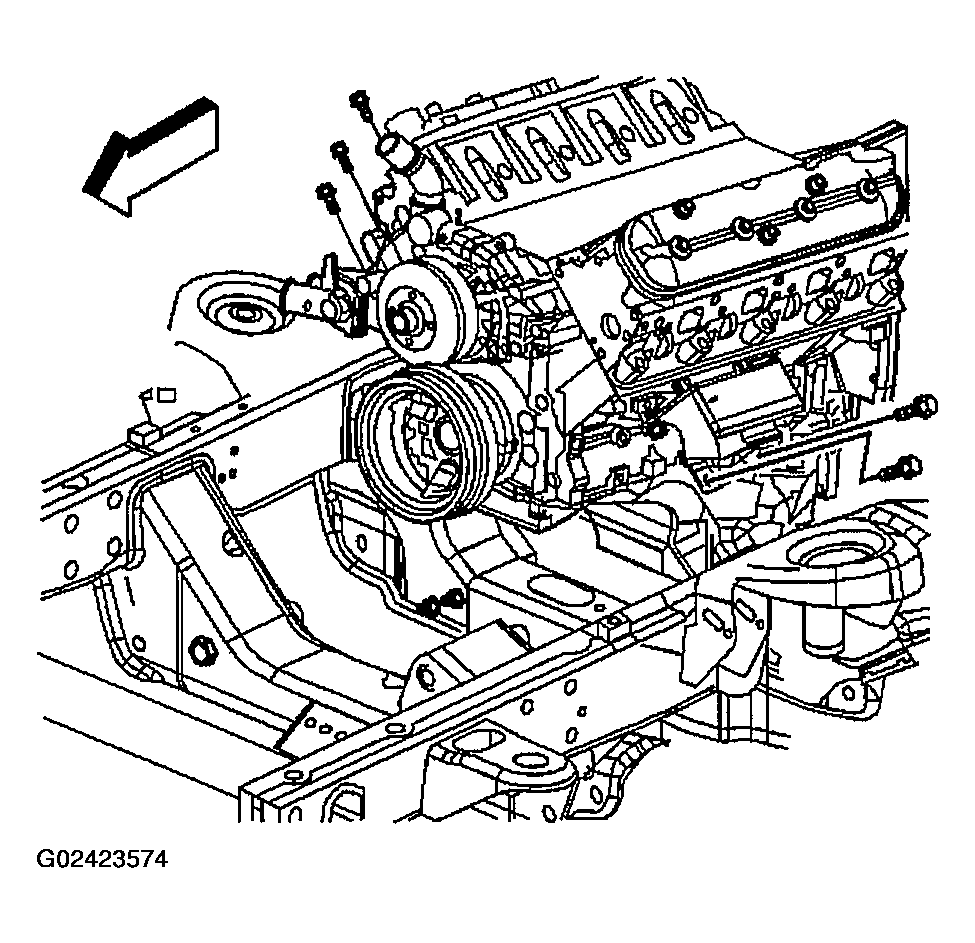

Fig 3: Removing Engine Mount Bracket - Left
Courtesy of GENERAL MOTORS CORP.
