Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement  .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Disconnect the electrical connector from the wiper motor.

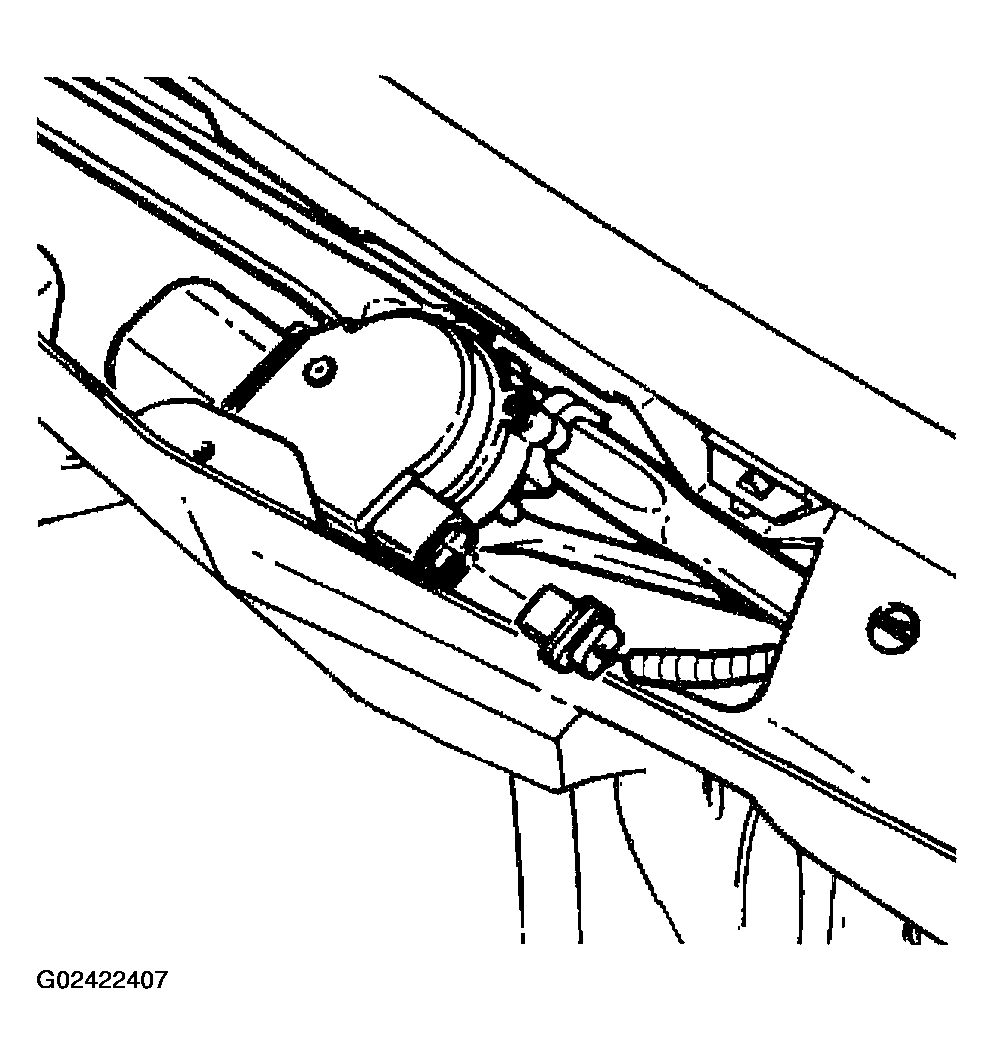

    Fig 1: Disconnecting Electrical Connector From Wiper Motor
    G02422407Courtesy of GENERAL MOTORS CORP.
  4. Remove the 4 bolts retaining the wiper system drive module.

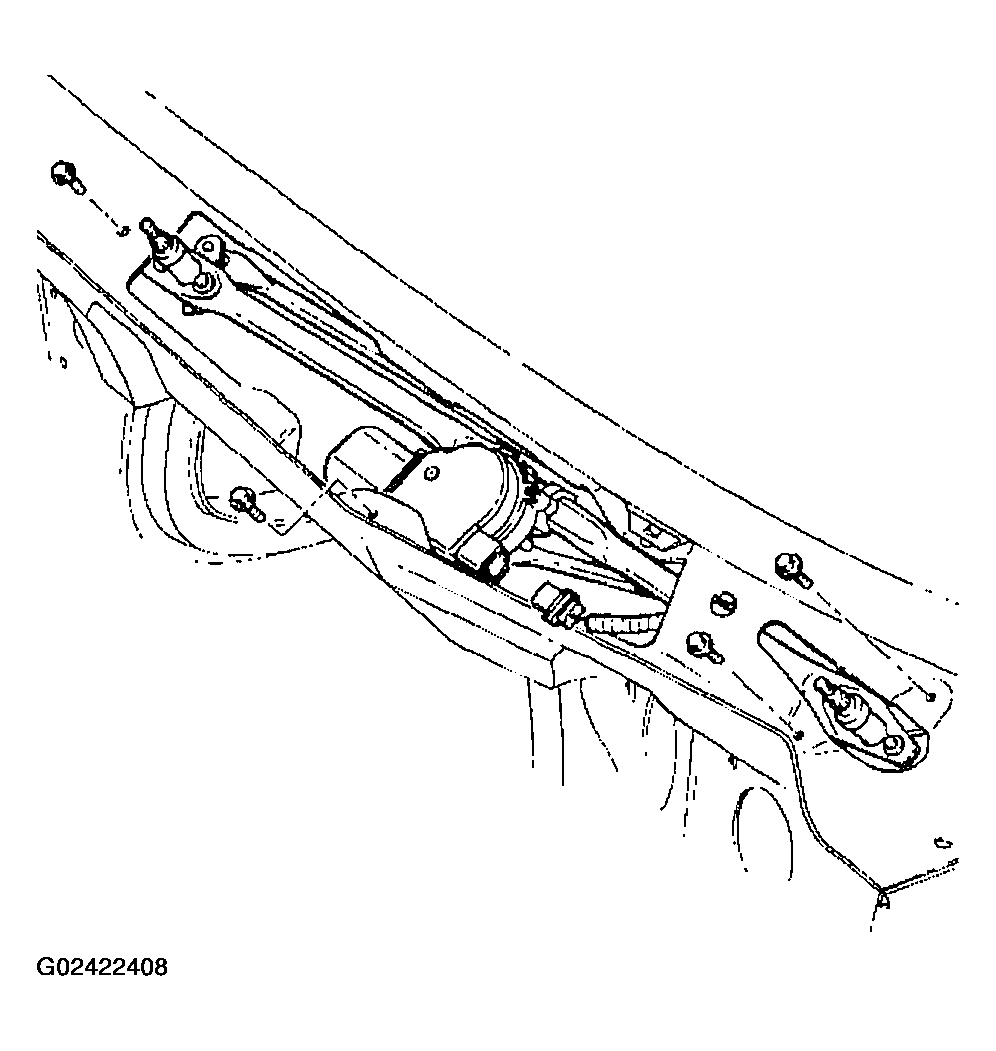

    Fig 2: Removing Wiper System Drive Module Bolts
    G02422408Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiper system drive module (3) from the vehicle.

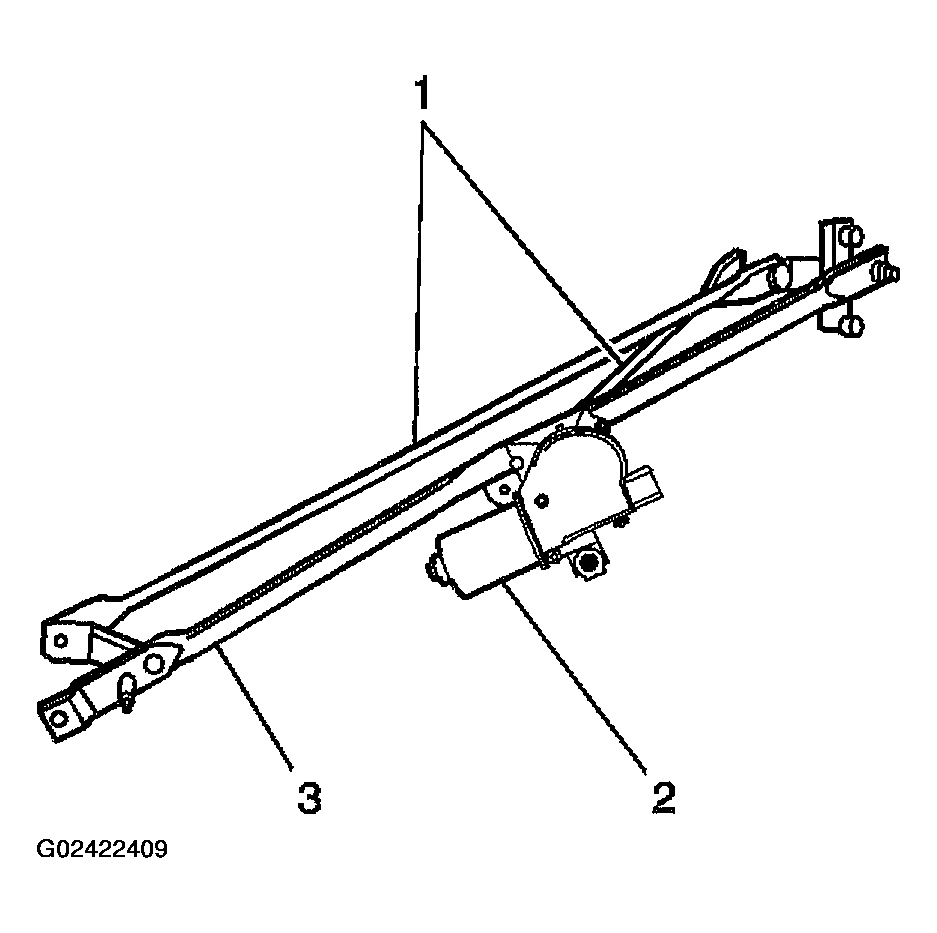

    Fig 3: Removing Wiper System Drive Module
    G02422409Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the drive link from the wiper motor crank arm using the J 39232  .

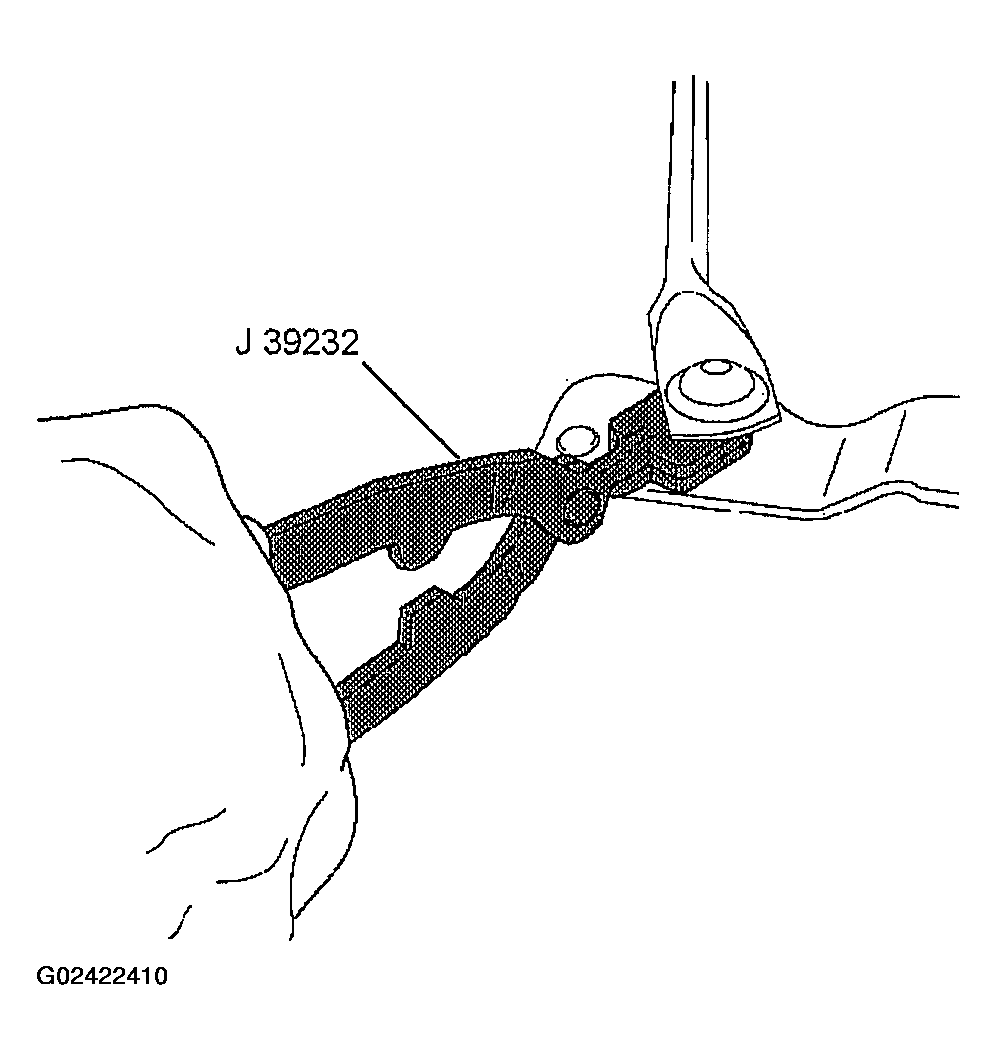

    Fig 4: Disconnecting Drive Link Using J 39232
    G02422410Courtesy of GENERAL MOTORS CORP.
  7. Remove the 4 bolts retaining the wiper transmission.
  8. Remove the wiper transmission from the wiper drive system module.
    Fig 5: Removing Wiper Transmission
    G02422411Courtesy of GENERAL MOTORS CORP.
