Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper motor crank arm (3) on the wiper motor shaft while maintaining a 4-8 mm (0.157-0.314 in) gap between the wiper motor crank arm and the bracket tab.
  2. Install the nut (1) which secures the crank arm to the wiper motor shaft.
    CAUTION: Refer to FASTENER NOTICE .
  3. Measure the gap between wiper motor crank arm and the bracket tab. If the gap is not 4-8 mm (0.157-0.314 in), remove the crank arm and repeat installation.

    Tighten

    Tighten the wiper motor crank arm nut to 16 N.m (12 lb ft).

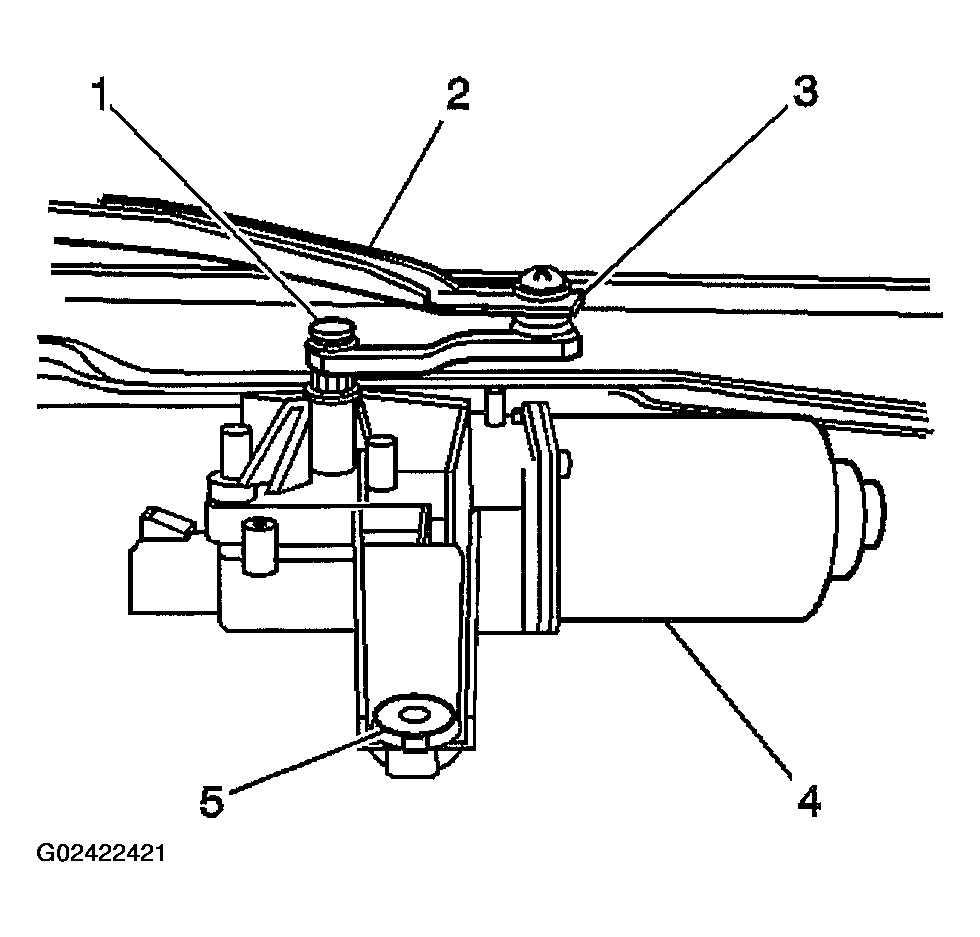

    Fig 1: Installing Wiper Motor Crank Arm
    G02422421Courtesy of GENERAL MOTORS CORP.
  4. Install the wiper transmission on the wiper motor crank arm using the J 39529  .

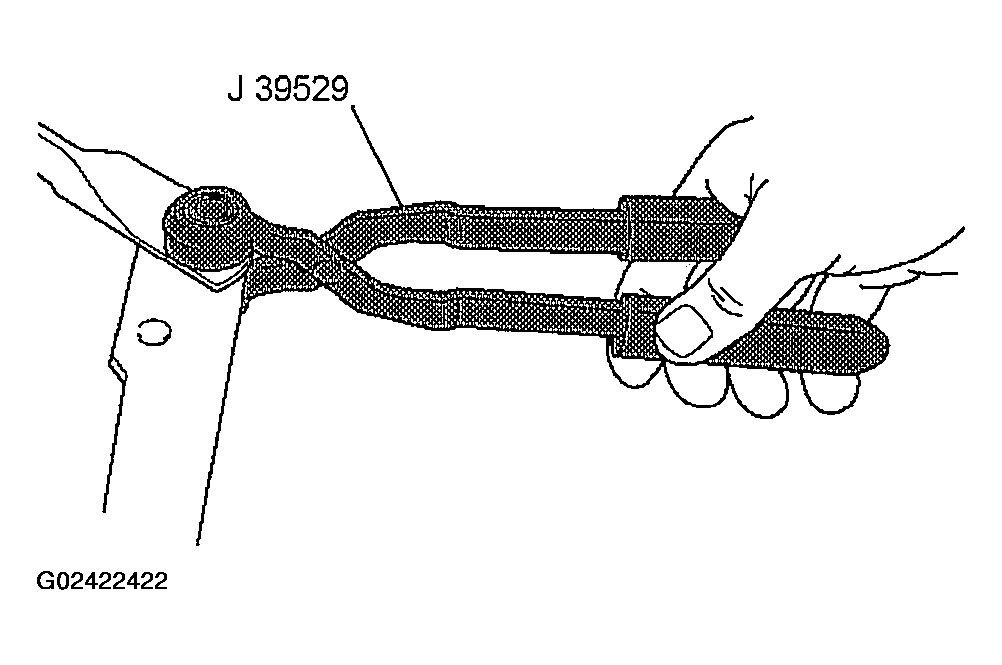

    Fig 2: Installing Wiper Transmission Using J 39529
    G02422422Courtesy of GENERAL MOTORS CORP.
  5. Install the wiper motor module assembly. Refer to Wiper Motor Module Replacement  .

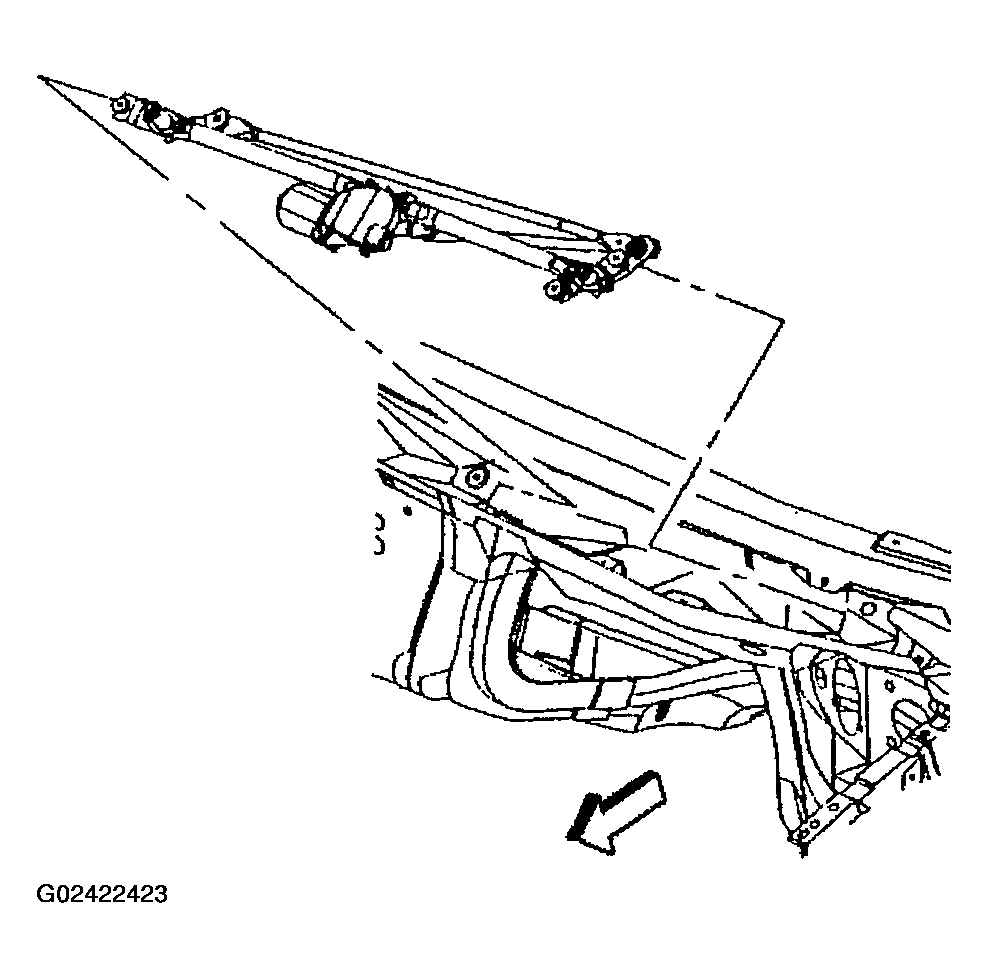

    Fig 3: Installing Wiper Motor Module Assembly
    G02422423Courtesy of GENERAL MOTORS CORP.
  6. Install the air inlet grille panels (1,2). Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  7. Install the wiper arms. Refer to Wiper Arm Replacement  .
  8. Operate the windshield wipers and inspect for proper operation.

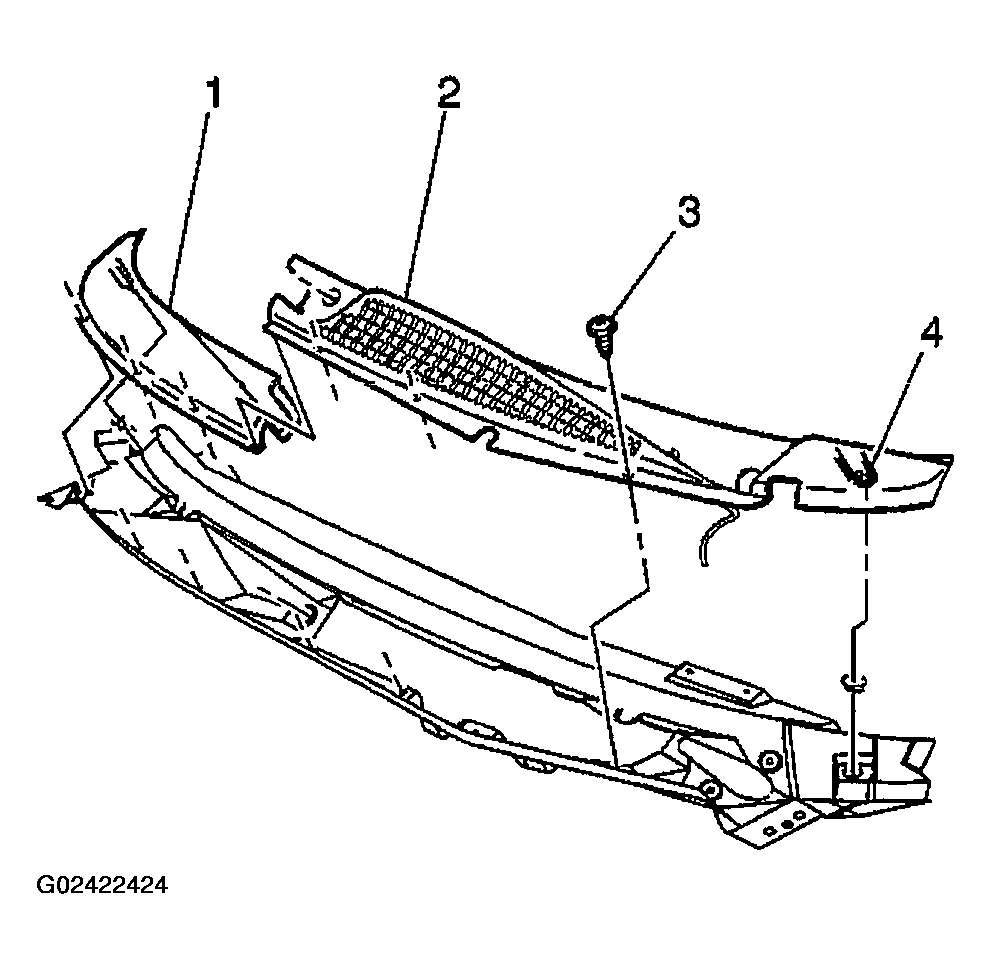

    Fig 4: Installing Air Inlet Grille Panels
    G02422424Courtesy of GENERAL MOTORS CORP.
