Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement  .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Disconnect the electrical connector from the wiper motor.

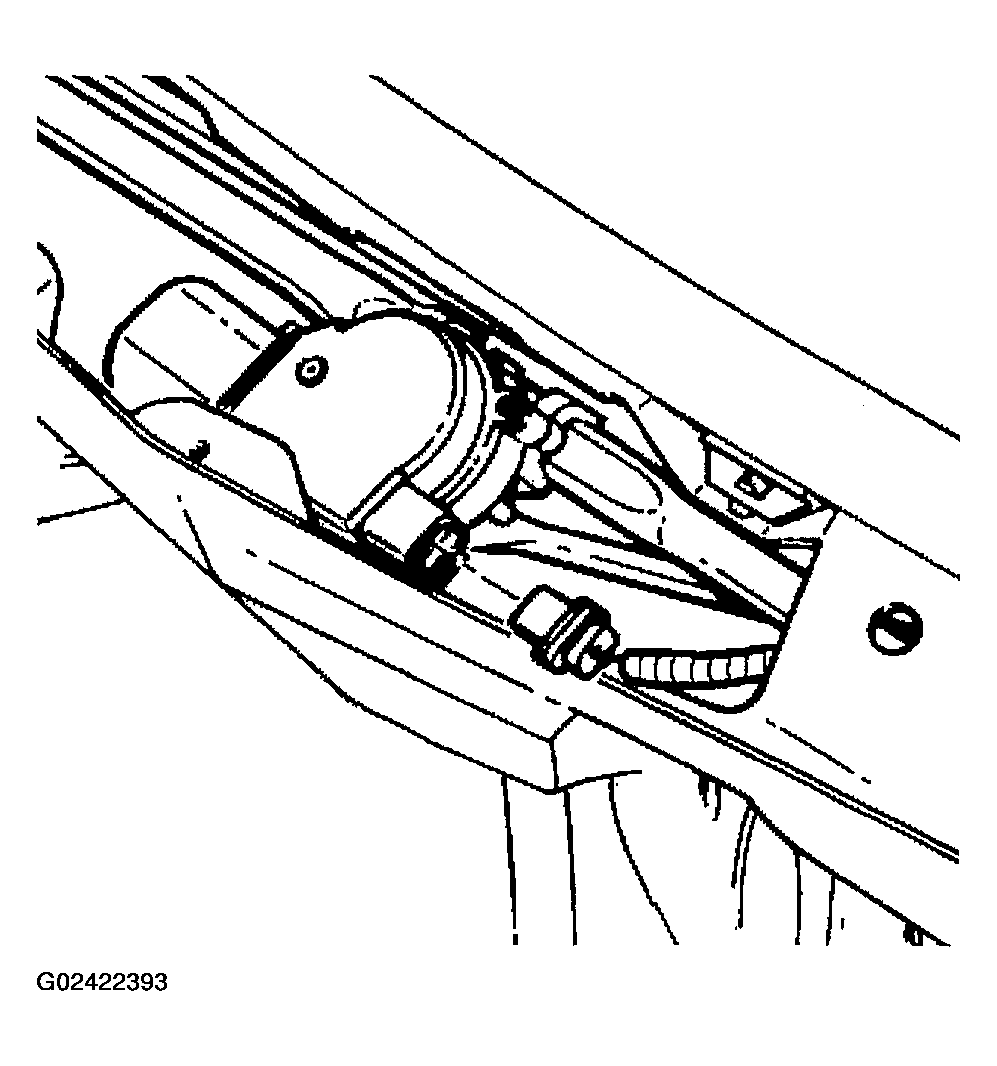

    Fig 1: Disconnecting Electrical Connector From Wiper Motor
    G02422393Courtesy of GENERAL MOTORS CORP.
  4. Remove the 3 screws (2) and the wiper motor cover (3) from the wiper motor (1).
  5. Remove the wiper motor cover (3).
    Fig 2: Removing Wiper Motor Cover
    G02422394Courtesy of GENERAL MOTORS CORP.
