Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the upper fender support.
  3. Remove the bolt from the washer solvent container.

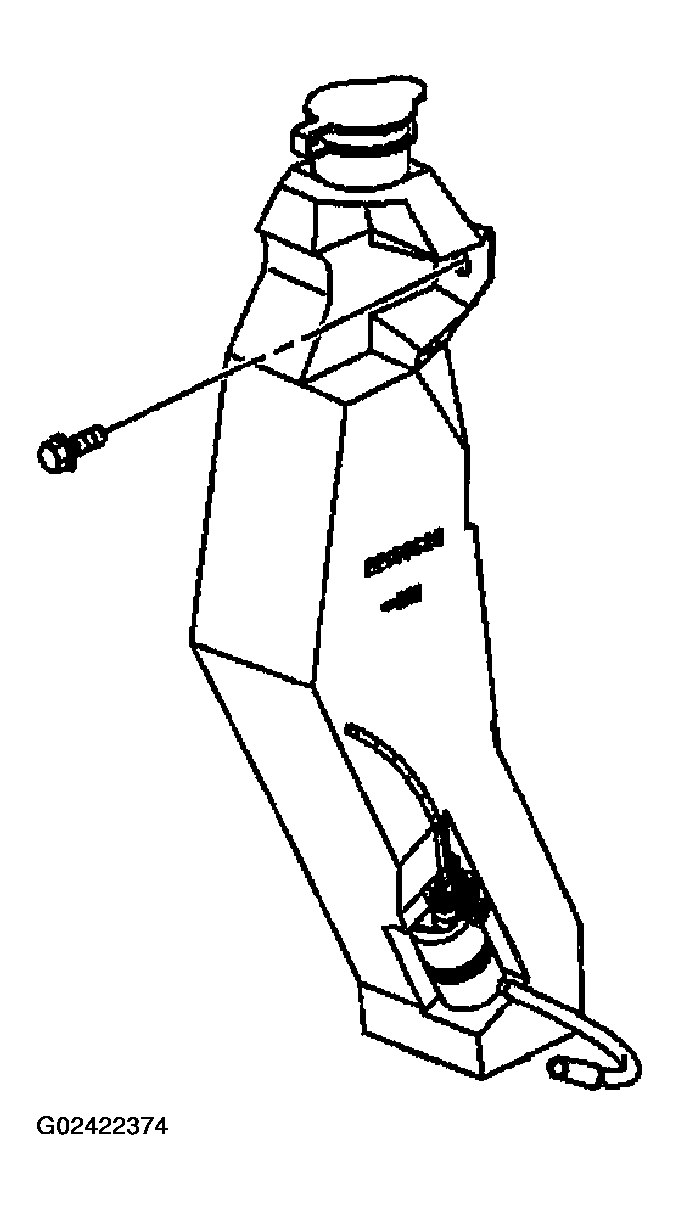

    Fig 1: Removing Bolt From Washer Solvent Container
    G02422374Courtesy of GENERAL MOTORS CORP.
  4. Lift the washer solvent container up enough past the horns in order to access the washer hose and the electrical connector.
  5. Disconnect the electrical connector from the washer pump.
  6. Disconnect the washer hose from the washer pump.
  7. Place a cap on the washer pump to prevent any washer solvent loss.
  8. Remove the washer solvent container from the vehicle.

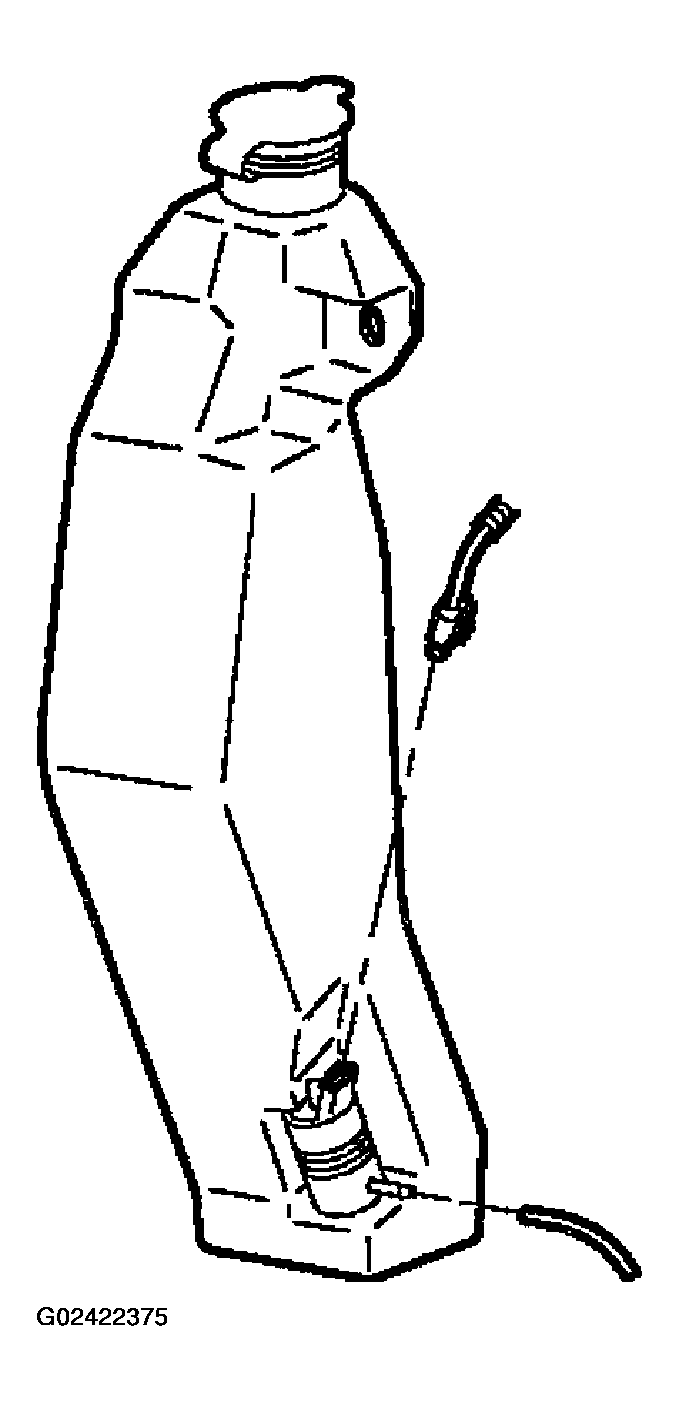

    Fig 2: Disconnecting Electrical Connector & Washer Hose
    G02422375Courtesy of GENERAL MOTORS CORP.
  9. Drain the washer solvent into a suitable container.
  10. Remove the washer pump from the washer solvent container.
  11. Remove the washer solvent container cap.

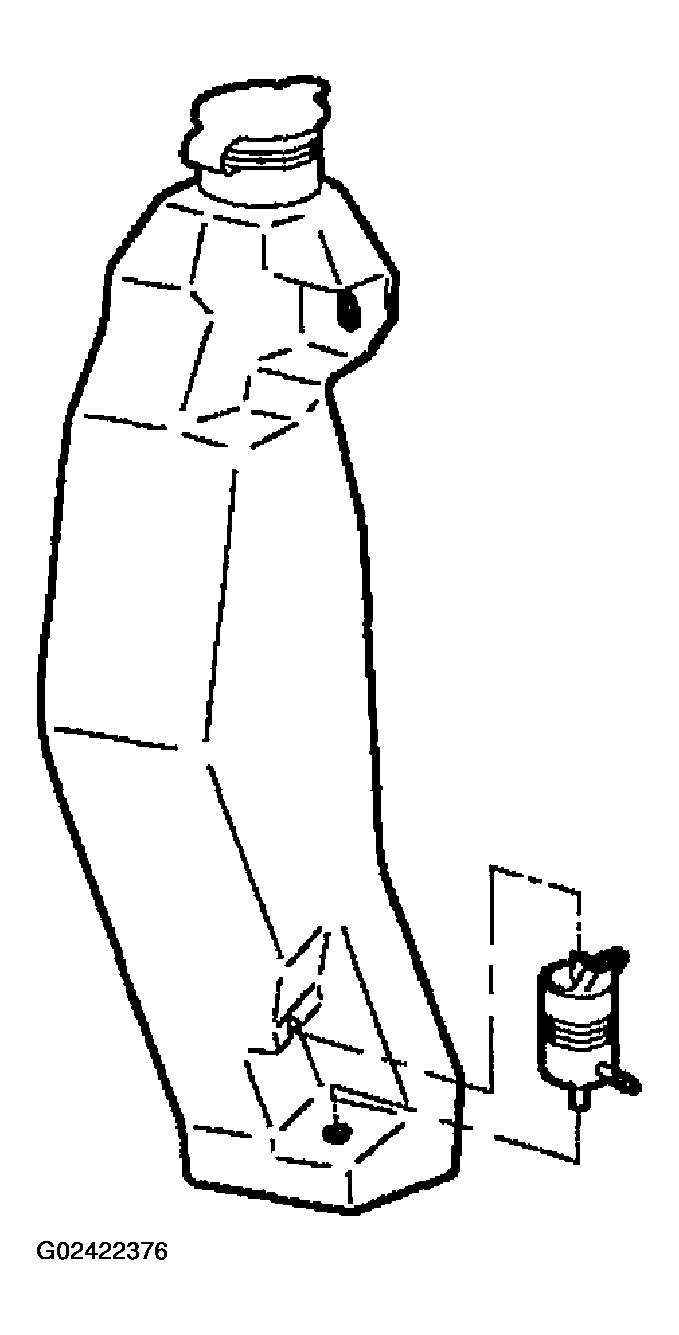

    Fig 3: Removing Washer Pump
    G02422376Courtesy of GENERAL MOTORS CORP.
