Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the washer hose from the wiper blades.
  3. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  4. Disconnect the washer hose from the air inlet grille panel.
  5. Remove the washer hose grommet from the grille panel.
  6. Disconnect the washer hose from the plastic cover.
  7. Disconnect the washer hose from the washer pump.
  8. Remove the washer hose from the vehicle.

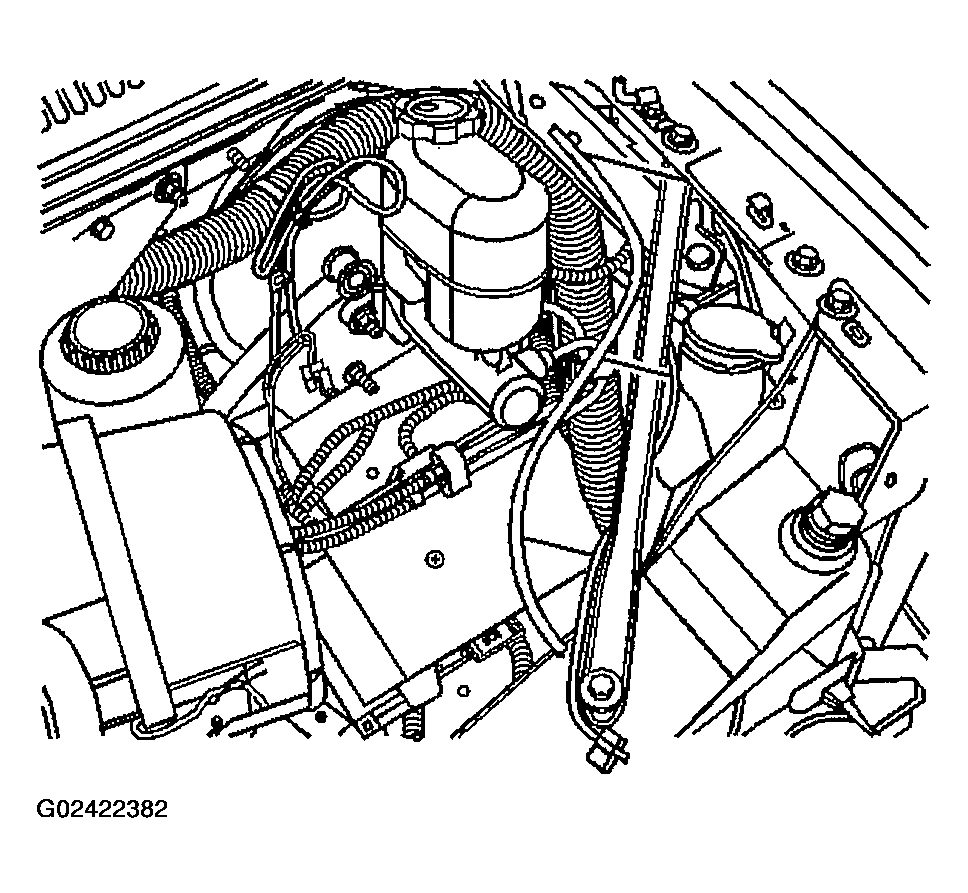

    Fig 1: Removing Windshield Washer Hose
    G02422382Courtesy of GENERAL MOTORS CORP.
