Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer hose to the vehicle.
  2. Lubricate the washer hose ends with washer solvent and install to the washer hose end to the washer pump.
  3. Connect the washer hose to the washer pump.
  4. Install the washer hose grommet to the slot in the air inlet grille panel.
  5. Connect the washer hose to the air inlet grille panel.
  6. Connect the washer hose to the plastic panel.
  7. Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  8. Connect the washer hose to the wiper blades.
  9. Fill the washer solvent container. 10. Close the hood.

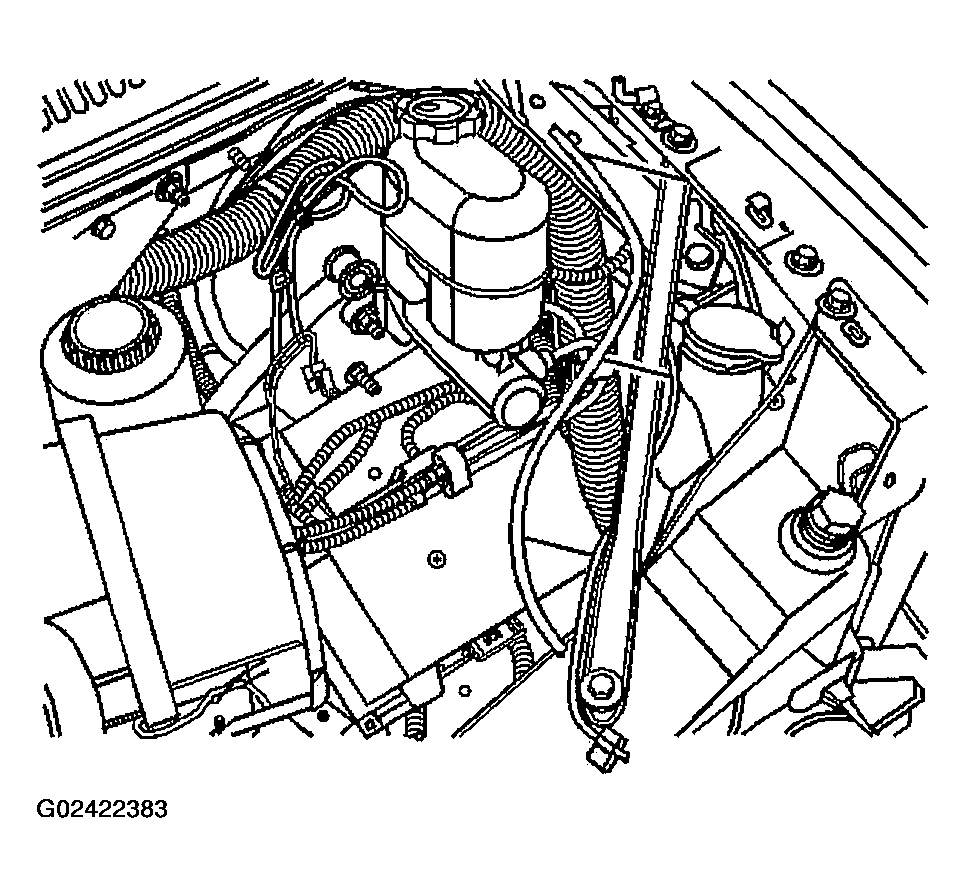

    Fig 1: Installing Windshield Washer Hose
    G02422383Courtesy of GENERAL MOTORS CORP.
