Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below Refer to the step numbers on the diagnostic table.

5. This step tests for continuity through the 390 ohm resistor in the windshield wiper/washer switch.
6. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from low to high as the delay speed is increased.

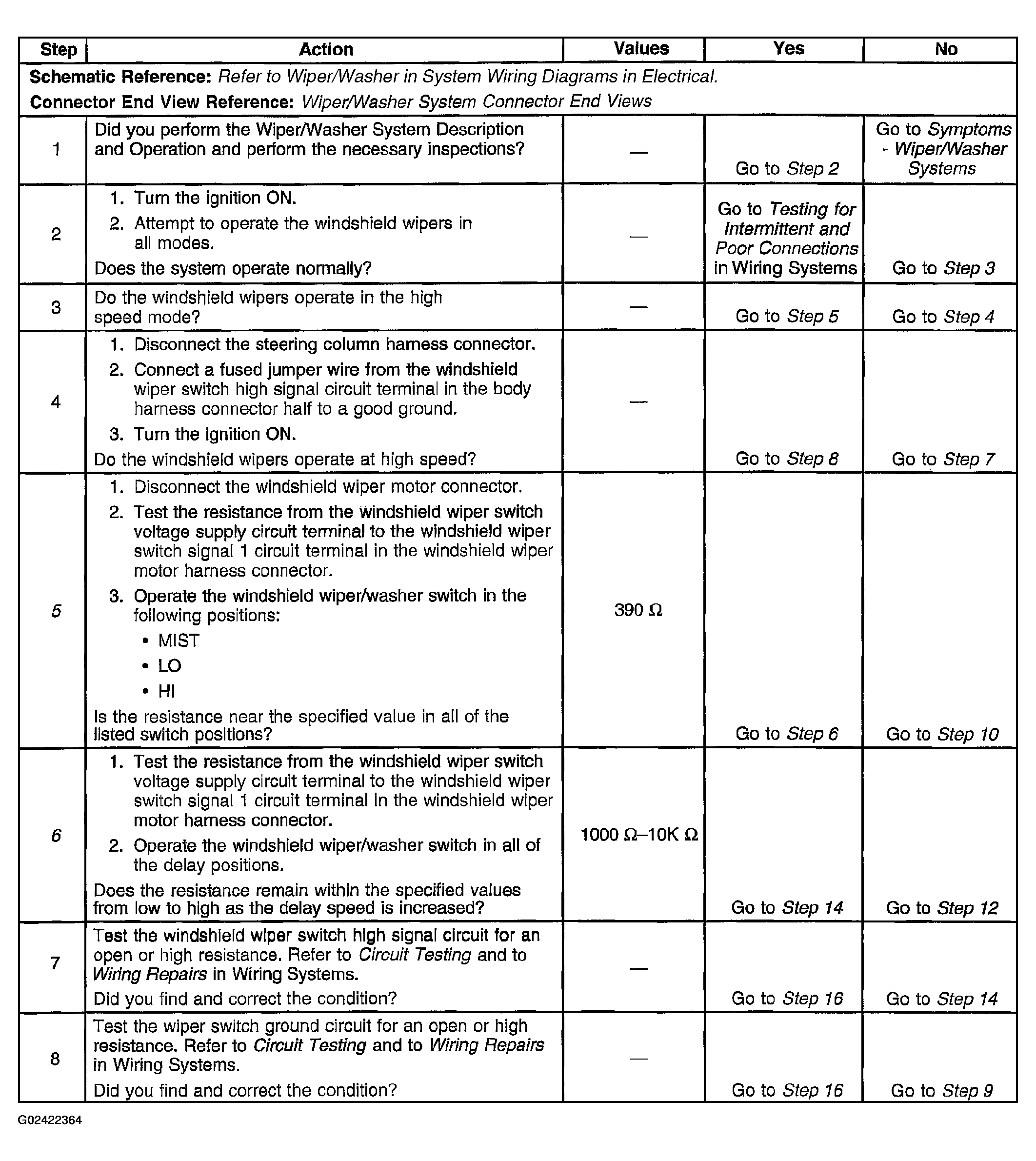

Fig 1: Wipers Inoperative - One Or More Modes (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

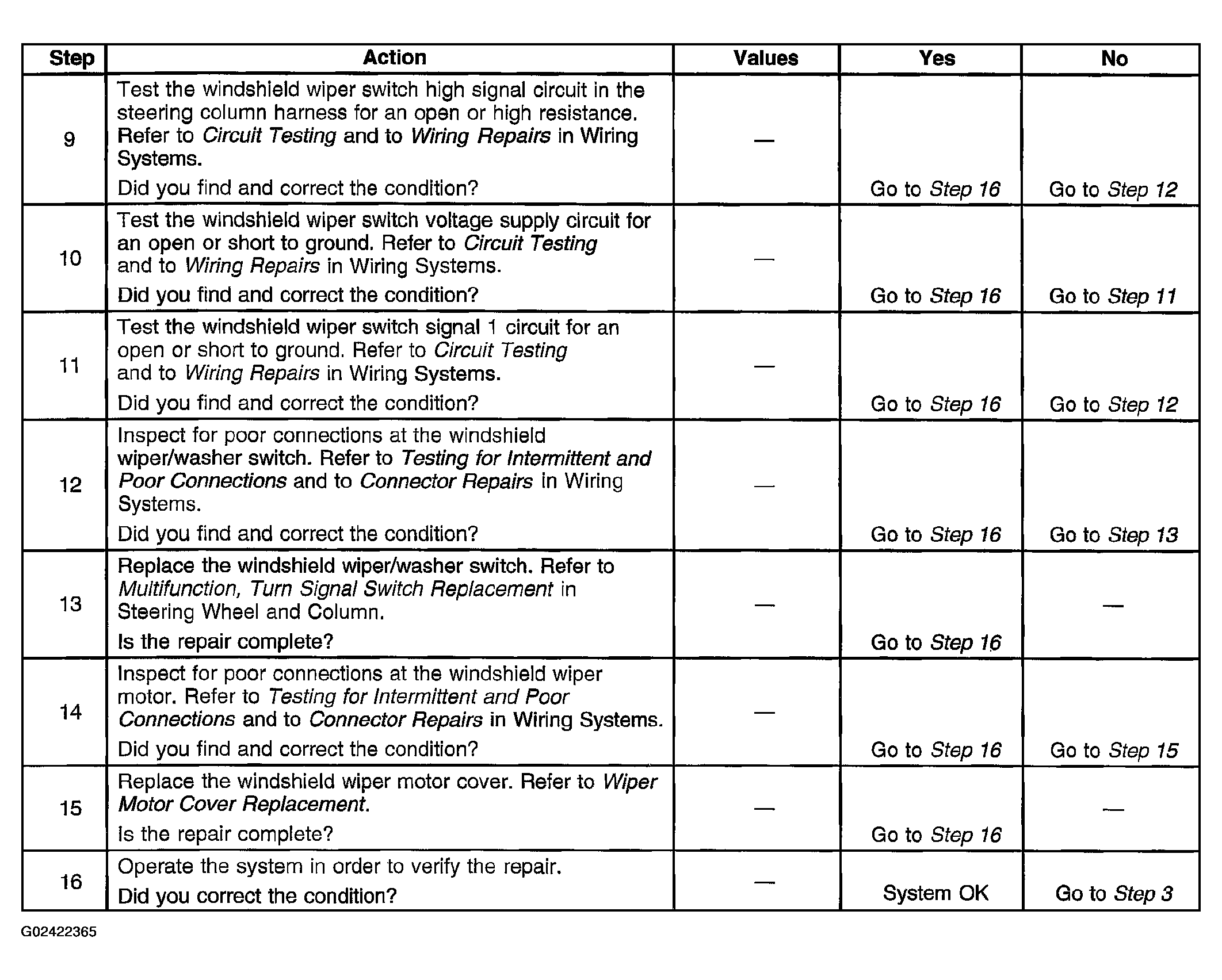

Fig 2: Wipers Inoperative - One Or More Modes (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
