Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
  2. Remove the seat belt retractor bolts (1).
  3. Remove the seat belt retractor from the vehicle.

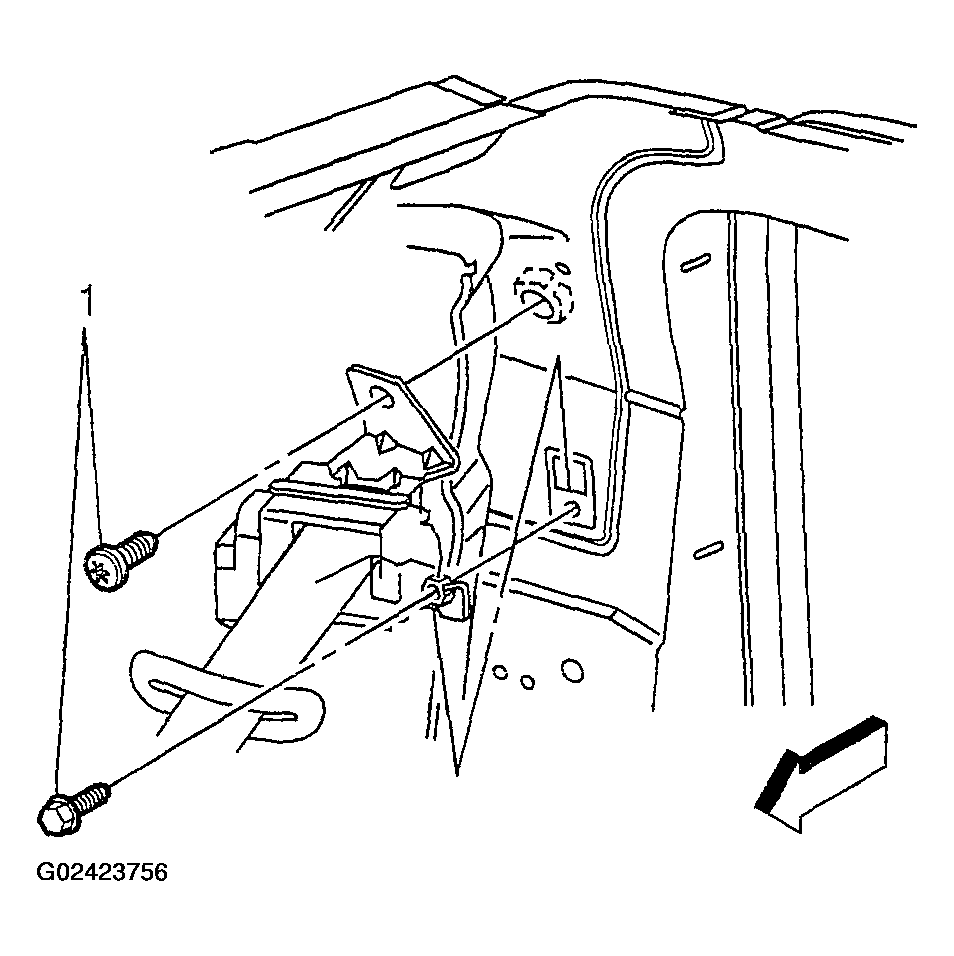

    Fig 1: Removing No. 5 Right Rear Seat Belt Retractor
    G02423756Courtesy of GENERAL MOTORS CORP.
