Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt retractor to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat belt retractor bolts (1).

    Tighten

    Tighten the seat belt retractor bolt to 52 N.m (38 lb ft).

  3. Install the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .

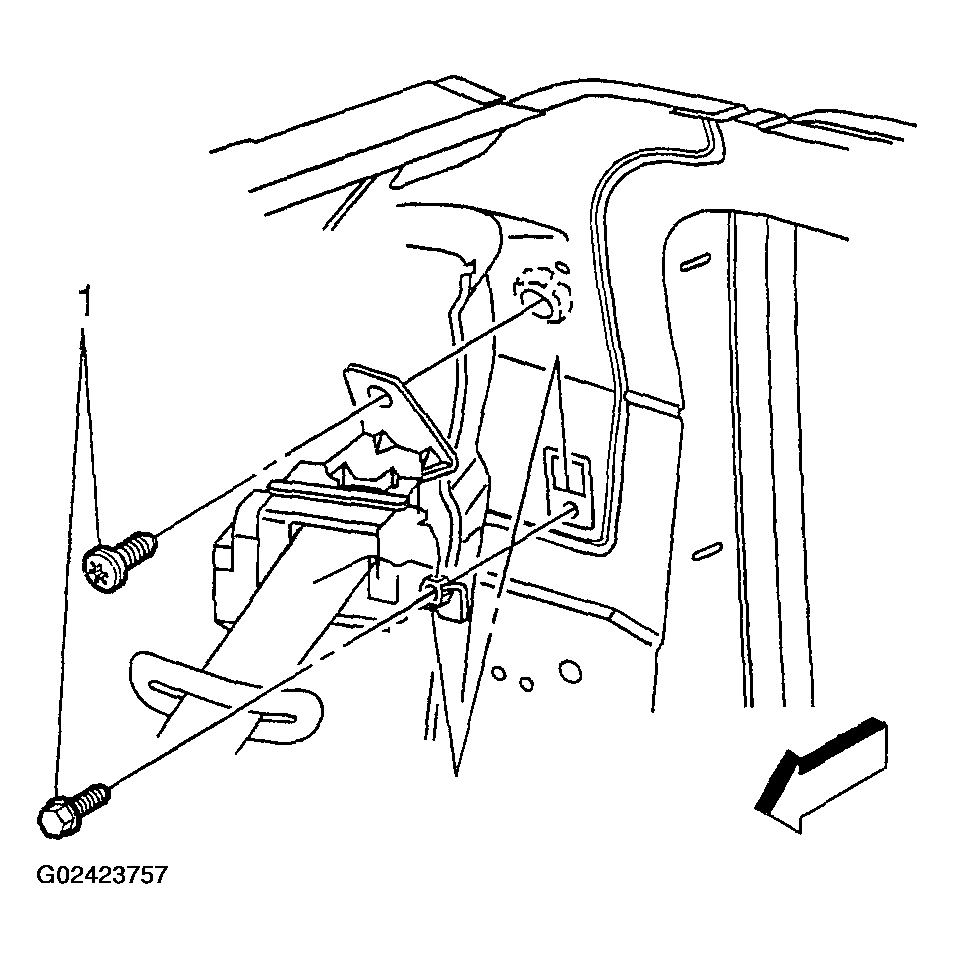

    Fig 1: Installing No. 5 Right Rear Seat Belt Retractor
    G02423757Courtesy of GENERAL MOTORS CORP.
