Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt retractor to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat belt retractor retaining bolts to the vehicle.

    Tighten

    • Tighten the seat belt retractor upper retaining bolt to 52 N.m (38 lb ft).
    • Tighten the seat belt retractor lower retaining bolt to 10 N.m (89 lb in).
  3. Install the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
  4. Secure the seat belt escutcheon to the rear corner garnish molding.

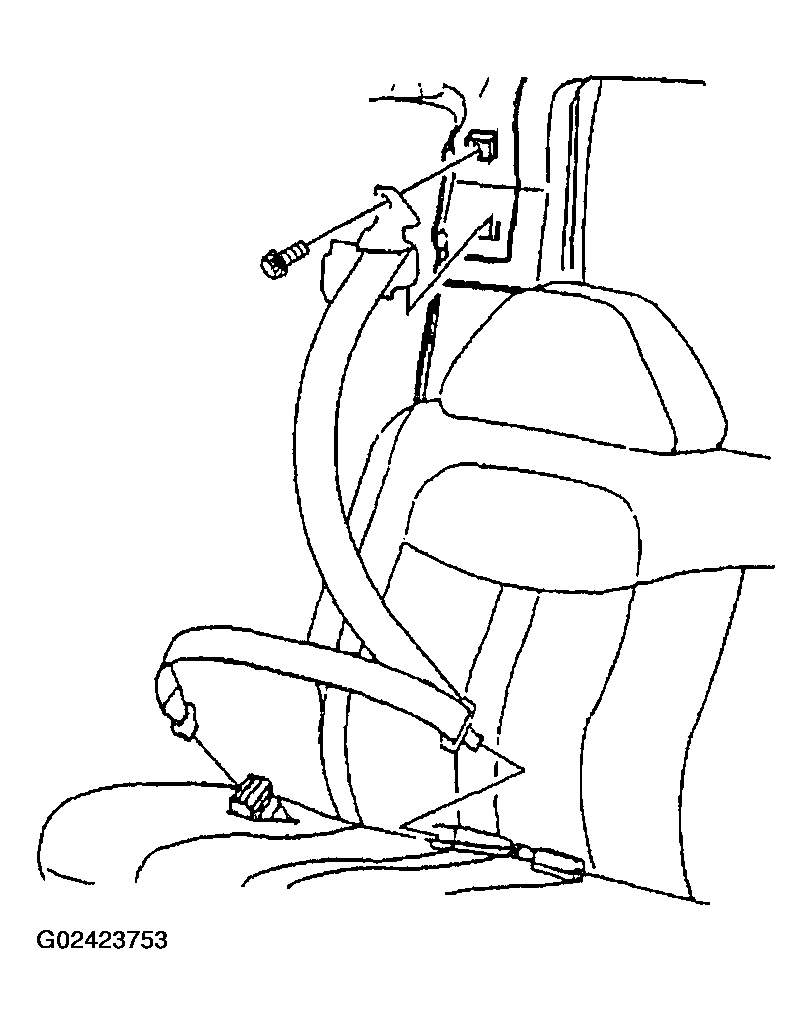

    Fig 1: Installing No. 4 Right Rear Seat Belt Retractor
    G02423753Courtesy of GENERAL MOTORS CORP.
