Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt retractor to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat belt retractor retaining bolt to the vehicle.

    Tighten

    Tighten the seat belt retractor retaining bolt to 52 N.m (38 lb ft).

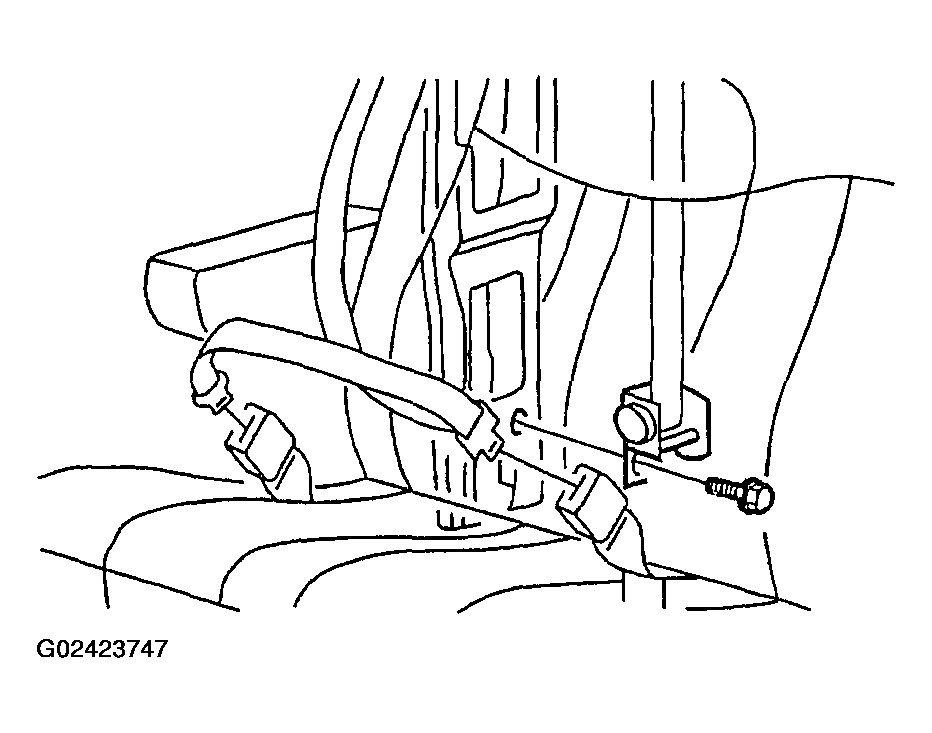

    Fig 1: Installing No. 3 Right Rear Seat Belt Retractor
    G02423747Courtesy of GENERAL MOTORS CORP.
  3. Install the seat belt guide to the vehicle.
  4. Install the seat belt guide retaining bolt to the vehicle.

    Tighten

    Tighten the seat belt guide retaining bolt to 52 N.m (38 lb ft).

  5. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .

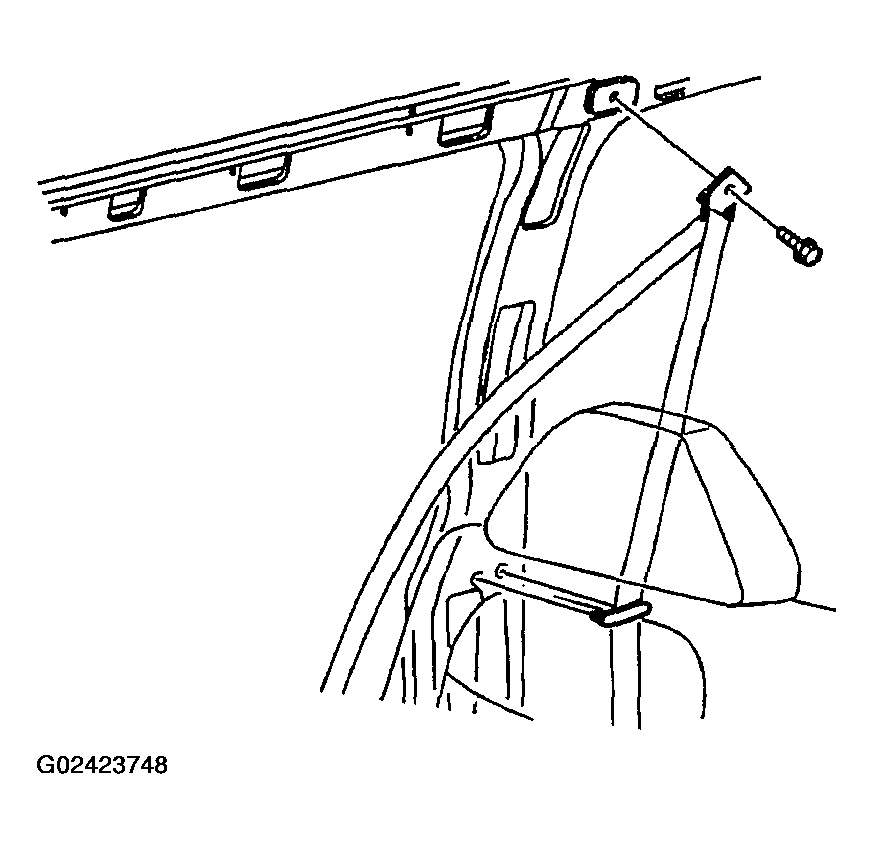

    Fig 2: Installing Seat Belt Guide
    G02423748Courtesy of GENERAL MOTORS CORP.
  6. Install the upper seat belt trim cover (1).
  7. Install the upper seat belt trim cover retainers (2).
    Fig 3: Installing Upper Seat Belt Trim Cover & Retainers
    G02423749Courtesy of GENERAL MOTORS CORP.
