Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper seat belt trim cover.
    Fig 1: Removing Upper Seat Belt Trim Cover
    G02423732Courtesy of GENERAL MOTORS CORP.
  2. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  3. Remove the upper seat belt guide retaining bolt from the seat belt guide.
  4. Remove the upper seat belt guide from the vehicle.

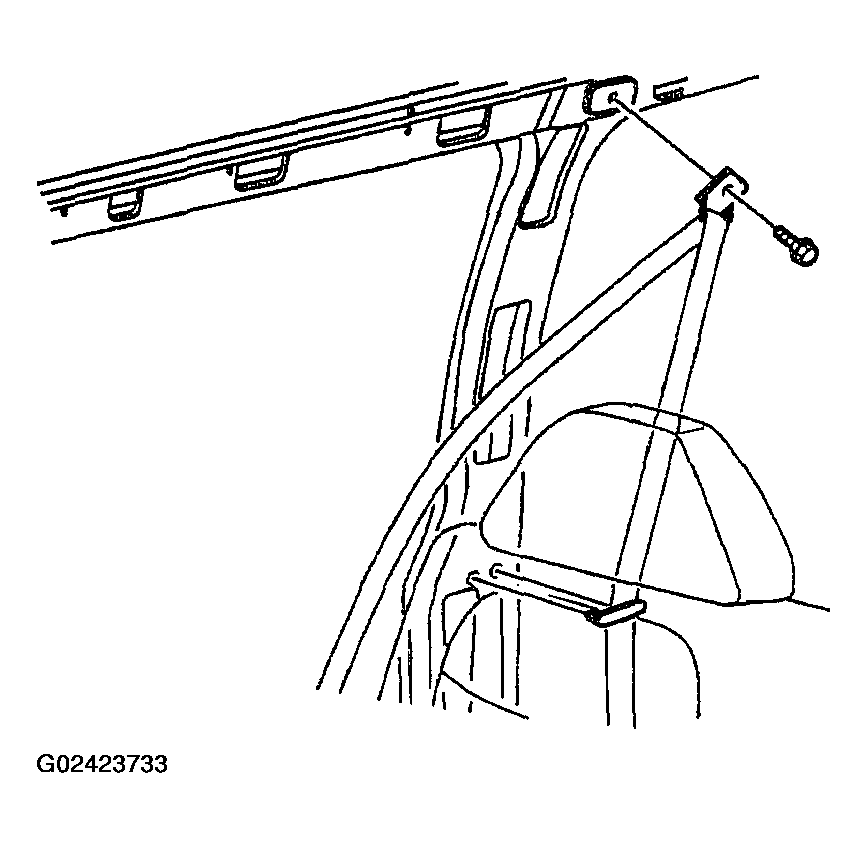

    Fig 2: Removing Upper Seat Belt Guide
    G02423733Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat belt retractor retaining bolt from the vehicle.
  6. Remove the seat belt retractor from the vehicle.

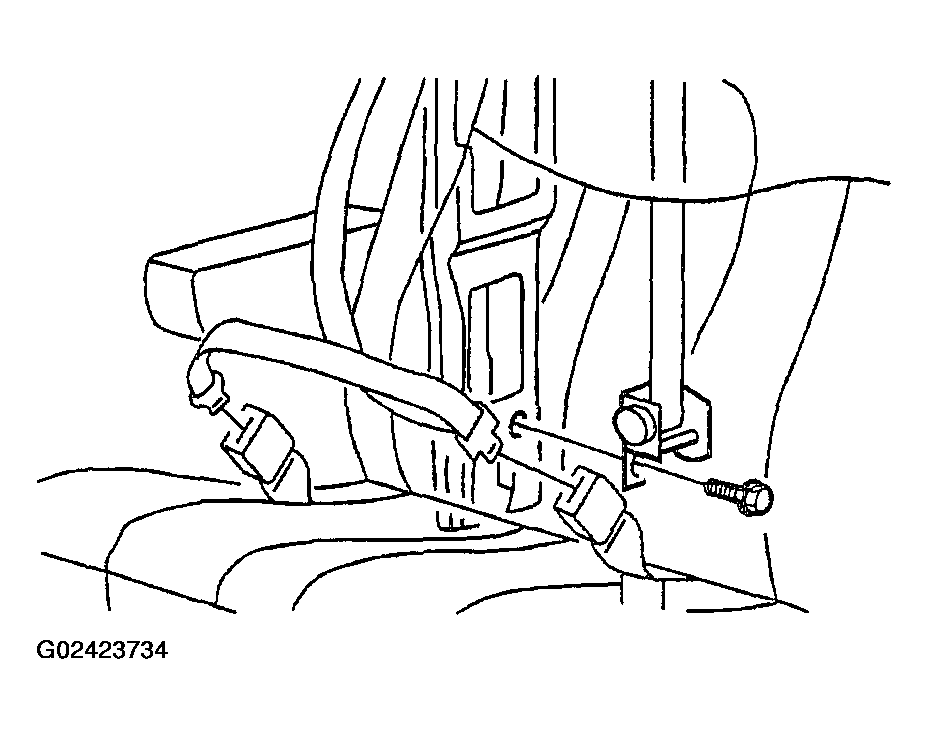

    Fig 3: Removing No. 2 Right Rear Seat Belt Retractor
    G02423734Courtesy of GENERAL MOTORS CORP.
