Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt upper trim cover retainers (2).
  2. Remove the seat belt upper trim cover (1)
    Fig 1: Removing Seat Belt Upper Trim Cover Retainers & Cover
    G02423726Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper seat belt guide retaining bolt from the seat belt guide.
  4. Remove the upper seat belt guide from the vehicle.

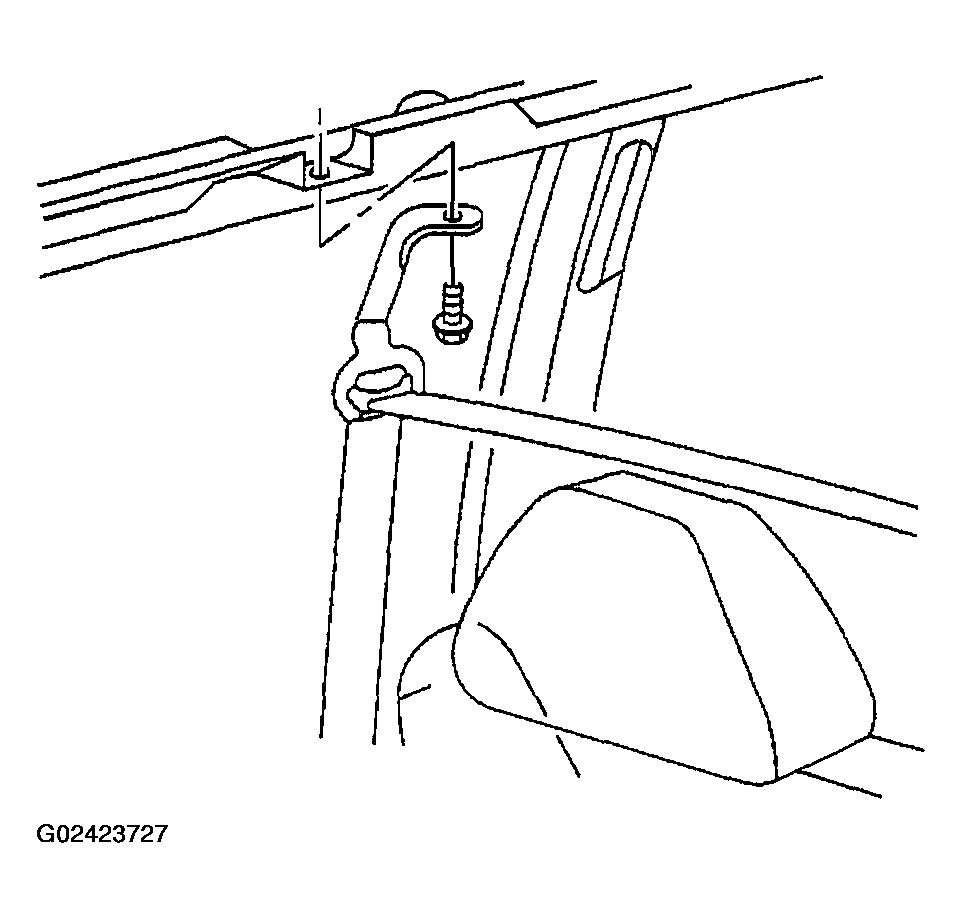

    Fig 2: Removing Upper Seat Belt Guide
    G02423727Courtesy of GENERAL MOTORS CORP.
  5. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE .
  6. Remove the seat belt retractor retaining bolt from the vehicle.
  7. Remove the seat belt retractor from the vehicle.

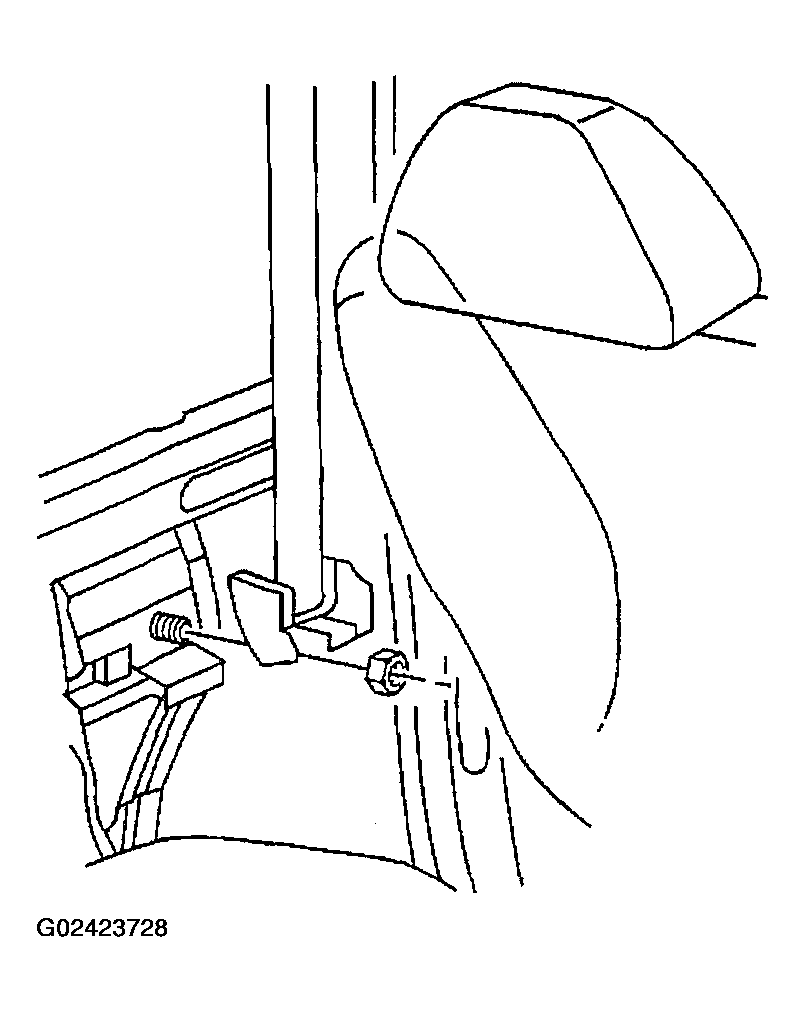

    Fig 3: Removing No. 2 Left Rear Seat Belt Retractor
    G02423728Courtesy of GENERAL MOTORS CORP.
