Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center seat belt retractor seat belt opening trim (1).
    Fig 1: Removing Center Seat Belt Retractor Seat Belt Opening Trim
    G02423716Courtesy of GENERAL MOTORS CORP.
  2. Remove the center seat belt retractor trim cover bolt (1).
  3. Remove the center seat belt retractor trim cover (2).
    Fig 2: Removing Center Seat Belt Retractor Trim Cover
    G02423717Courtesy of GENERAL MOTORS CORP.
  4. Carefully pull the rear seat back trim down enough to expose the center seat belt retractor bolt.
  5. Remove the seat belt center retractor bolt.
    Fig 3: Removing Seat Belt Center Retractor Bolt
    G02423718Courtesy of GENERAL MOTORS CORP.
  6. Slide the center seat belt retractor up and out of the key hole slots on the seat back frame.
    Fig 4: Removing Center Seat Belt Retractor
    G02423719Courtesy of GENERAL MOTORS CORP.
  7. Partially remove the seat cushion cover (1) in order to gain access to the center seat belt retractor lower bolt (2).
  8. Remove the center seat belt retractor lower bolt (2).
  9. Remove the center seat belt retractor assembly from the vehicle.

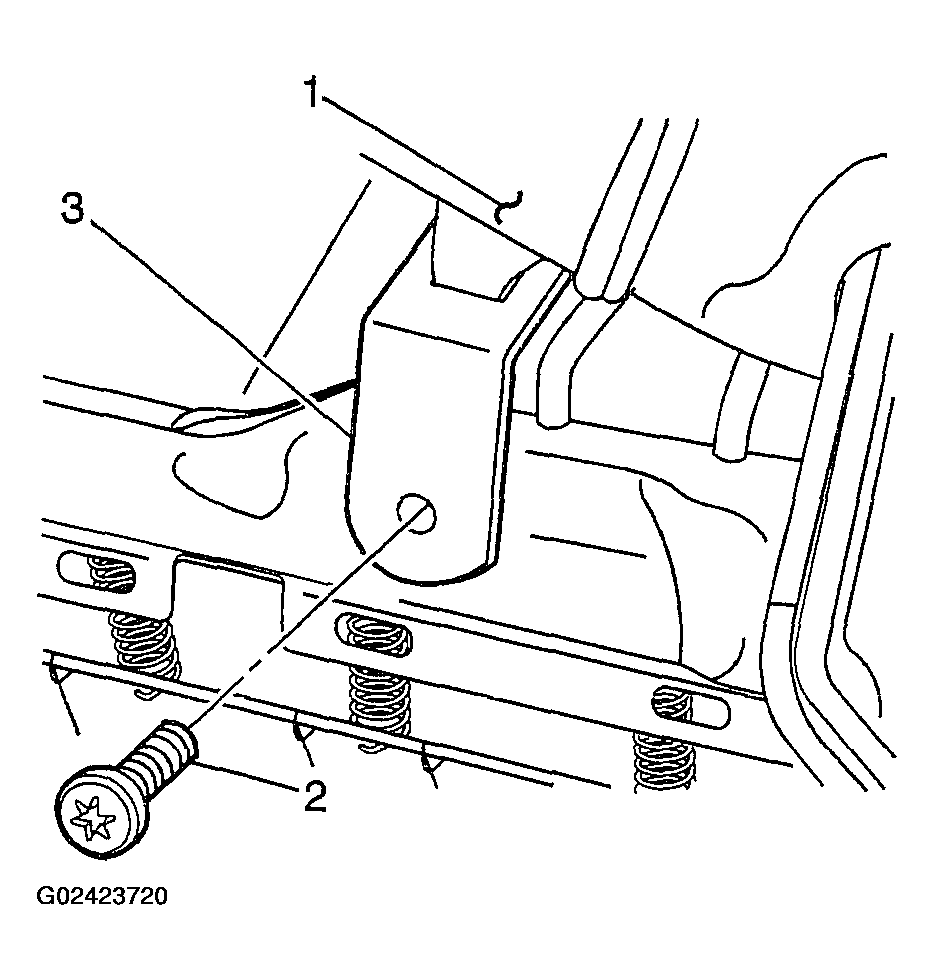

    Fig 5: Removing Center Seat Belt Retractor Bolt
    G02423720Courtesy of GENERAL MOTORS CORP.
