Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, remove the shoulder/seat belt guide to the guide trim cover (1).

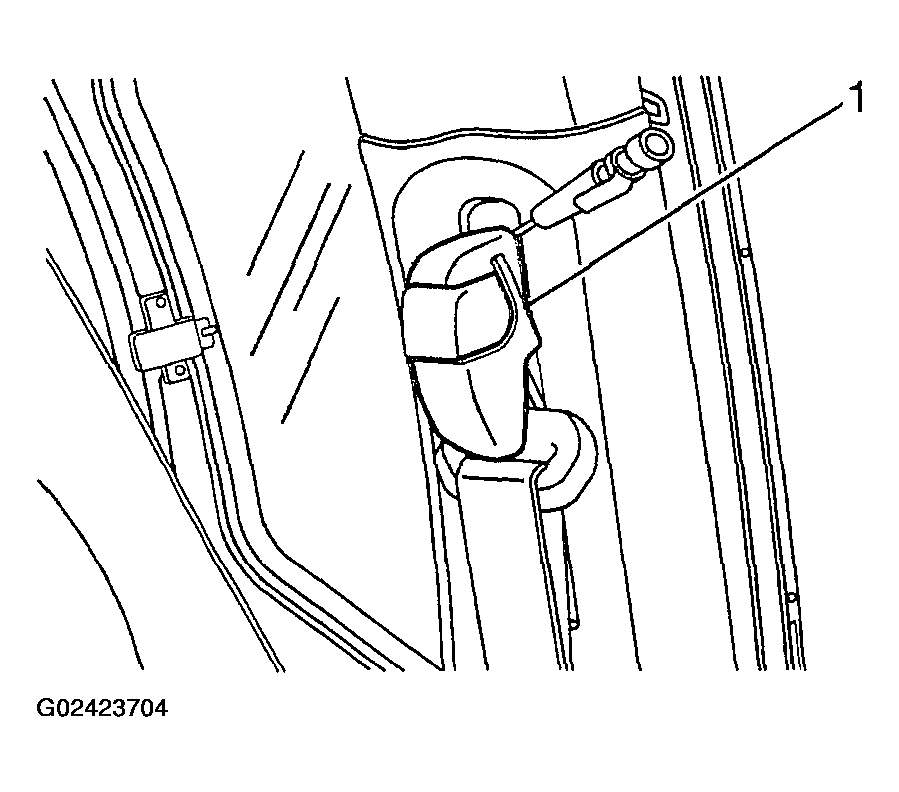

    Fig 1: Removing Shoulder/Seat Belt Guide To Guide Trim Cover
    G02423704Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt retaining the shoulder/seat belt guide to the guide adjuster.
  3. Remove the shoulder/seat belt guide from the guide adjuster.
  4. Remove the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
    Fig 2: Removing Shoulder/Seat Belt Guide
    G02423705Courtesy of GENERAL MOTORS CORP.
  5. Remove the shoulder/seat belt guide adjuster retaining bolts from the pillar.
  6. Remove the shoulder/seat belt guide adjuster from the vehicle.

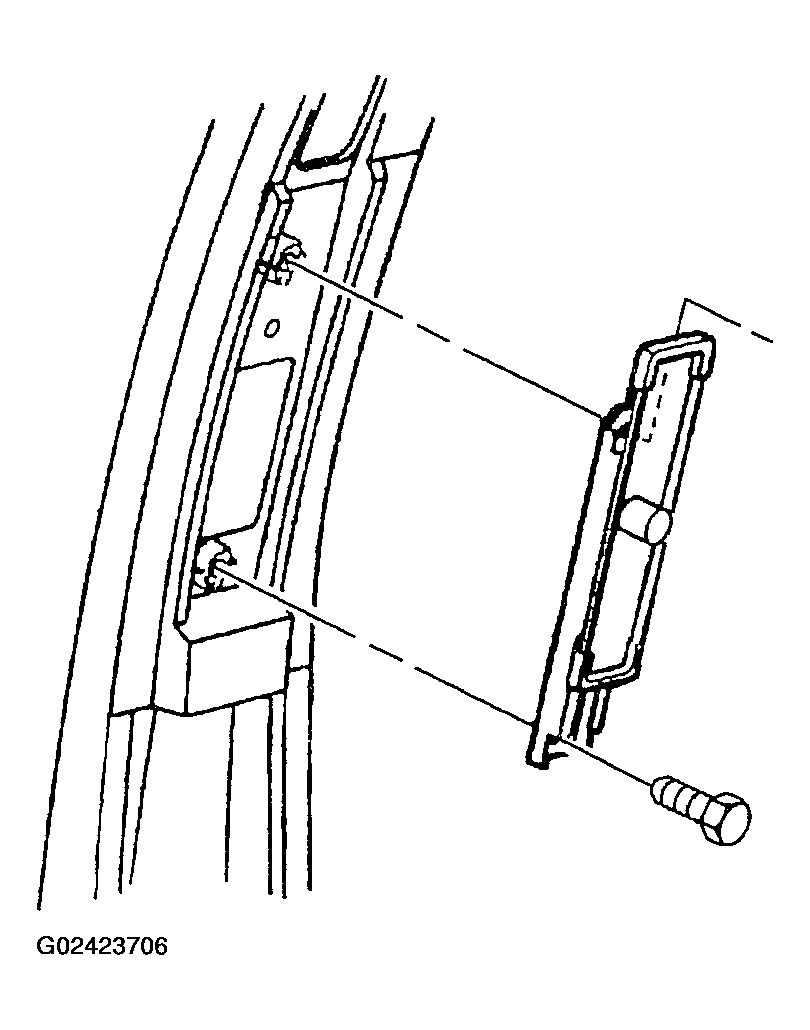

    Fig 3: Removing Shoulder/Seat Belt Guide Adjuster
    G02423706Courtesy of GENERAL MOTORS CORP.
