Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Rear Door - Left  or Trim Panel Replacement - Rear Door - Right  .
  2. Remove the electrical connectors (5) from the lock and the rear door speakers, if equipped.
  3. Remove the wiring harness retainers (3) from the door.

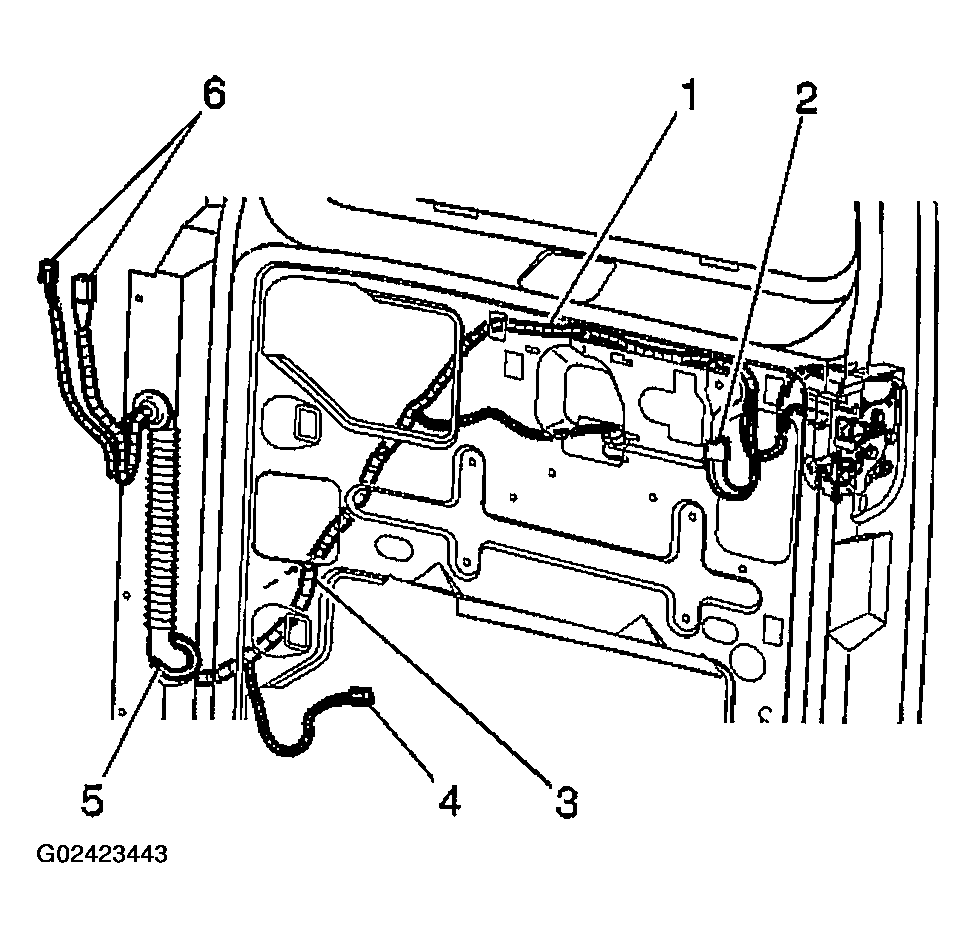

    Fig 1: Removing Electrical Connectors & Wiring Harness Retainers
    G02423443Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiring harness conduit from the door.

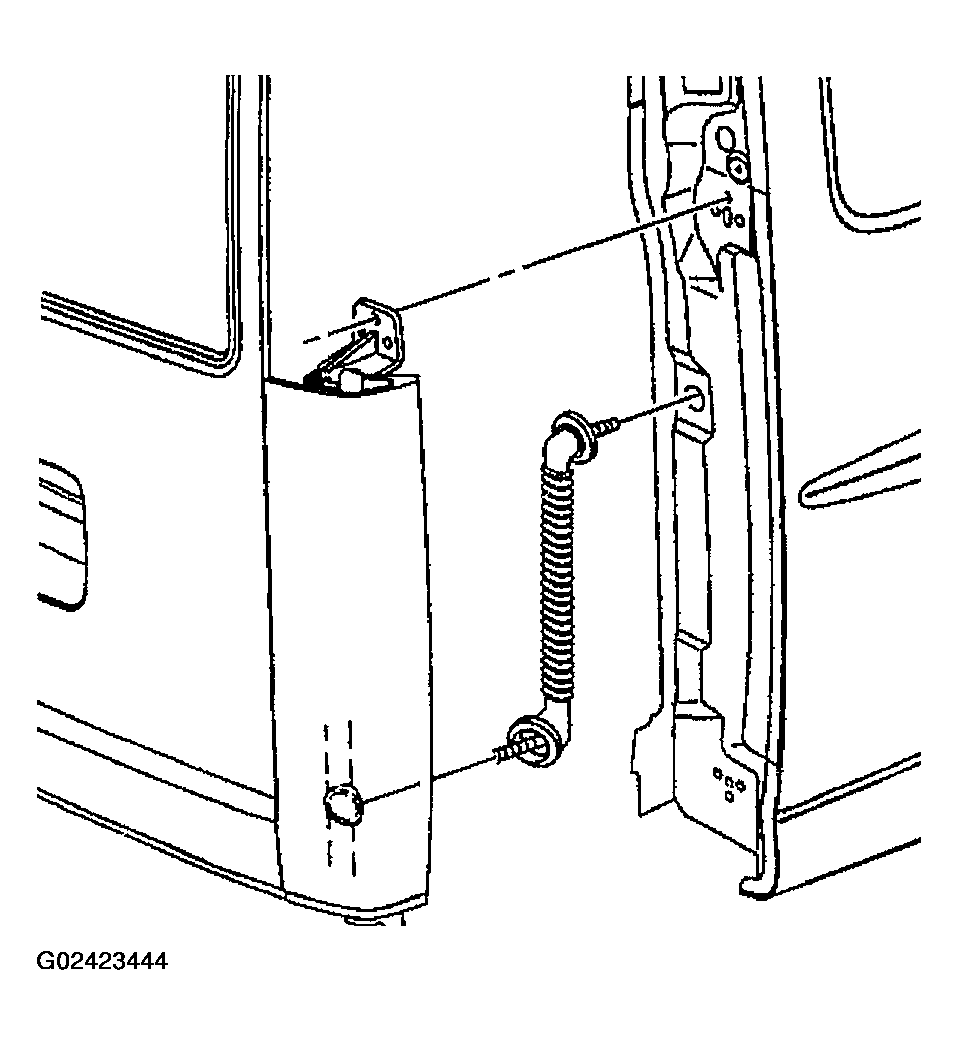

    Fig 2: Removing Wiring Harness Conduit
    G02423444Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiring harness from the door.

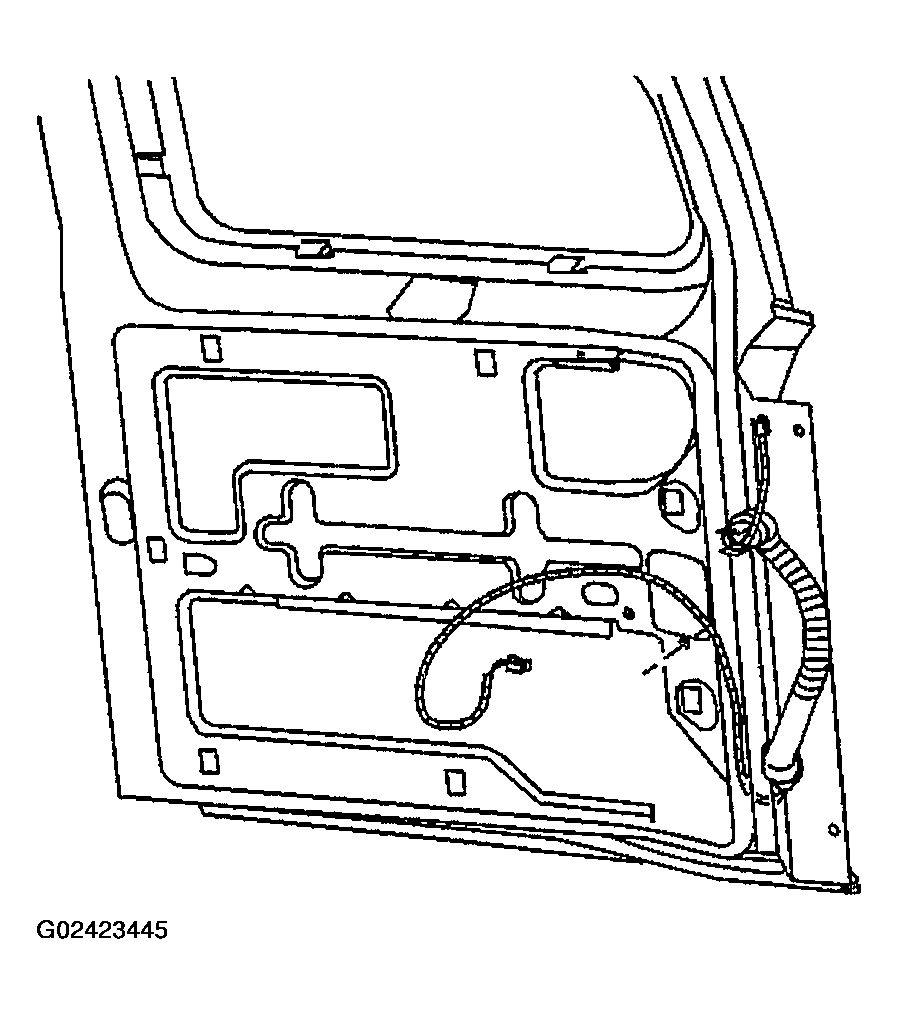

    Fig 3: Removing Door Wiring Harness
    G02423445Courtesy of GENERAL MOTORS CORP.
