Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

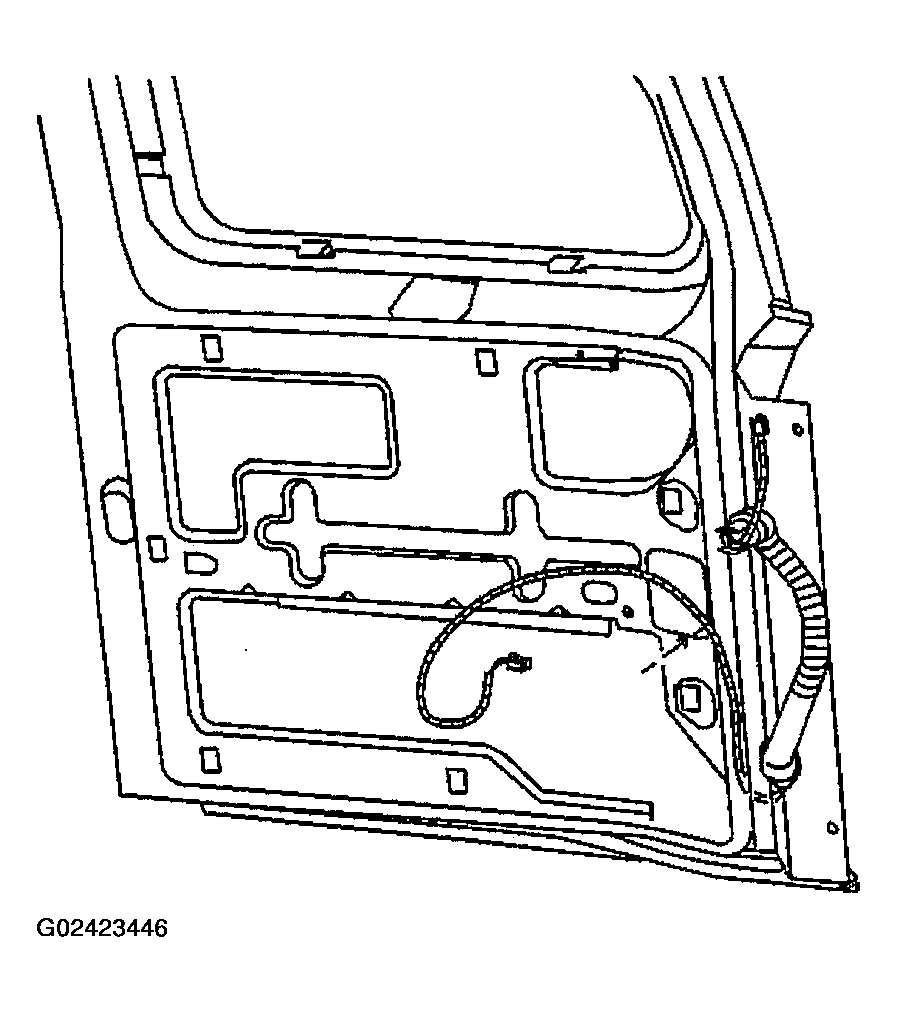

Install the wiring harness to the door.

Fig 1: Installing Door Wiring Harness
Courtesy of GENERAL MOTORS CORP.

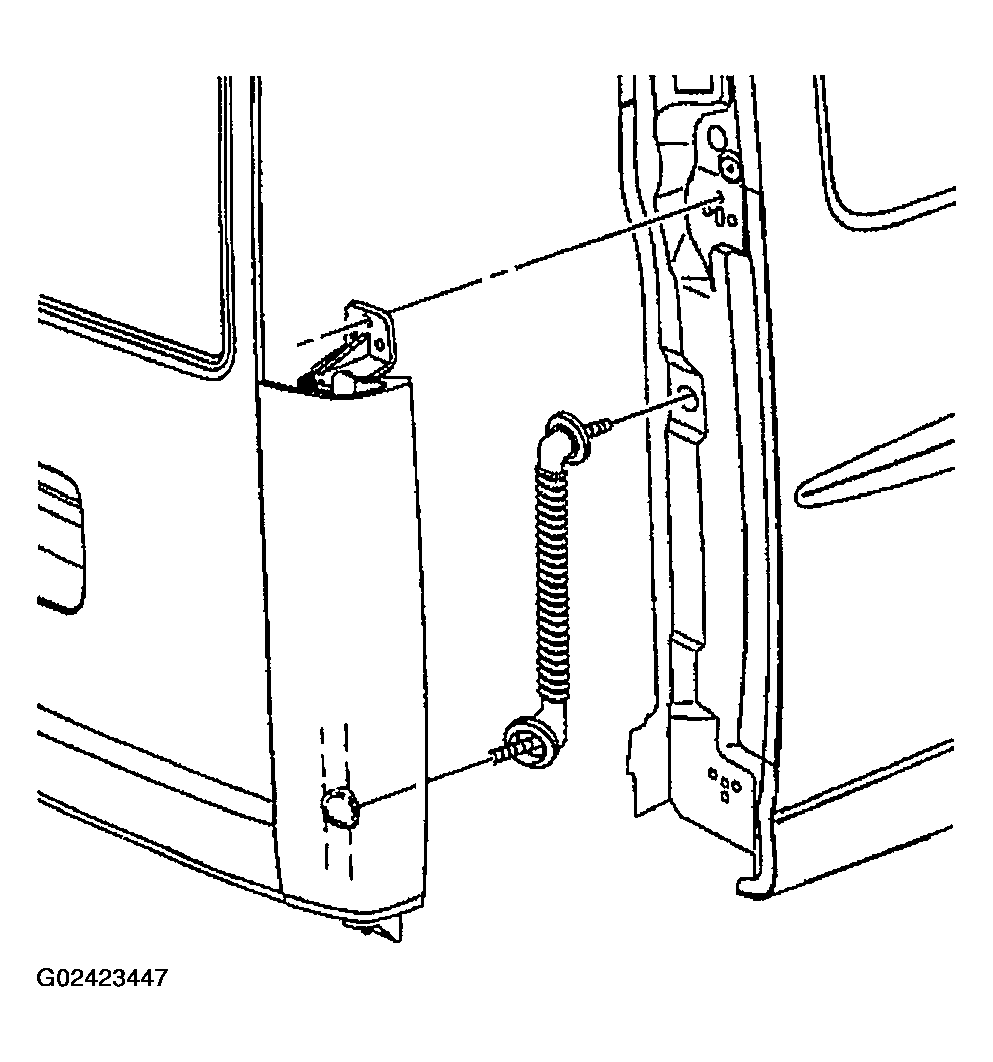

Install the wiring harness conduit to the door.

Fig 2: Installing Wiring Harness Conduit
Courtesy of GENERAL MOTORS CORP.

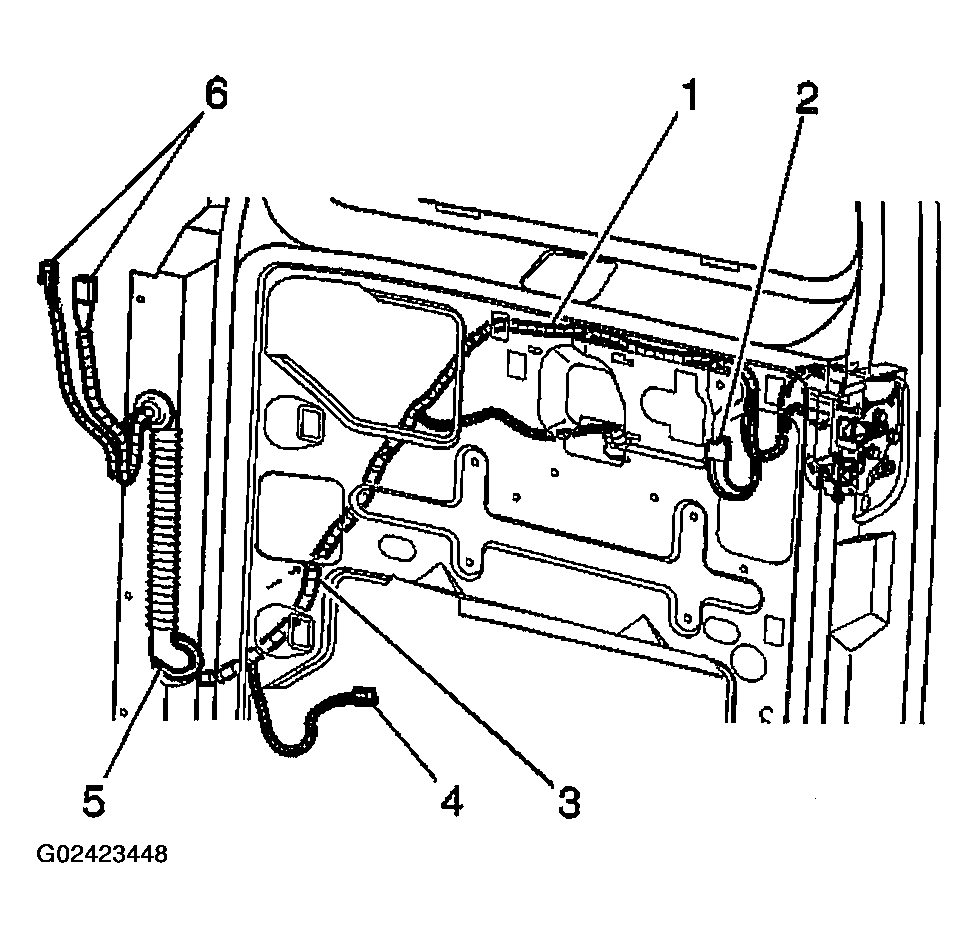

Install the wiring harness retainers (3) to the door.
Install the electrical connectors (5) to the lock and the rear door speakers, if equipped.
Install the rear door trim panel. Refer to Trim Panel Replacement - Rear Door - Left or Trim Panel Replacement - Rear Door - Right .

Fig 3: Installing Wiring Harness Retainers & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
