Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use 3M General Purpose Adhesive Cleaner 3M P/N 08987 or the equivalent, if needed, in order to remove the right rear door weatherstrip from the top of the door.
  2. Pull the right rear door weatherstrip in order to remove the weatherstrip from the channel on the side of the door.
  3. Remove the right rear door weatherstrip and the retainers from the bottom of the door.
  4. Clean the door of all of the old adhesive.

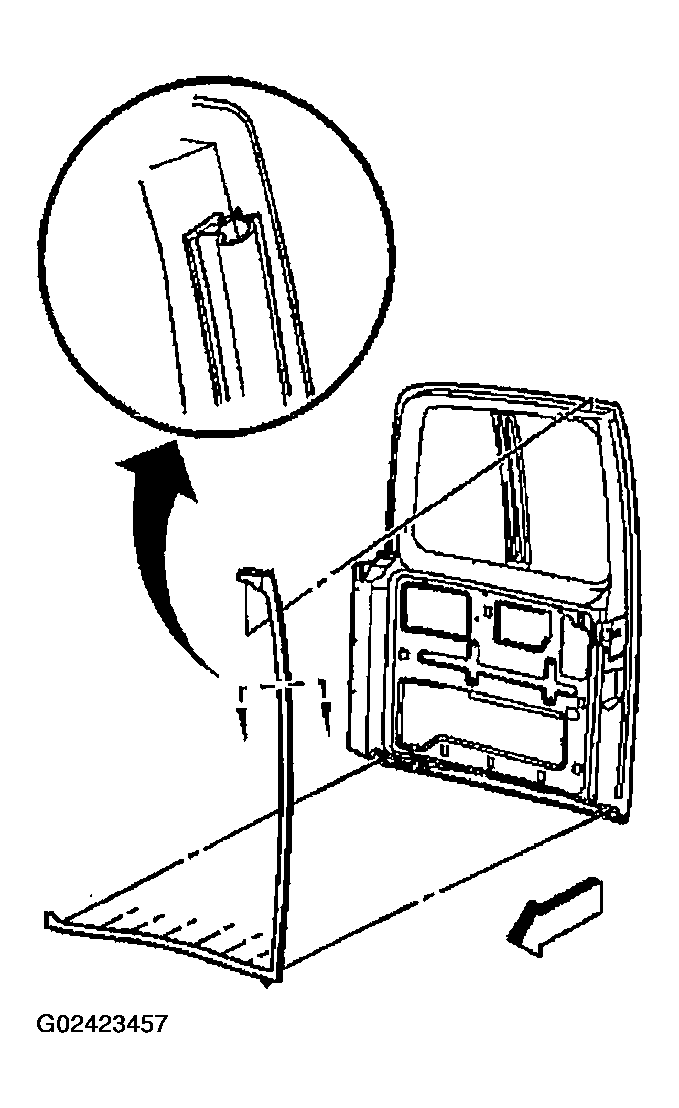

    Fig 1: Removing Right Rear Door Weatherstrip
    G02423457Courtesy of GENERAL MOTORS CORP.
