Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a mild soap and water solution to the right rear door weatherstrip.
  2. Start at the bottom of the channel in the door and slide the right rear door weatherstrip up the channel to the top of the door.
  3. Install the right rear door weatherstrip to the top of the door. Use GM Weatherstrip Adhesive GM P/N 12345097, (Canadian P/N 10953479) or the equivalent, if you are reusing the weatherstrip.
  4. Press the retainers in the right rear door weatherstrip into the holes in the door until fully seated.

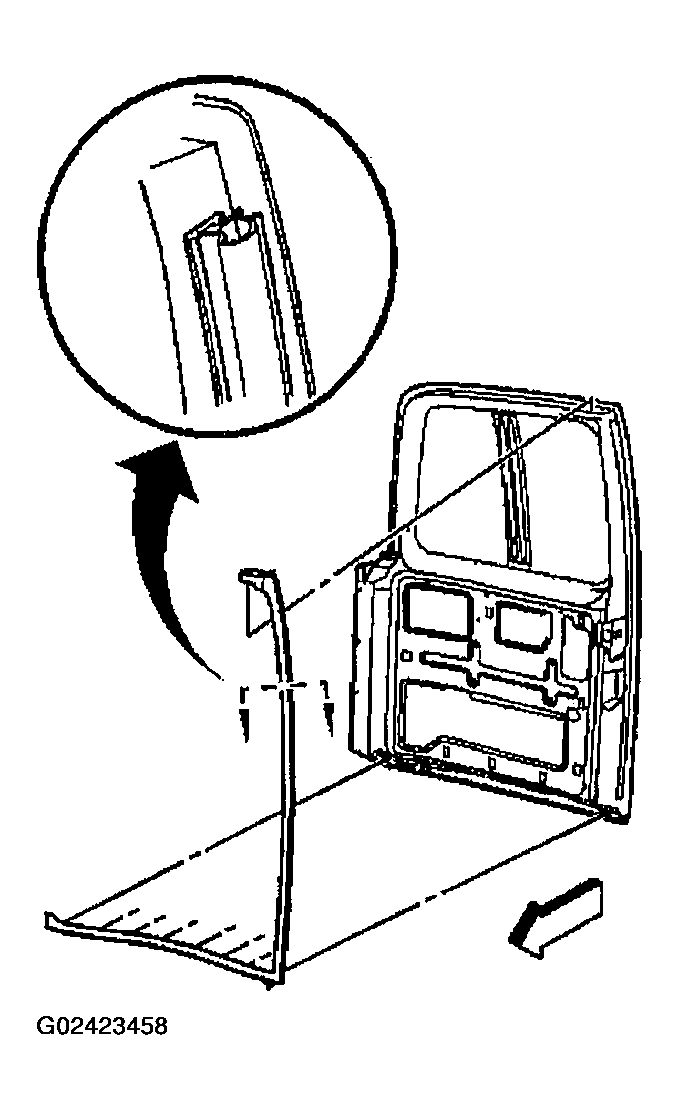

    Fig 1: Installing Right Rear Door Weatherstrip
    G02423458Courtesy of GENERAL MOTORS CORP.
