Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on the right side rear door trim panel with the slots in the door.
  2. Lower the right side rear door trim panel into place.
  3. Align the tabs on the right side rear door trim panel with the retaining clips around the window opening.
  4. Press the right side rear door trim panel in order to engage the retaining clips.
  5. Install the right side rear door trim plate to the right side rear door.
  6. Install the inside door handle bezel. Refer to DOOR TRIM PLATE REPLACEMENT - REAR .

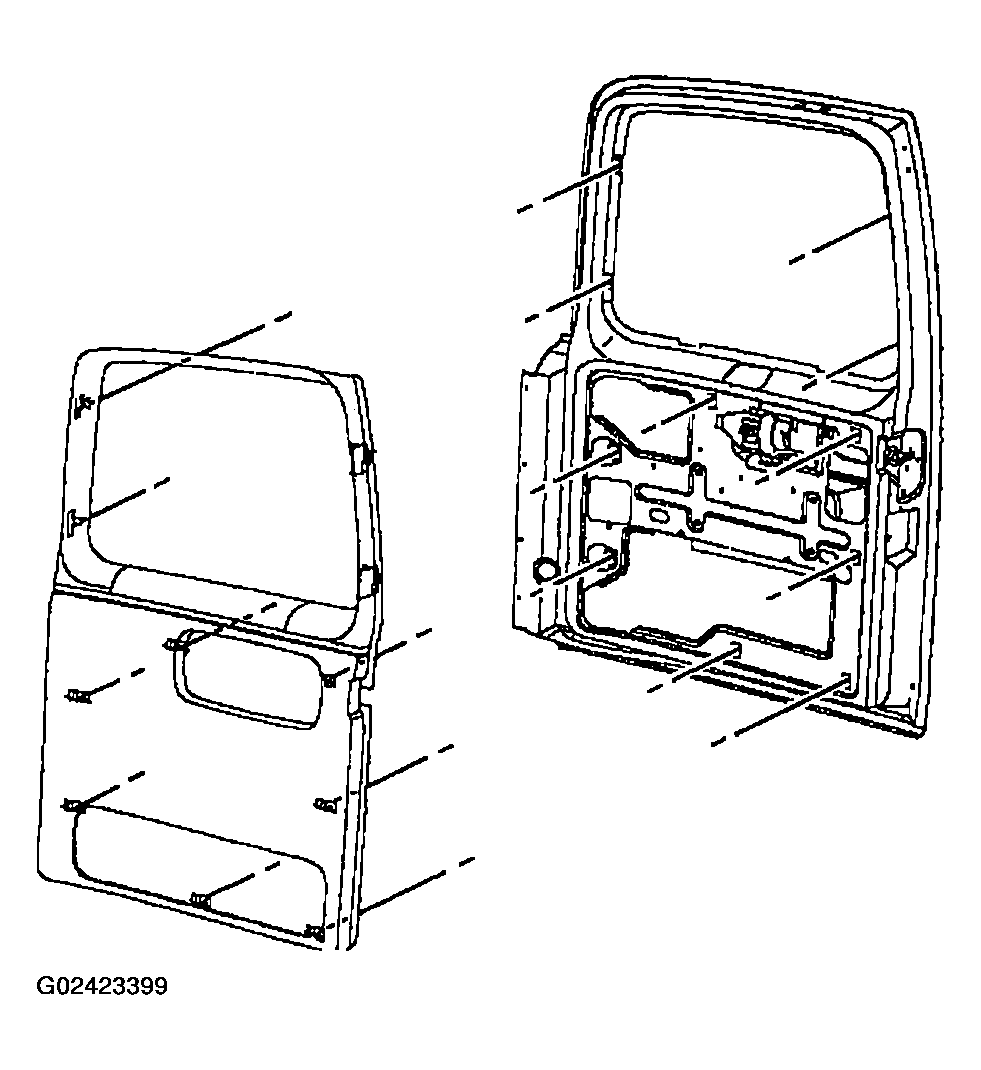

    Fig 1: Installing Right Side Rear Door Trim Panel
    G02423399Courtesy of GENERAL MOTORS CORP.
