Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pull out the trim panel at the top of the window opening. Using a long flat-bladed suitable tool, pry the retaining clips apart in order to disengage the clips.
  2. Lift the left side rear door trim panel up in order to release the tabs on the left side rear door trim panel.
  3. Remove the left side rear door trim panel from the door.

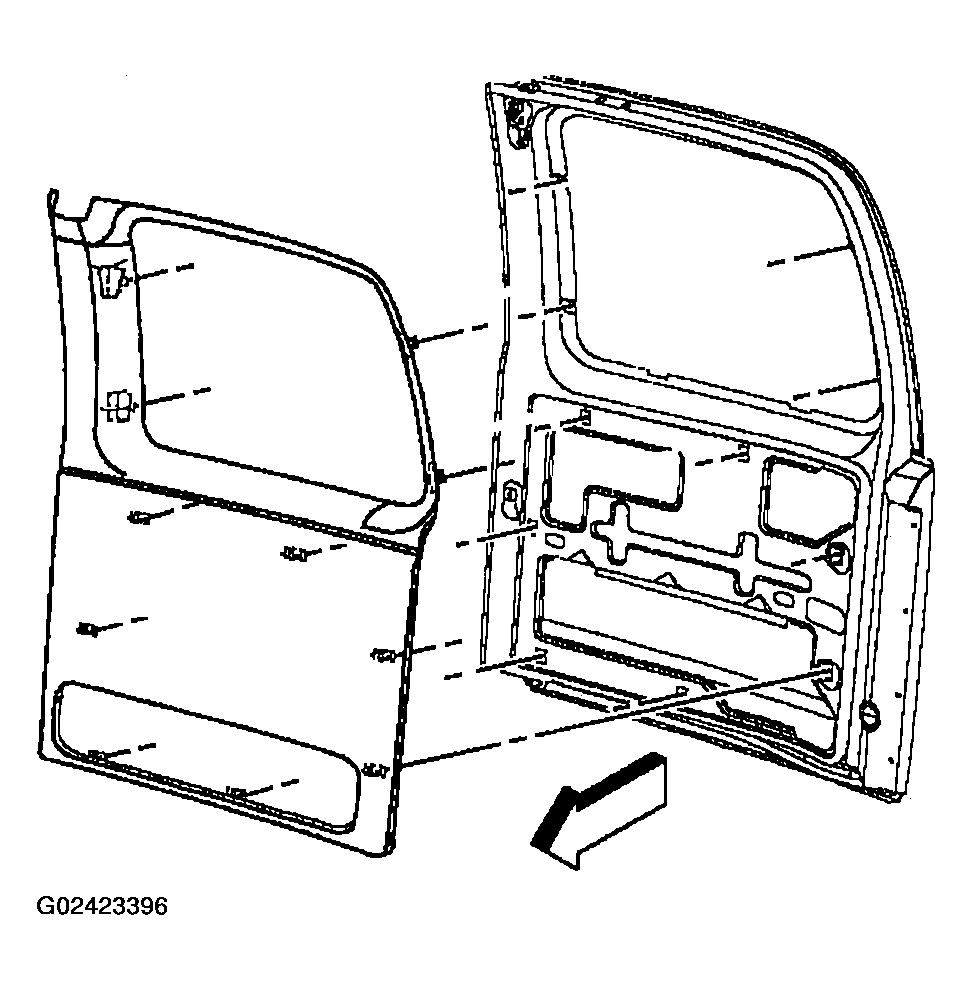

    Fig 1: Removing Left Side Rear Door Trim Panel
    G02423396Courtesy of GENERAL MOTORS CORP.
