Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on the left side rear door trim panel with the slots in the door.
  2. Lower the left side rear door trim panel into place.
  3. Align the tabs on the left side rear door trim panel with the retaining clips around the window opening.
  4. Press the left side rear door trim panel into place in order to engage the retaining clips.

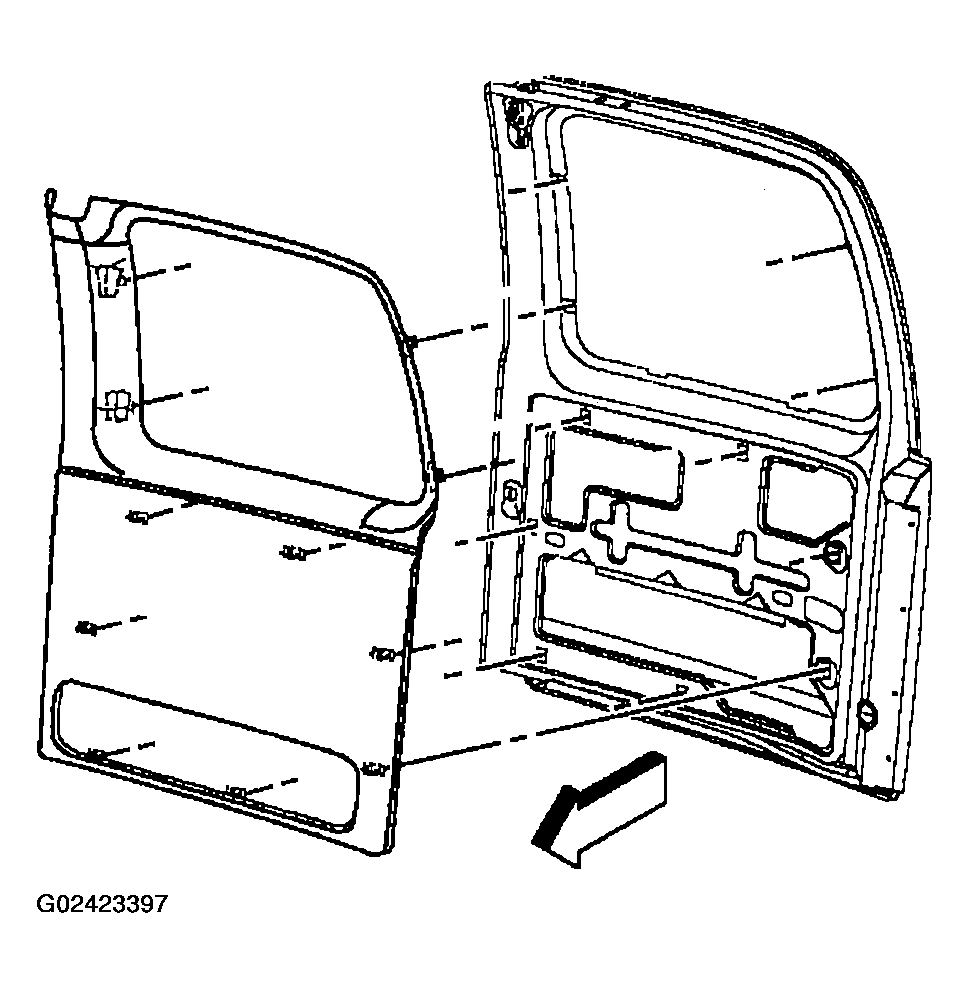

    Fig 1: Installing Left Side Rear Door Trim Panel
    G02423397Courtesy of GENERAL MOTORS CORP.
