Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper quarter panel applique to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the upper quarter panel applique retaining nut to the body.

    Tighten

    Tighten the nut that retains the upper quarter panel applique to 6 N.m (53 lb in).

  3. Install the upper quarter panel applique screw to the body.

    Tighten

    Tighten the screw to 3 N.m (27 lb in).

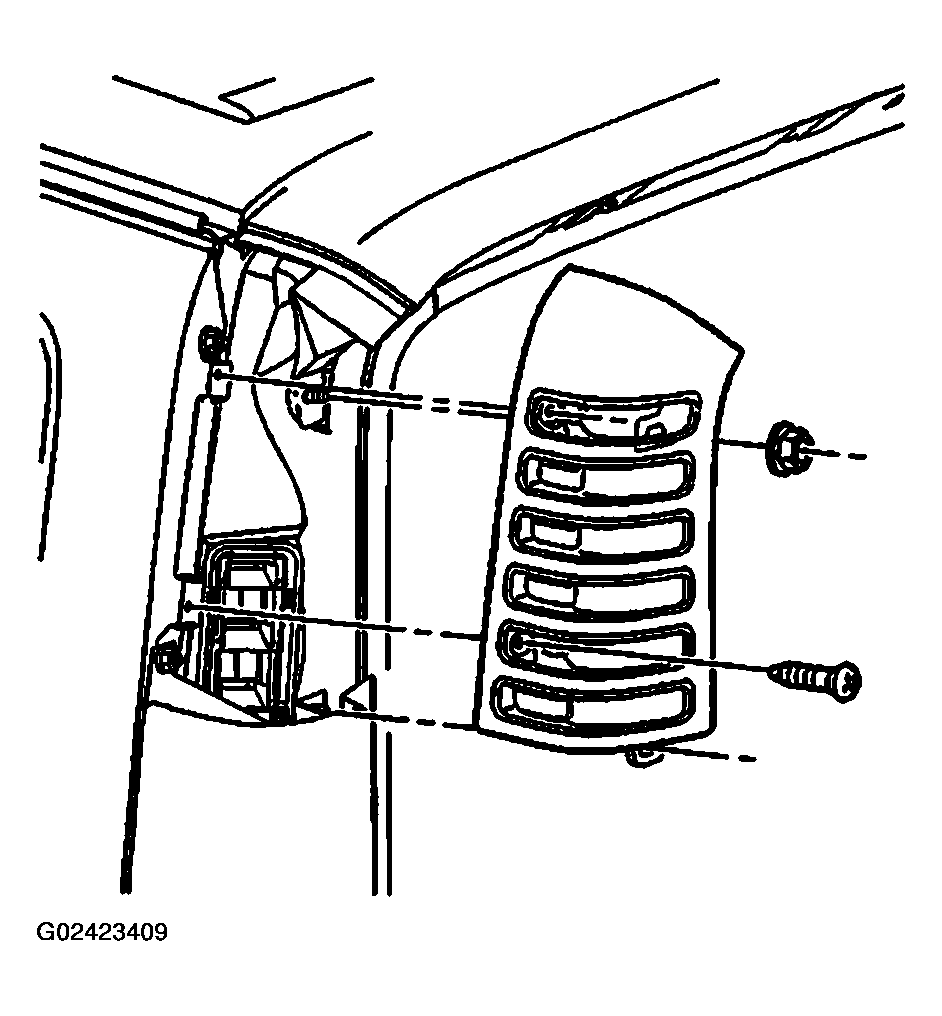

    Fig 1: Installing Upper Quarter Panel Applique
    G02423409Courtesy of GENERAL MOTORS CORP.
