Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts (5) that retain the door lock striker (4) to the left rear door.
  2. Remove the door lock striker (4) from the left rear door.

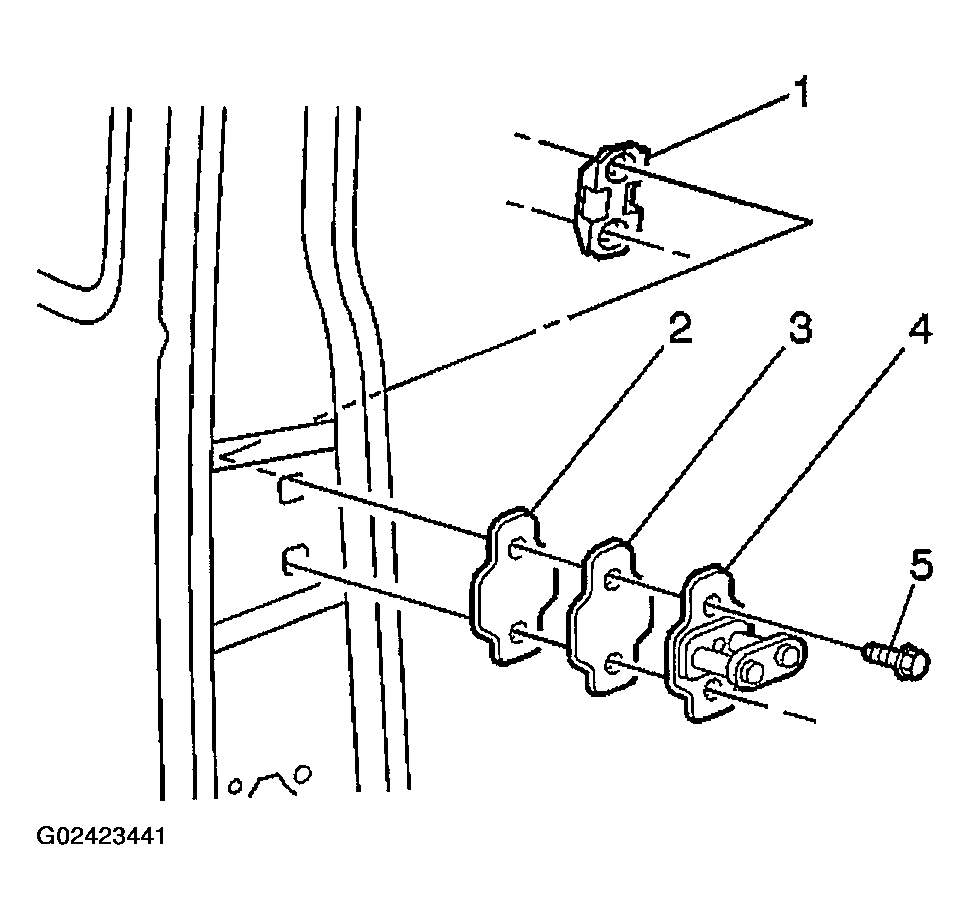

    Fig 1: Removing Door Lock Striker
    G02423441Courtesy of GENERAL MOTORS CORP.
