Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the door lock striker (4) to the left rear door.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (5) in order to retain the door lock striker (4) to the left rear door.

    Tighten

    Tighten the door lock striker bolts to 24 N.m (18 lb in).

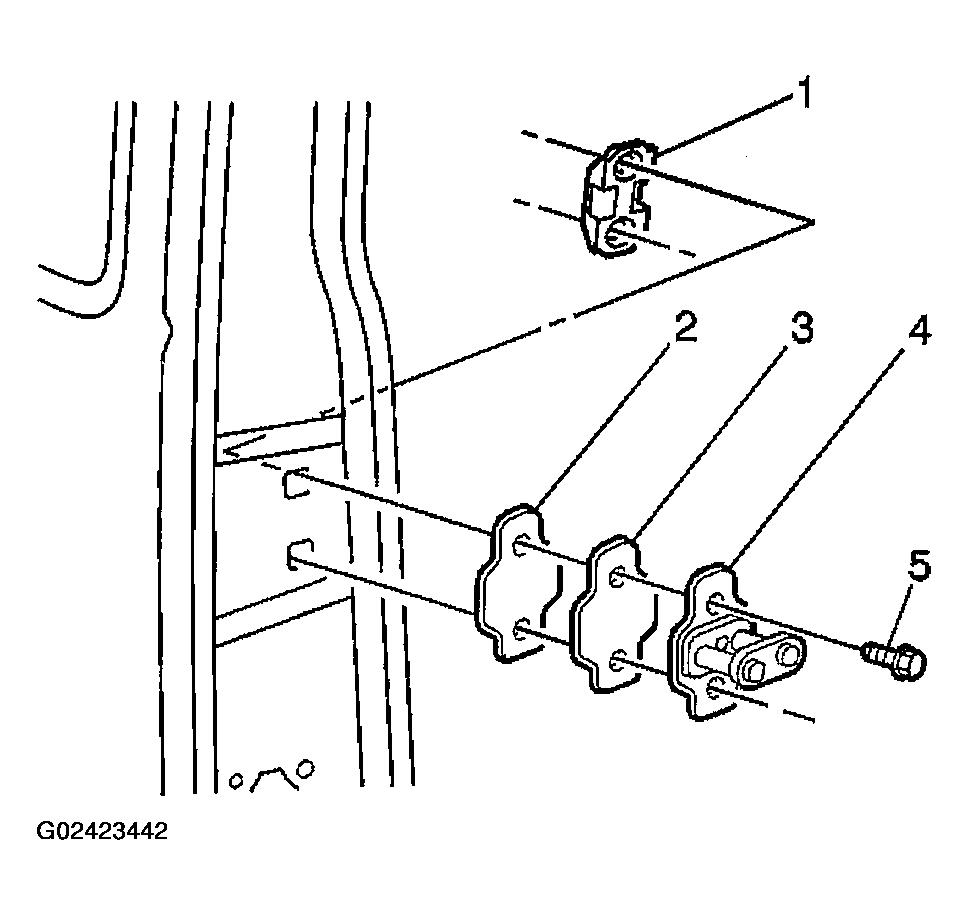

    Fig 1: Installing Door Lock Striker
    G02423442Courtesy of GENERAL MOTORS CORP.
