Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder (3) to the vehicle.
  2. Press the lock cylinder (3) into the handle in order to engage the lock cylinder retainer.
  3. Install the clip in order to retain the lock cylinder lever to the lock cylinder (3).
  4. Install the outside door handle (1). Refer to Handle And License Pocket - Rear Door Outside .
  5. Install the right side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 60 DOOR) .

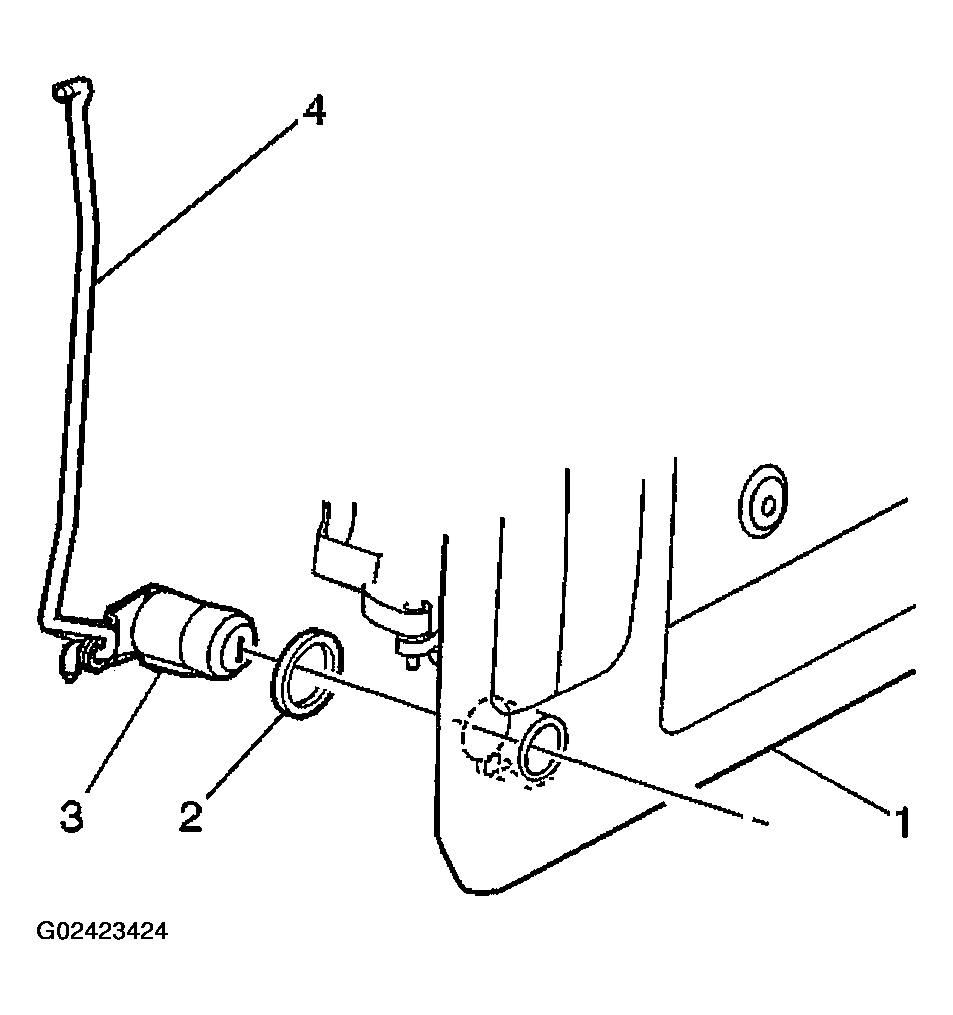

    Fig 1: Installing Rear Door Lock Cylinder
    G02423424Courtesy of GENERAL MOTORS CORP.
