Home >> GMC >> 2006 >> Sierra 1500 HD, RWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 251 (Body Rear End) >> Repair Instructions >> Latch Replacement - Upper >> Removal Procedure

Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 LEFT (E26, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 LEFT (E26, 60 DOOR) .
  2. Remove the lock rod (3) from the left side rear door upper latch (2).
  3. Remove the bolts (1) that retains the left side rear door upper latch (2) to the door.
  4. Remove the left side rear door upper latch (2) from the door.

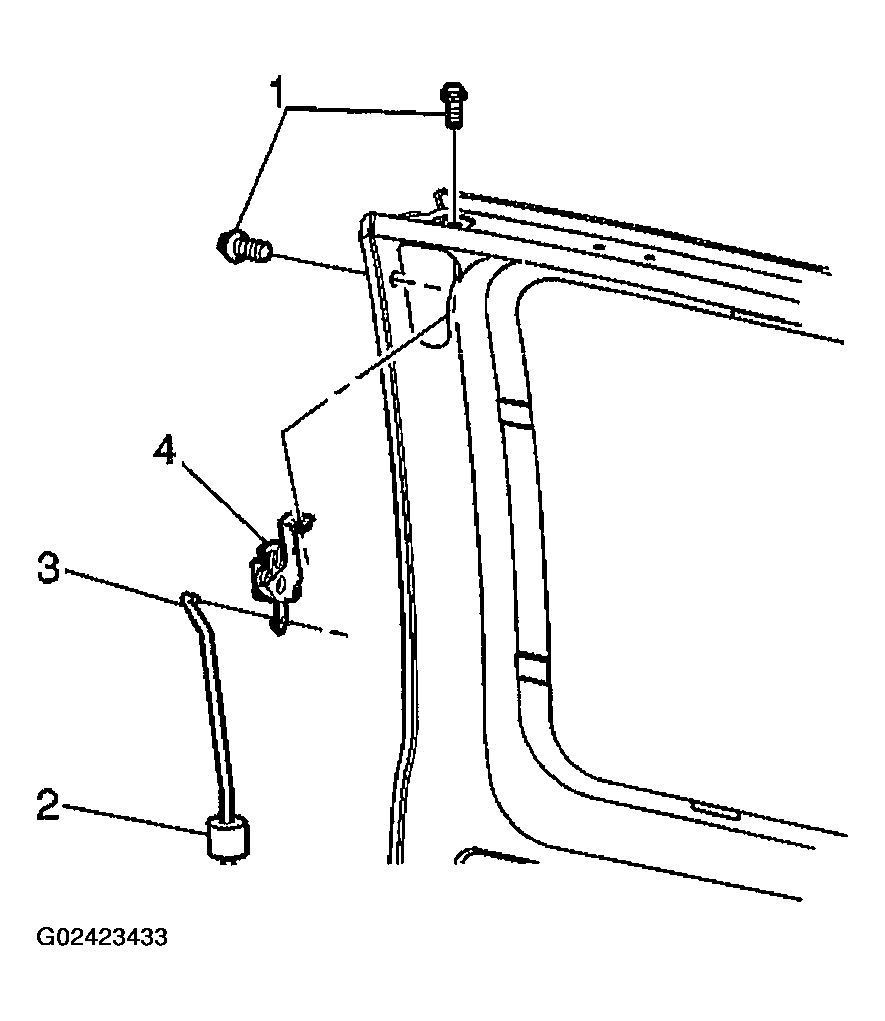

    Fig 1: Removing Left Side Rear Door Upper Latch
    G02423433Courtesy of GENERAL MOTORS CORP.
