Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 LEFT (E26, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 LEFT (E26, 60 DOOR) .
  2. Remove the lock rods from the left side rear door latch handle (4).
  3. Remove the nuts (2) that retain the left side rear door latch handle (4) to the left side rear door.
  4. Remove the left side rear door latch handle (4) from the left side rear door.

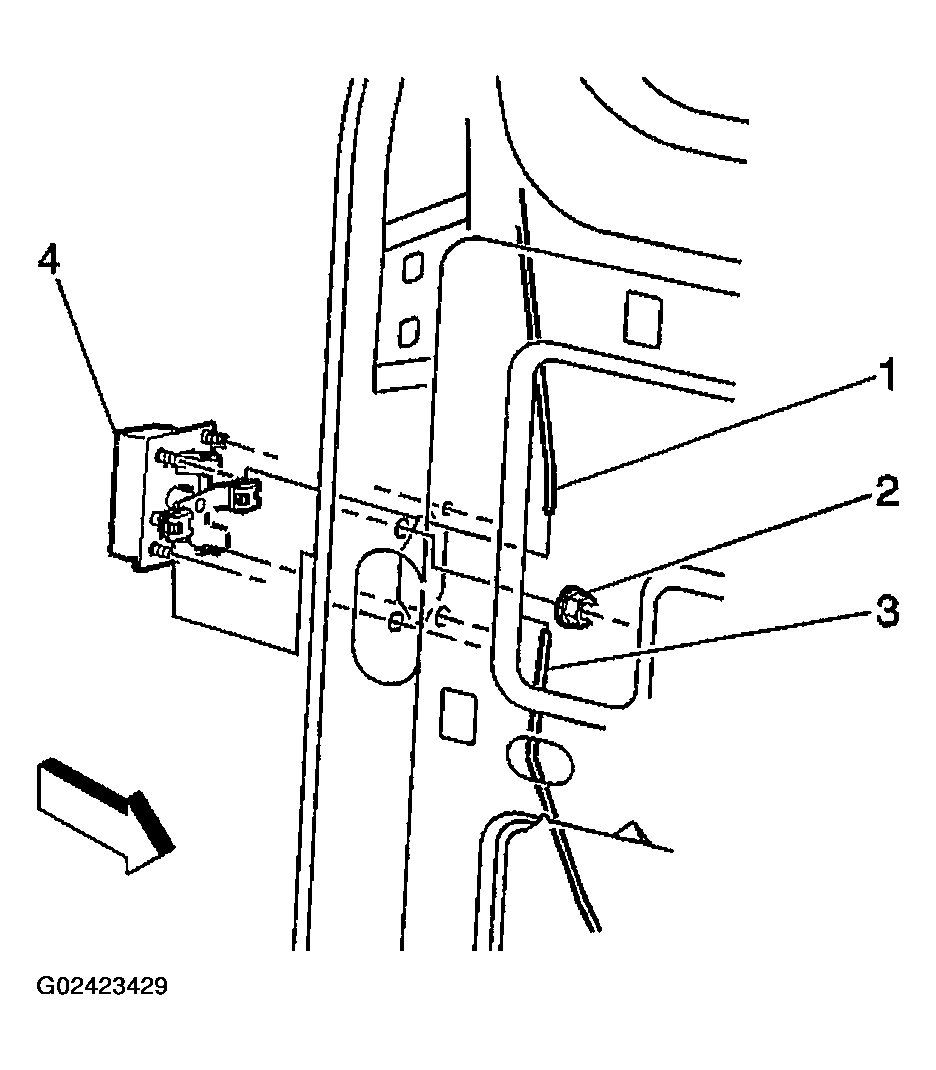

    Fig 1: Removing Left Rear Door Latch Handle
    G02423429Courtesy of GENERAL MOTORS CORP.
