Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left side rear door latch handle (4) to the left side rear door.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the nuts (2) in order to retain the left side rear door latch handle (4) to the left side rear door.

    Tighten

    Tighten the nuts to 11 N.m (97 lb in).

  3. Install the lock rods to the left side rear door latch handle (4).
  4. Install the left side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 LEFT (E26, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 LEFT (E26, 60 DOOR) .

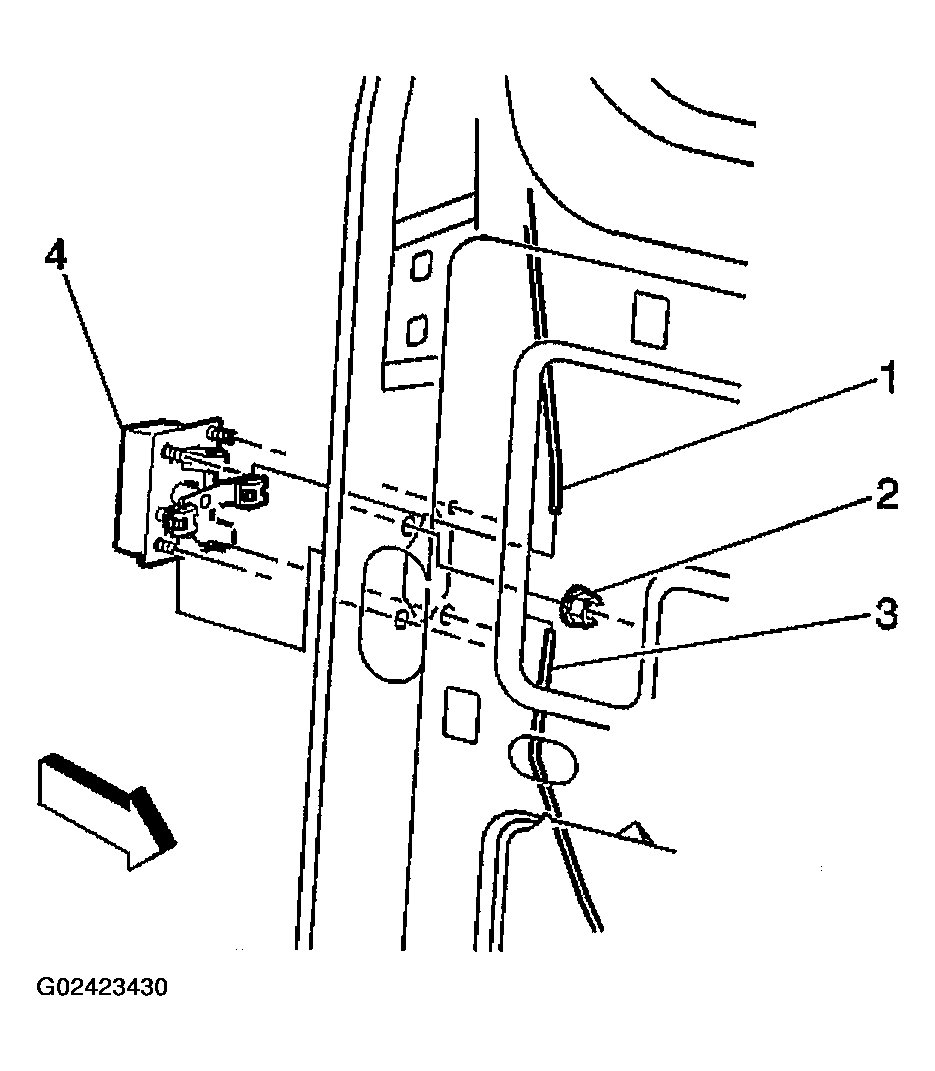

    Fig 1: Installing Left Rear Door Latch Handle
    G02423430Courtesy of GENERAL MOTORS CORP.
