Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Deburr the holes on the inside of the hinge pillar or the door in order to insure the proper seating of the hinge and the backing plate. Inspect the body pillar and the door in order to ensure that the hinge seating zone on the body pillar or the door is flat.
  2. Paint the inner and the outer surfaces of the hinge pillar or the door at the hinge mounting zone.
  3. Coat the mating surface of the hinge with a medium bodied sealer.

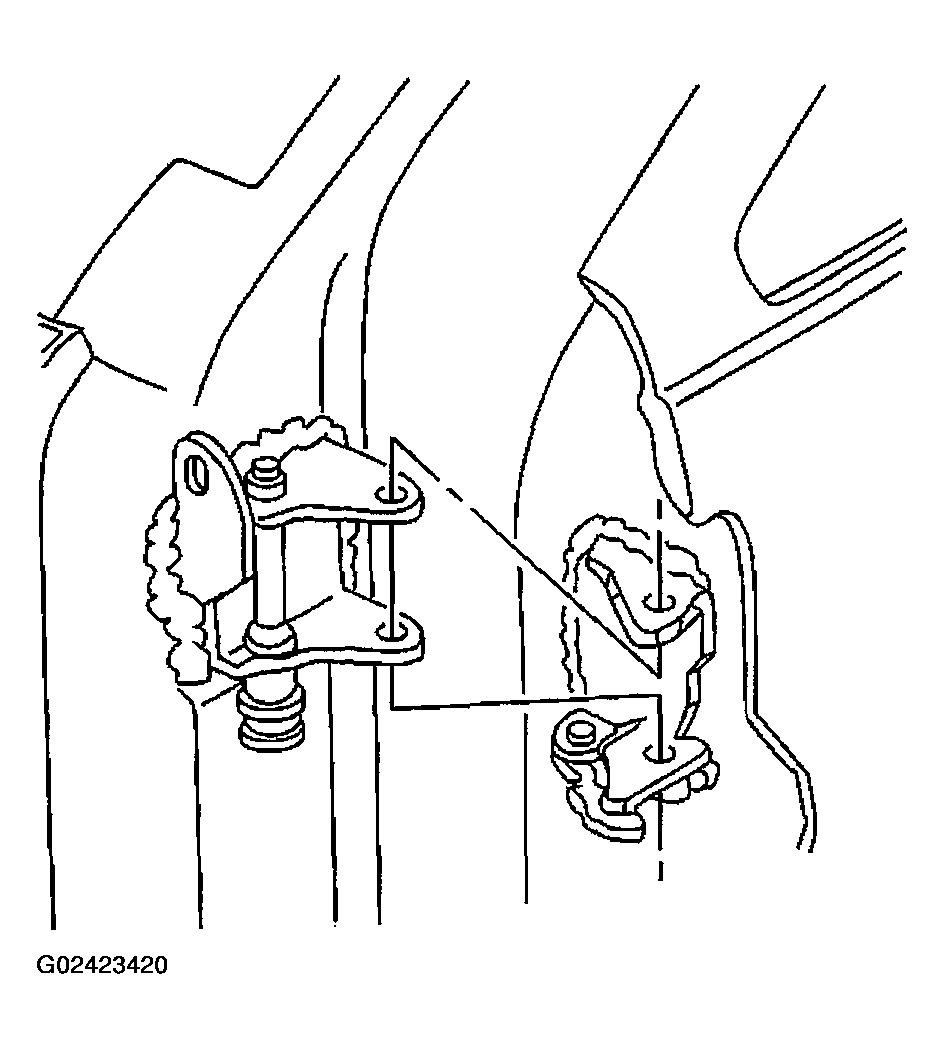

    Fig 1: Ensuring Proper Seating Of Hinge
    G02423420Courtesy of GENERAL MOTORS CORP.
  4. Position the bolt-on service replacement hinges within the scribe marks that were made on the body pillar or the door at the time of removal.
  5. Install the hinge to the body pillar or the door using the bolts and the tapping plate that is supplied with the service replacement kit.
    CAUTION: Refer to FASTENER NOTICE .
  6. Tighten the bolts to the recommended preliminary torque.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  7. Install the door to the body. Align the door as required. Do not close the door completely until you make a visual check in order to determine if the lock will correctly engage the striker.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

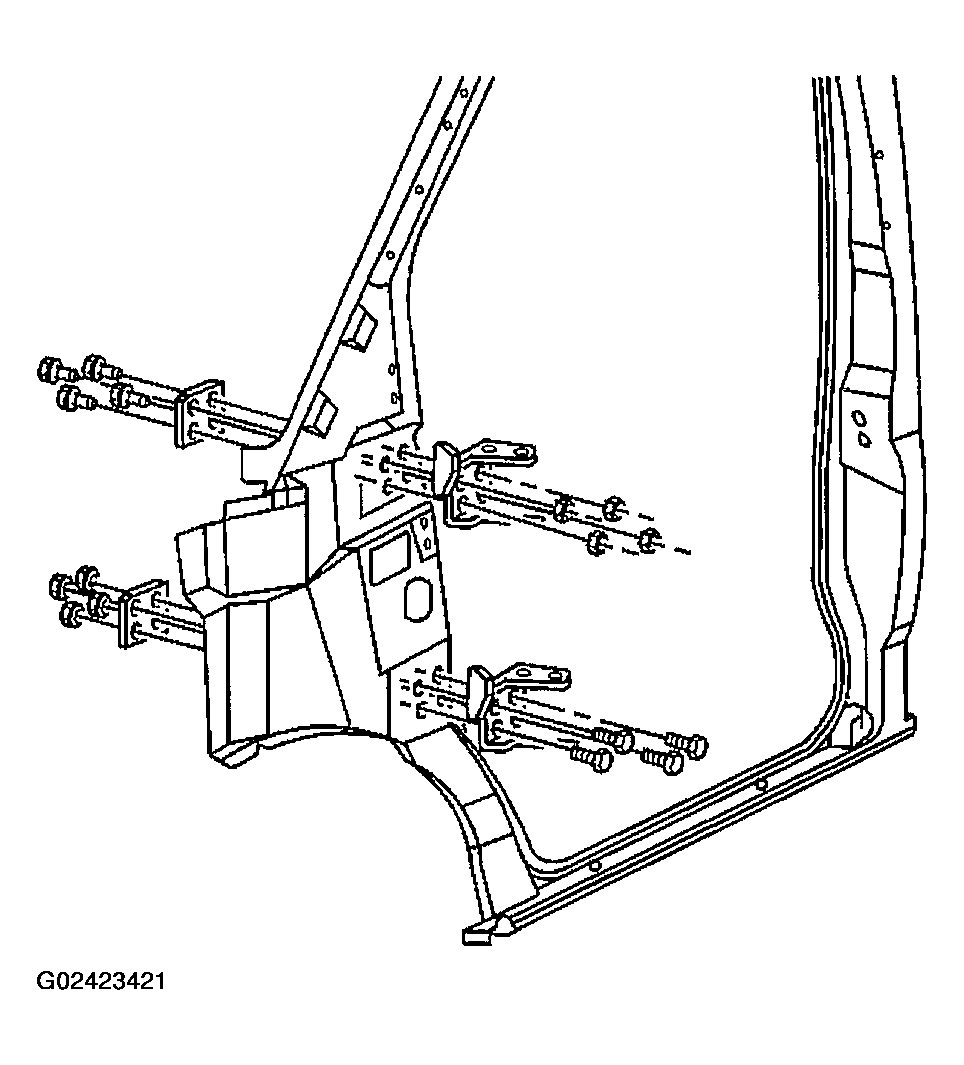

    Fig 2: Installing Hinge To Body Pillar
    G02423421Courtesy of GENERAL MOTORS CORP.
  8. Apply the sealer around the hinges.
  9. Paint the hinge assembly.
  10. Install the door to the vehicle. Refer to Door Replacement - Left Rear  or Door Replacement - Right Rear  .

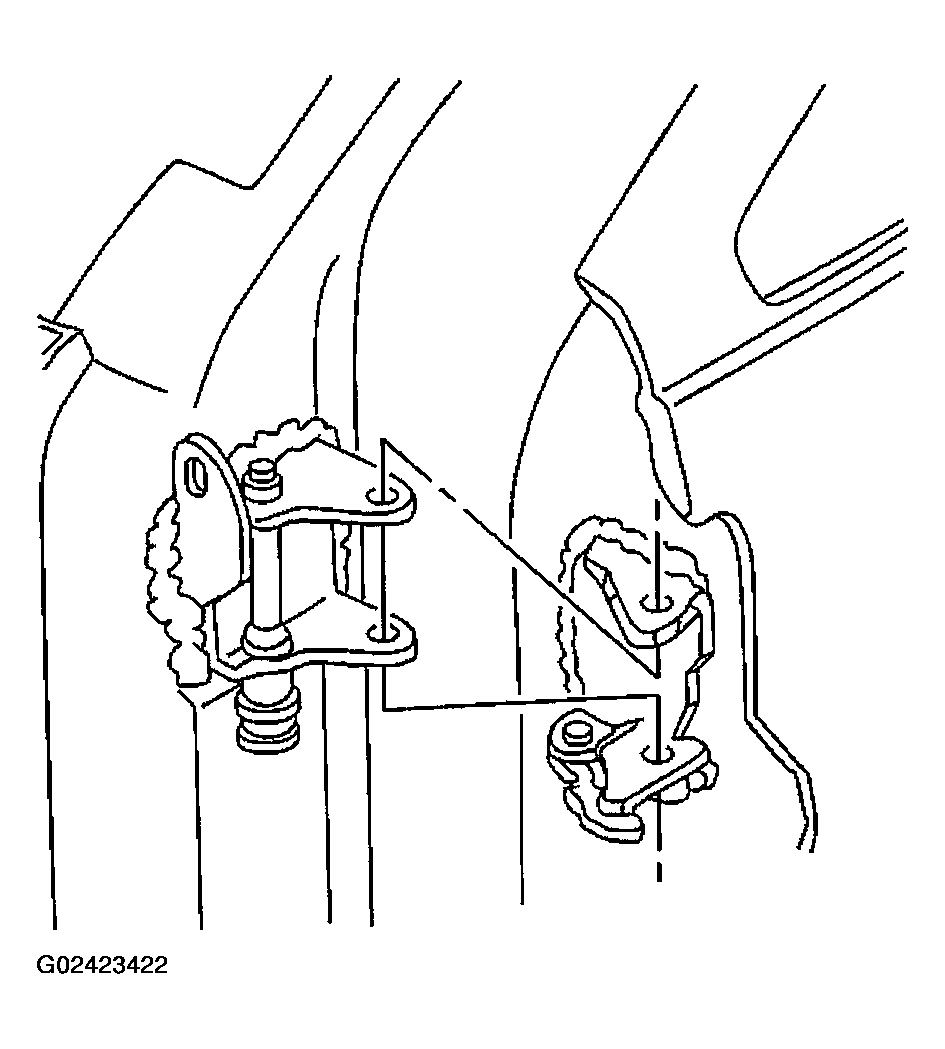

    Fig 3: Applying Sealer Around Hinges
    G02423422Courtesy of GENERAL MOTORS CORP.
