Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 60 DOOR) .
  2. Remove the lock rods from the lock.
  3. Remove the nuts from the right side rear door outside door handle and license pocket assembly.
  4. Remove the right side rear door outside door handle and license pocket assembly, which includes the anti-theft shield, from the right rear door.

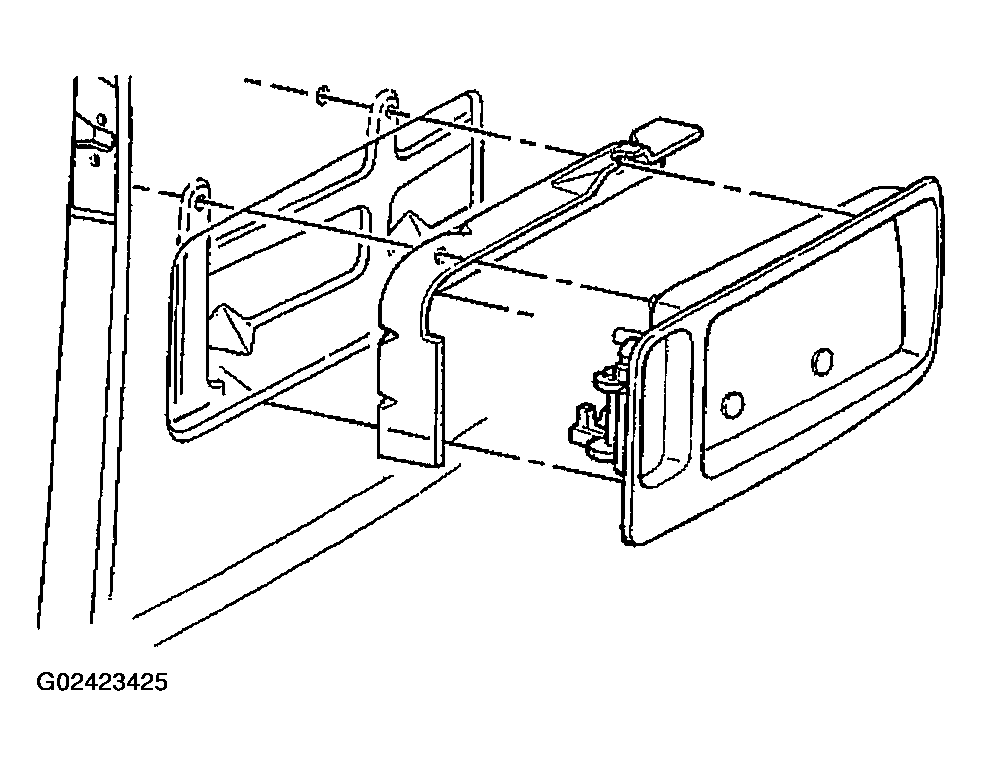

    Fig 1: Removing Rear Door Outside Handle & License Pocket
    G02423425Courtesy of GENERAL MOTORS CORP.
