Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 60 DOOR) .
  2. Remove the rivet (4) at the rear edge of the rear door inside handle.
  3. Slide the rear door inside handle forward.
  4. Remove the rear door inside handle from the right rear door.
  5. Remove the lock rods (3) from the rear door inside handle.
  6. Remove the rear door inside handle from the right rear door.

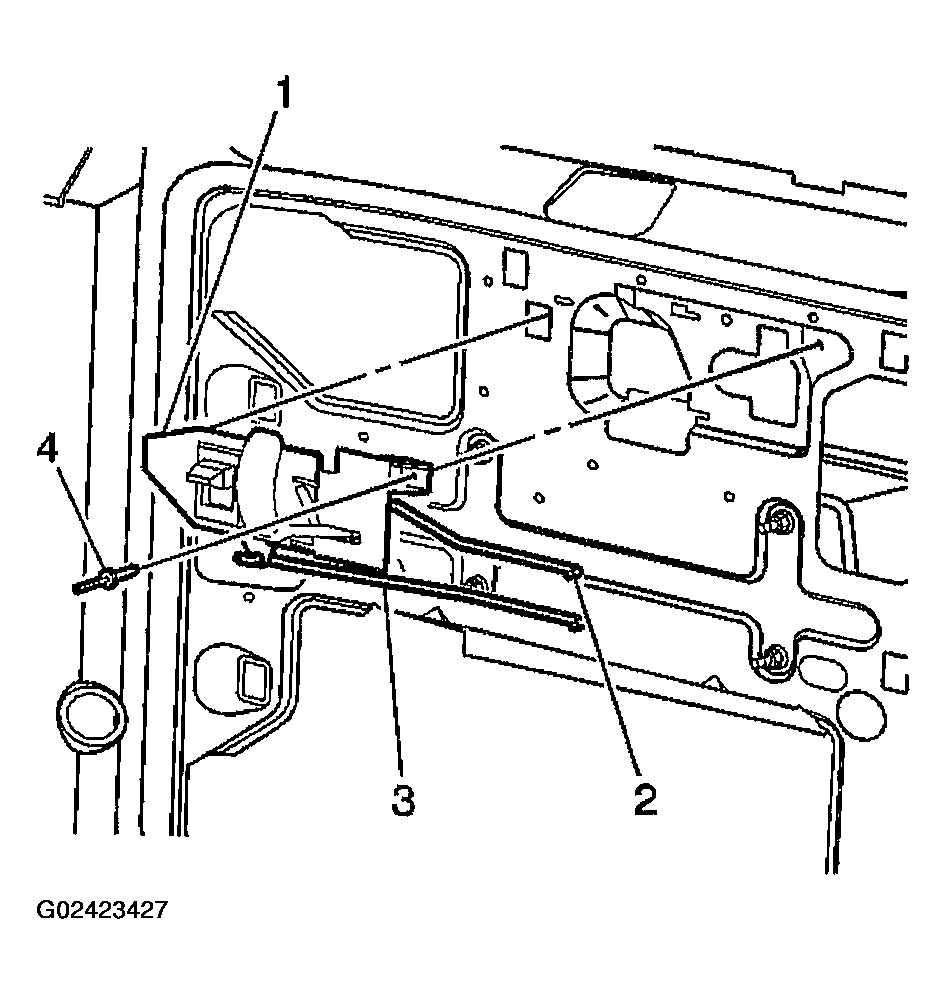

    Fig 1: Removing Rear Door Inside Handle
    G02423427Courtesy of GENERAL MOTORS CORP.
